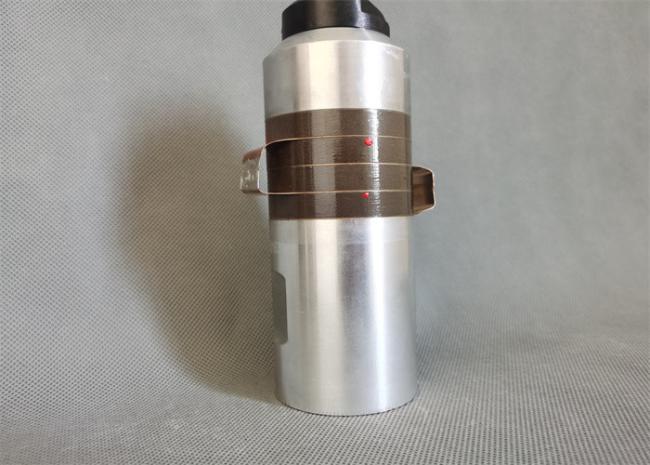

2200 Watt Ultrasound Transducer With Grey Ceramics 15Khz
15Khz 2200w Ultrasound Ceramics Transducer with Grey Ceramics
Description:
The transducer consists of a housing, a matching layer, a piezoceramic disk transducer, a backing, an extraction cable, and a Cymbal array receiver. The piezoelectric ceramic disk transducer is made of PZT-5 piezoelectric material with polarization direction polarization. The Cymbal array receiver consists of 8 to 16 Cymbal transducers, two metal rings and rubber gaskets. The working distance of the invention is greater than 35 m, the frequency bandwidth reaches 10 kHz, and the long-distance target moving at high speed can be detected.
An electrostrictive transducer consisting of one or more disks of piezoelectric material sandwiched between two metal sections.
The entire assembly is resonant at a predetermined frequency, and its length is acoustically equal to one-half wavelength at the applied frequency.
Specifications:
| Model | QR-6015-4BZG |
| Frequency | 15 khz |
| Output power | 2200 watt |
| Joint bolt | M20*1.5 |
| Ceramic disc Diameter | 60mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 10-12nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
Parameters:
|
Item No.
|
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Capacitance |
Input power (W)
|
||
| Yellow | Grey | Black | |||||
| 6015-4BZ-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 6015-4BZ-LR | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 6015-4BZ-RS | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 7015-4BZ-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
| 6015-4BD-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | / | 2600 |
| 6015-6BD-BZ | M16 *1 | 60 | 6 | 19000-20500 | / | 23000-25000 | 3600 |
| 7015-4BD-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
| 6015-4BZ-LS | M16 *1 | 60 | 8 | 18000-20000 | 20000-22000 | / | 4200 |
| 4515-4YZ-SS | M16 *1 | 45 | 8 | / | / | 25000-27000 | 2400 |
| 4515-4JZ-SS | M16 *1 | 45 | 8 | 19000-21000 | / | / | 2800 |
| 5015-4BZ-SZ | M16 *1 | 50 | 8 | 22000-24000 | / | / | 3600 |
| 5020-4CZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4BZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5520-4BZ-BJ | 3/8-24UNF | 55 | 4 | 10500-11500 | / | / | 1800 |
| 5020-4BZ-BZ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4HZ-BJ | 3/8-24UNF | 50 | 4 | / | / | 11000-12000 | 1500 |
| 3820-4BZ-SS | 3/8-24UNF | 38 | 8 | 13000-14500 | / | / | 1800 |
| 5020-4BZ-LS | 1/2-20UNF | 50 | 8 | 23000-25000 | 26000-28000 | / | 2800 |
| 3028-2BZ-BT | / | 30 | 2 | 2800-3300 | 3300-3800 | / | 400 |
| 3828-4BZ-BJ | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
| 3828-4BZ-BJL | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
| 3828-2BZ-BJL | M8*1 | 38 | 2 | 3700-4200 | / | / | 500 |
| 3030-4BZ-SJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3030-4BZ-LJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3030-4BZ-BJ | M8 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3535-4BD-II | M8 | 35 | 4 | 6600-7400 | / | 9200-10200 | 800 |
| 3035-4BZ-BJL | M8 | 30 | 4 | 5500-6200 | / | / | 700 |
| 3040-4BZ-BJ | M8 | 30 | 4 | 5100-5800 | / | 6500-7500 | 500 |
| 1560-2BZ-BJ | / | 15 | 2 | / | / | 700-850 | 100 |
| 1070-2BZ-BJ | / | 10 | 2 | 700-800 | / | / | 100 |
