Industrial Air Cooled Chiller 20HP to 50HP for Extruder Blower Injection Moulding with R22/R404A Refrigerant
20HP to 50HP Industrial air cooled chiller for Extruder Blower Injection Moulding
| parts | 20HP | |
| model | quantity | |
| Compressor (10HP * 2) | YH307 | 2 |
| Channel steel frame | 1 | |
| Air condenser (20HP) | 240m² | 1 |
| Freon | 1 | |
| Reservoir | 10HP | 2 |
| Filter (kubao) | 165S | 2 |
| Solenoid valve | SV78-5 | 2 |
| Pressure controller (kubao) | P830E | 2 |
| High voltage meter (domestic) | Oil gauge | 2 |
| Low voltage meter (domestic) | Oil gauge | 2 |
| Surface plate (two holes) | 1 | |
| Control box | For chiller, including 1 water pump control | 1 |
| Water flow switch | 1 | |
| Expansion valve | TGEX11 | 2 |
| Plate heat exchanger | ZL95-(30+30) | 1 |
| Water pump | Chlf12-20-1.2kw flow: 12m3, lift: 19.5m, motor diameter: 1.2kW (50, 50) | 1 |
| The Conduit | 1 | |
| parts | 25HP | |
| model | quantity | |
| Compressor (25HP) | ZB150 | 1 |
| Channel steel frame | 1 | |
| Air condenser () | 300m² | 1 |
| electric machinery | 600Suction | 3 |
| Freon | 1 | |
| Reservoir | 30HP | 1 |
| Filter (Danfoss) | 307S | 1 |
| Solenoid valve | EVR10 | 1 |
| Pressure controller (Danfoss) | KP15 | 1 |
| High voltage meter (domestic) | Oil gauge | 1 |
| Low voltage meter (domestic) | Oil gauge | 1 |
| Surface plate (two holes) | 1 | |
| Control box | For chiller, including 1 water pump control | 1 |
| Water flow switch | 1 | |
| Expansion valve | 1 | |
| evaporator | Plate heat exchanger or water tank or shell and tube type | 1 |
| Water pump | Chl16-20-2.2kw flow 16m3 Lift 21.7M caliber (inlet 50, outlet 50) Motor 2.2kw |
1 |
| parts | 30HP | |
| model | quantity | |
| Compressor (30HP) | 4VG30.2 | 1 |
| Channel steel frame | 1 | |
| Air condenser | 400m² | 1 |
| electric machinery | 600Suction | 4 |
| Freon | 1 | |
| Reservoir | 30HP | 1 |
| Filter (kub) | 307S | 1 |
| Solenoid valve | SV98-7 | 1 |
| Pressure controller (kub) | P830E | 1 |
| High voltage meter (domestic) | Oil gauge | 1 |
| Low voltage meter (domestic) | Oil gauge | 1 |
| Surface plate (two holes) | 1 | |
| Control box | For chiller, including 1 water pump control | 1 |
| Water flow switch | 1 | |
| Expansion valve | 1 | |
| evaporator | Plate type, shell and tube type, water tank type | 1 |
| Water pump | Chl16-20-2.2kw flow 16m3 Lift 21.7M, caliber (inlet 50, outlet 50) Motor 2.2kw |
1 |
| parts | 40HP | |
| model | quantity | |
| Compressor (40hp) | 6WG40.2 | 1 |
| Channel steel frame | 1 | |
| Air condenser () | 480m² | 1 |
| electric machinery | 630 | 4 |
| Freon | 1 | |
| Reservoir | 30rise | 1 |
| Filter () | 307S | 1 |
| Solenoid valve | SV98-9 | 1 |
| Pressure controller () | P830E | 1 |
| High voltage meter (domestic) | Oil gauge | 1 |
| Low voltage meter (domestic) | Oil gauge | 1 |
| Surface plate (two holes) | 1 | |
| Control box | For chiller, including 1 water pump control | 1 |
| Water flow switch | 1 | |
| Expansion valve | TGEX30 | 1 |
| evaporator | Plate type, shell and tube type, water tank type | 1 |
| Water pump | Chl20-30-4kw, flow 20m3, lift 34m, motor 4kw diameter (50,50) | 1 |
| parts | 50HP | |
| model | quantity | |
| Compressor (50HP) | 6WG50.2 | 1 |
| Channel steel frame | 1 | |
| Air condenser | 530m² | 1 |
| electric machinery | 630 | 5 |
| Freon | 1 | |
| Reservoir | 40L | 1 |
| Filter (kub) | 489+D48 | 1 |
| Solenoid valve | 28 | 1 |
| Pressure controller (kub) | P830E | 1 |
| High voltage meter (domestic) | Oil gauge | 1 |
| Low voltage meter (domestic) | Oil gauge | 1 |
| Surface plate (two holes) | 1 | |
| Control box | For chiller, including 1 water pump control | 1 |
| Water flow switch | 1 | |
| Expansion valve | TRAE50 | 1 |
| evaporator | Plate type, shell and tube type, water tank type | 1 |
| Water pump | Cdl32-20-2-3kw vertical multistage centrifugal pump |
1
|
Q1: Are you a manufacturer or trading company?

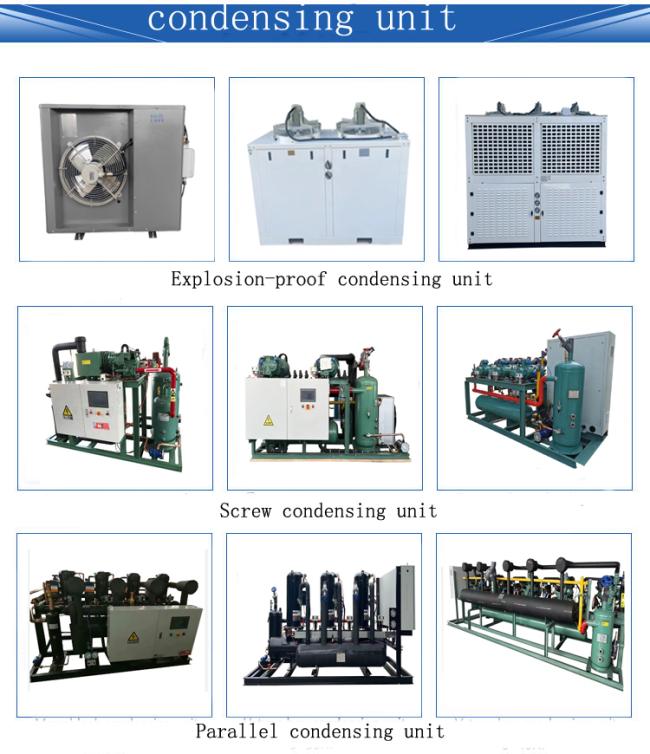

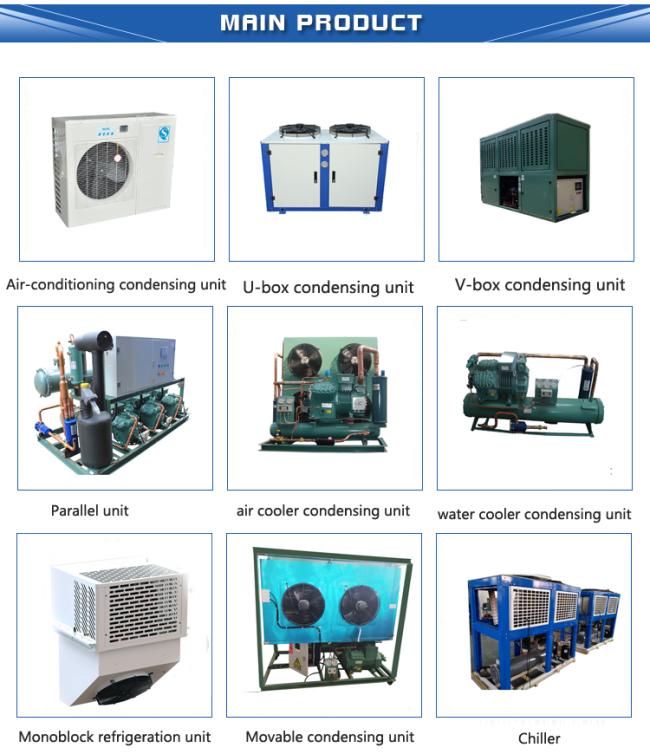

A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.
Q2: What about the shipping methods?
A2: By express/By air/By sea.
Q3: What about the payment methods &payment terms
A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.
Q4: What's your delivery time?Where is the loading port?
A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china according your requirement.
Q5:Can I have a sample first ?
A5:You have to pay sample cost.
Q6: How do you ship the goods and how long does it take arrive?
A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery.
The delivery time is according to the way of shipping.
A. Individuation & Customization
Refrigeration industry, cold storage engineering;
Agriculture,food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period.
If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
