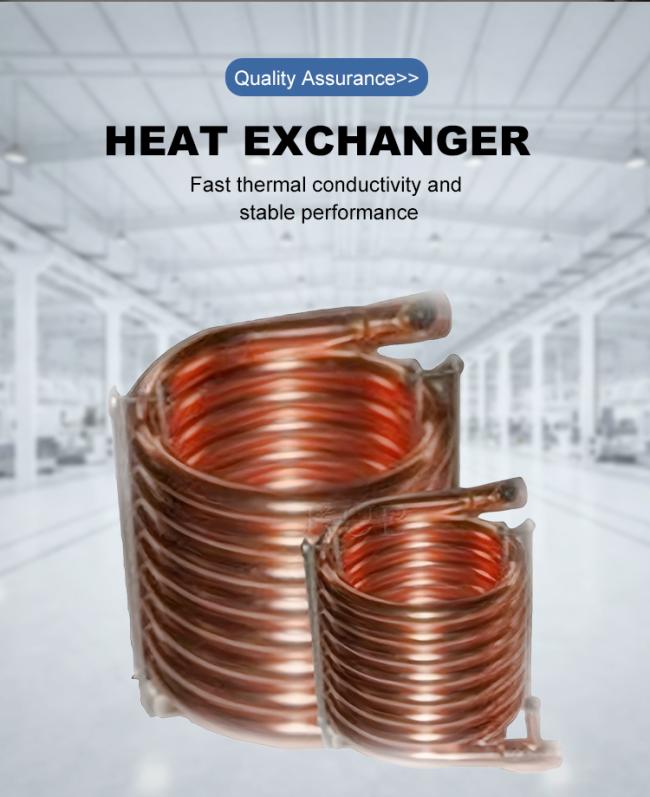

Hydraulic Food Grade Copper Coil Heat Exchanger for Cabinet
Price:
$190-200
MOQ:
1
Delivery Time:
Negotiable
Brand:
KUB
Product Description
Product Description

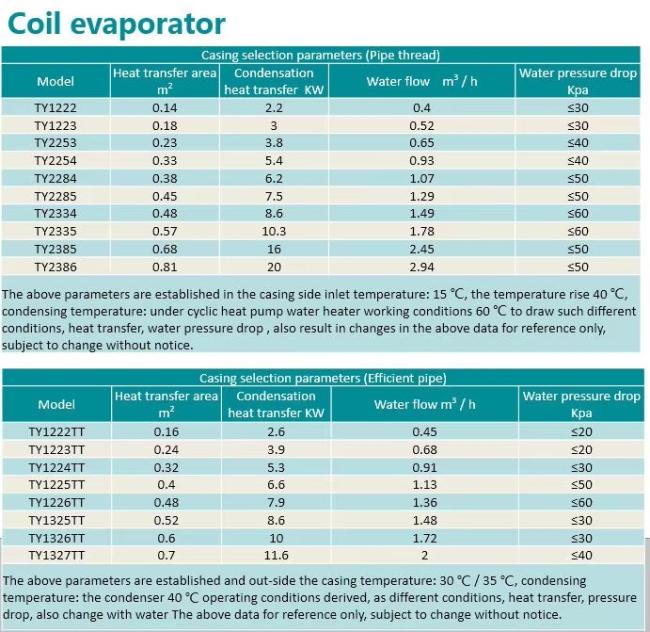

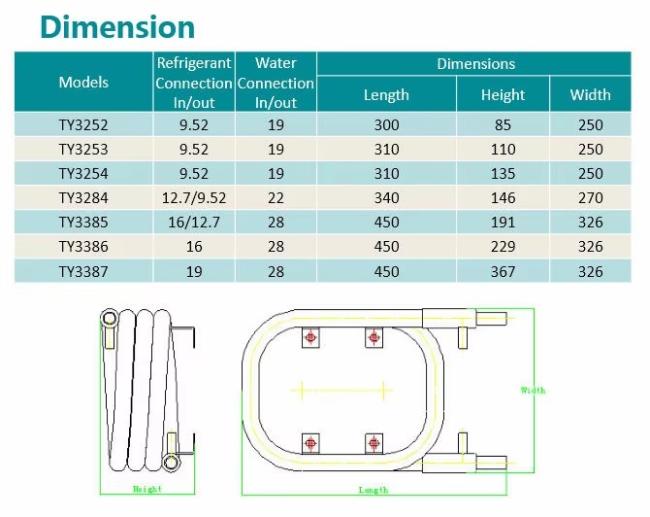

Model | TY2253 |
Water pressure drop( kpa) | ≤40 |
Heat transfer area | 0.23 |
condensation heat transfer(KW) | 3.8 |
1. Before the factory subjected to rigorous testing tightness, and sealed with a fluorine 0.05Mpa nitrogen, please cut refrigerant connecting pipe when assembling the machine, be deflated to detect seal.
2. Ensure the integrity of the casing of the main structure, to make protective measures making every pipe connections to prevent damage to the original way of welding weld quality.
3. Please bushing bracket and body protection equipment to be well fastened, fixed and make the necessary connection pipe insulation measures.
4. To fully enhance the efficient and safe operation of the product and the heat transfer performance of the machine, select high-quality performance peripheral configuration, and provide good quality of cooling water and refrigerant to ensure effective circulation.
5. Suitable for R12, R22, R407C, R410A refrigerant, such as maximum working pressure.
Water side: 400PSI, fluorine side: 500PSI
2. Ensure the integrity of the casing of the main structure, to make protective measures making every pipe connections to prevent damage to the original way of welding weld quality.
3. Please bushing bracket and body protection equipment to be well fastened, fixed and make the necessary connection pipe insulation measures.
4. To fully enhance the efficient and safe operation of the product and the heat transfer performance of the machine, select high-quality performance peripheral configuration, and provide good quality of cooling water and refrigerant to ensure effective circulation.
5. Suitable for R12, R22, R407C, R410A refrigerant, such as maximum working pressure.
Water side: 400PSI, fluorine side: 500PSI
Recommend Products
Company Profile
FAQ
Q1: Are you a manufacturer or trading company?
A1.This compressor we are agent , But we are factories that produce condensing units, chillers.Evaporator
Q2: What about the shipping methods?
A2: By express/By airBy sea.
Q3: What about the payment methods &payment terms?
A3: We accept T/T ,Paypal, western Union, Cash and etc After 30% deposit,and 70%balance before the shipmer
Q4: What's your delivery time?Where is the loading port?
A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china accordingrequirement.
Q5:Can l have a sample first ?
A5:You have to pay sample cost.
Q6: How do you ship the goods and how long does it take arrive?
A6: We usualy ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea. 5-7air or express delivery.
The delivery time is according to the way of shipping.
