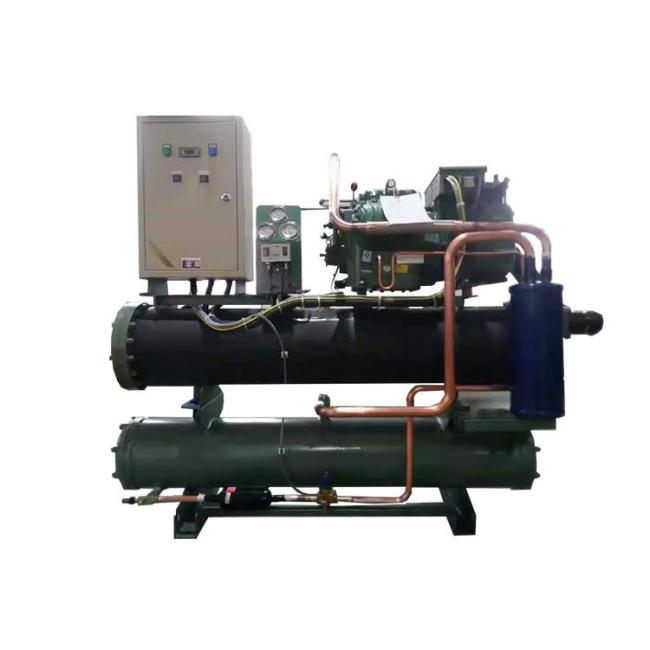

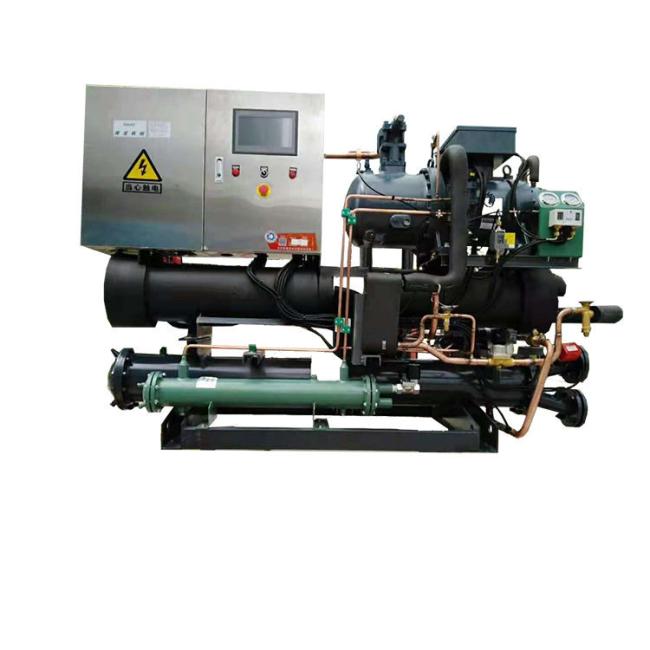

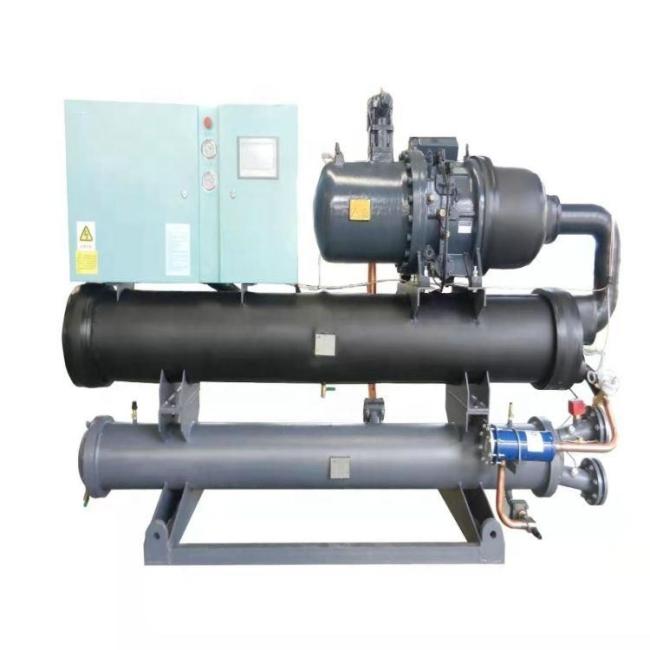

Industrial Water Cooled Screw Chiller Low Temperature Refrigerator 30 - 250 Hp

Price Negotiable

Price: Consult

MOQ: 1Piece

Delivery Time: 20days

Brand: KUB

Product Description

30HP to 250HP Screw compressor water-cooled chiller price

KUB screw water cooling unit
The following calibration conditions: chilled water inlet temperature 12°C, outlet water temperature 7°C, cooling water inlet temperature 30°C;
Model			LSLG-
Model			30WH	40WH	50WH	60WH	70WH	80WH	90WH
Cooling Capacity		KW	105	140	174	232	267	326	349
Power supply			3way380V50Hz
Compressor	Input power	KW	24.4	32.1	40.3	53.7	58.5	70.5	76.3
	Operating current	A	41	54	68	90	98	119	128
	Capacity control	-	0-66-100%(33%is start up)			0-50-75-100%(25%is start up)
	Start method		Y-Δstart up
Refrigerant			R22
Evaporator	Water pipe connection	mm	DN50Flg		DN65Flg	DN80Flg			DN100Flg
	Water flow	m³/h	18	24	30	40	46	56	60
	Water pressure drop	kPa	37	37	39	42	42	45	45
Condensor	Water pipe connection	mm	DN50Flg		DN65Flg	DN80Flg			DN100Flg
	Water flow	m³/h	22	30	37	49	56	68	73
	Water pressure drop	kPa	38	38	39	43	44	46	46
Dimension	L	mm	2400	2400	2600	2850	3000	3000	3050
	W	mm	900	900	900	900	1100	1100	1100
	H	mm	1350	1350	1450	1450	1550	1670	1770
The following calibration conditions: chilled water inlet temperature 12°C, outlet water temperature 7°C, cooling water inlet temperature 30°C;
Model			LSLG-
Model			100WH	110WH	120WH	130WH	140WH	160WH	180WH
Cooling Capacity		KW	384	419	488	523	570	663	732
Power supply			3P-380V-50Hz
Compressor	Input power	KW	83.3	92.6	107.5	113.5	123	141.5	157.4
	Operating current	A	140	156	181	191	207	238	265
	Capacity control	-	0-50-75-100%(25%is start up)
	Start method		Y-Δstart up
Refrigerant			R22
Evaporator	Water pipe connection	mm	DN100Flg		DN125Flg				DN150Flg
	Water flow	m³/h	66	72	84	90	98	114	126
	Water pressure drop	kPa	46	48	48	49	49	52	55
Condensor	Water pipe connection	mm	DN100Flg		DN125Flg				DN150Flg
	Water flow	m³/h	80	88	102	109	119	138	153
	Water pressure drop	kPa	47	49	49	51	51	55	57
Dimension	L	mm	3105	3105	3105	3200	3200	3300	3300
	W	mm	1100	1100	1100	1100	1100	1100	1100
	H	mm	1770	1770	1770	1780	1780	1780	2050
KUB also provides you with 200WH, 220WH, 250WH and other models of this series of products
