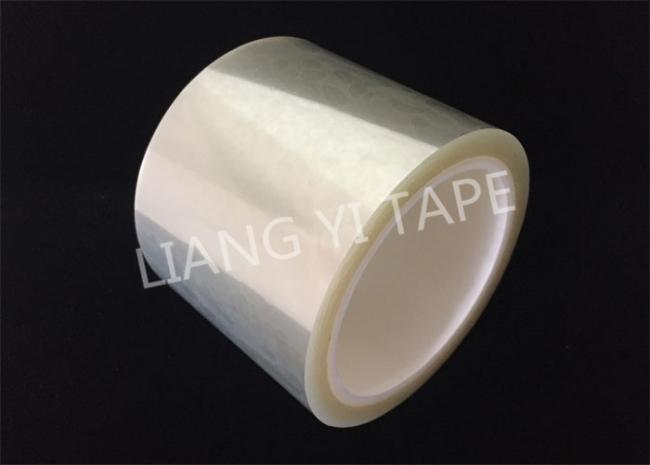

Transparent PET Silicone Tape 155℃ High Temp Masking for Soldering
The Transparent PET Silicone Tape is a high-performance masking solution engineered to withstand the rigorous thermal demands of modern electronics manufacturing and industrial finishing. Featuring a clear PET film backing combined with a residue-free silicone adhesive system, this tape maintains its structural integrity and adhesion at continuous operating temperatures of 155℃.
- High Temperature Resistance
- Excellent Electrical Insulation
- Chemical & Solvent Resistance
- Crystal Clear Transparency
| Total Thickness | mm | 0.055 ± 0.005 |
| Backing Thickness | mm | 0.038 |
| Adhesive Type | – | Silicone |
| Backing Material | – | PET Film |
| Color | – | Transparent |
| Elongation at Break | % | > 40 |
| Peel Adhesion | g/25mm | > 600 |
| Long-Term Temp Resistance | ℃ | 155 |
| Dielectric Breakdown Voltage | kV | > 5.0 |
| Chemical Resistance | – | Excellent |
- Wave Soldering & Solder Dip Maskin
- Conformal Coating Masking
- Powder Coating Curing Ovens
- Automotive Paint Baking
- Factory Direct: Guaranteed quality from the source.
- Competitive Pricing: Reasonable prices as a direct manufacturer.
- Reliable Service: Timely delivery & 24-hour issue response.
- UL and SGS certification; confirm to ROHS ,REACH;sumitomo insulation system; cosmolink insulation system.
Q: Is this tape specifically designed for wave soldering processes?
A: Yes. The 155℃ long-term rating and >5kV breakdown voltage make it an industry-standard choice for masking gold fingers and connectors during lead-free wave soldering.
Q: Does the tape shrink or curl when exposed to oven heat?
A: No. The stabilized PET backing resists shrinkage and edge lifting up to the rated 155℃, ensuring the masked area remains fully protected throughout the thermal cycle.
Q: Can this tape be used as an electrical insulator?
A: Yes. With a breakdown voltage exceeding 5kV, it provides reliable electrical isolation for components and circuitry during soldering and testing operations.
Q: Is the transparency necessary for industrial use?
A: Absolutely. The transparent PET film allows operators to visually align the tape precisely over small SMT pads, gold fingers, and registration marks, significantly reducing application errors.
Q: What is the recommended storage condition?
A: Store in a cool, dry place 23℃ and 65% relative humidity. Avoid direct sunlight and excessive heat to maintain adhesive properties for up to 6 months.
