192 Nm3/Hr Output Oxygen Making Machine Steel Reducing The Wear Of Valve

Unique Cycle Switching Process Of Oxygen Making Machine , Reducing The Wear Of Valve And Maintenance Cost

Working Principle Description:

The main components of oxygen production system include air compressor, cooler, buffer tank, switching valve, oxygen balance tank and adsorber with core function. After the dust particles are removed by the suction inlet filter and pressurized, the material enters the adsorber with adsorbent, and the water, carbon dioxide and a small amount of other gas components are adsorbed by the activated alumina at the bottom at the inlet of the adsorber, and then the nitrogen is adsorbed by the zeolite molecular sieve filled on the upper part of the activated alumina. The oxygen is a non adsorbed component, which is discharged to the oxygen balance tank as product gas from the top outlet of the adsorber. When the adsorber adsorbs to a certain extent, the adsorbent will reach the saturated state.

At this moment, it will be vented through the switching valve, and the adsorbed water, carbon dioxide, nitrogen and a small amount of other gas components will be discharged to the atmosphere, and the adsorbent will be regenerated. Oxygen production system is the process of continuous adsorption, desorption and stamping. These operations are automatically controlled by programmable logic controller and switching valve system.

Product Advantages:

● The PSA oxygen generator has unique cycle switching process of the system;

● Because of the unique process, the wear of the valve is reduced, the service life of the equipment is prolonged and the maintenance cost is reduced;

● Compressed air purification components have long service life, easy replacement and maintenance;

● The oxygen production time is fast, and the qualified oxygen can be produced within 30 minutes and oxygen purity > 93% can be achieved by pressure swing adsorption;

● Simple operation, stable operation, high degree of automation, can realize unmanned operation.

Application fields:

PSA oxygen generators are widely used in different areas, including medical, plateau, environmental protection, combustion-supporting, cultivation, laboratory, chemical industry, electron, medicine, food, marine, aluminium soldering, lithium cell, heat treatment, laser cutting and etc.

Technical parameters:

● Oxygen delivery ≤192Nm3/hr;

● Purity 93%±3

● Pressure 0.4~1.0 Mpa

● Atmospheric dew point ≤－40℃

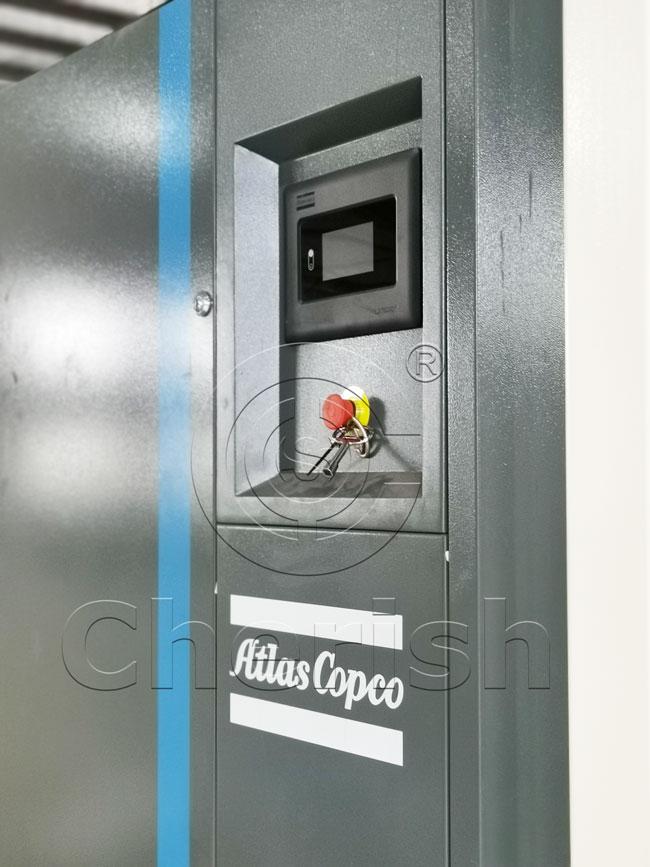

Product picture:
