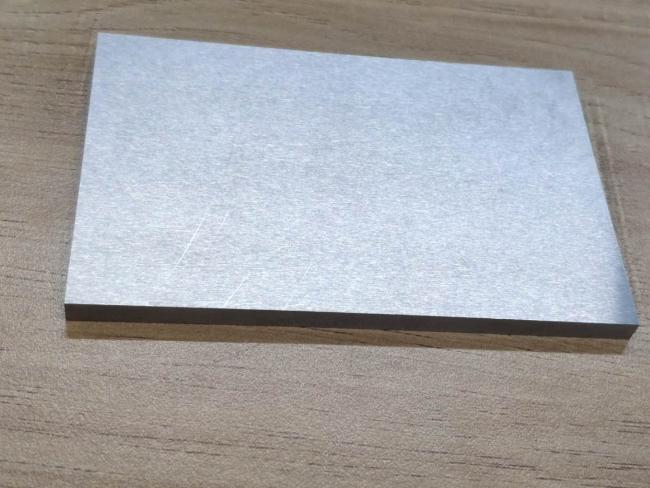

YG8 Tungsten Carbide Sheet , Tungsten Carbide Wear Plates For Wood Cutter

YG8 Good Quality Tungsten Carbide Sheet

Tungsten carbide plates, have high hardness, wear-resistance, and resistance to bending. They're widely used in cutting tool, crusher, wear parts, moulding base and other fields. We provide various size, such 20*20mm,50*50mm, 100*100mm, 200*200mm, and your customized sizes are welcomed.

Tungsten carbide plate description

1, the purity of more than 99.95% of raw materials, impurities, less physical properties of the plate more stable;

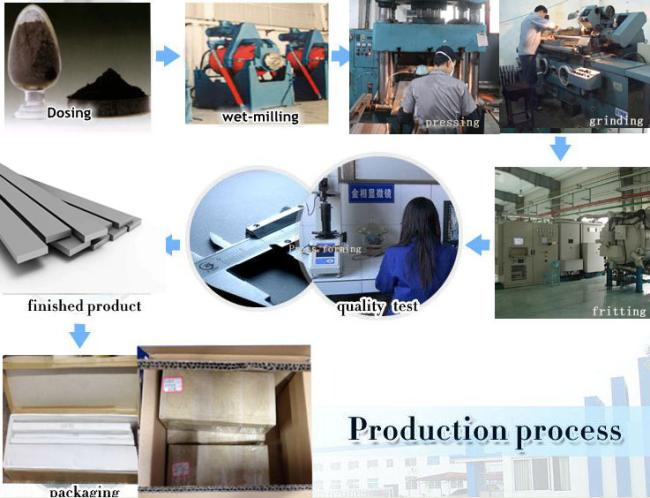

2, the use of spray drying technology, the material in the fully sealed conditions using high purity nitrogen protection, effectively reduce the mixing process in the preparation of the possibility of oxygen, better purity, the material is not easy to dirty;

3, the density of the plate uniform: 300Mpa isostatic pressing machine to suppress, effectively prevent the production of defects, the plate density is more uniform;

Tungsten carbide plate Characteristics

1, the tungsten carbide plate with fine compactness, strength and hardness indicators are in line with the standard: the use of low-pressure sintering technology, so that the pores within the plate to be effectively eliminated, the quality is more stable.

2, the use of cryogenic treatment technology, so that the internal microstructure of the plate to be improved, the internal stress can be greatly reduced, effectively avoid the plate in the cutting process of the possibility of cracks generated;

Tungsten carbide plate application

1, suitable for the production of cast iron roll and high nickel chrome roll dressing knife;

2, for the production of discharge plate, stamping die, punch, electronic progressive die and other stamping die, etc.

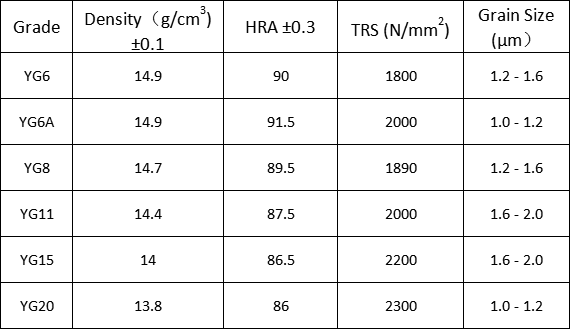

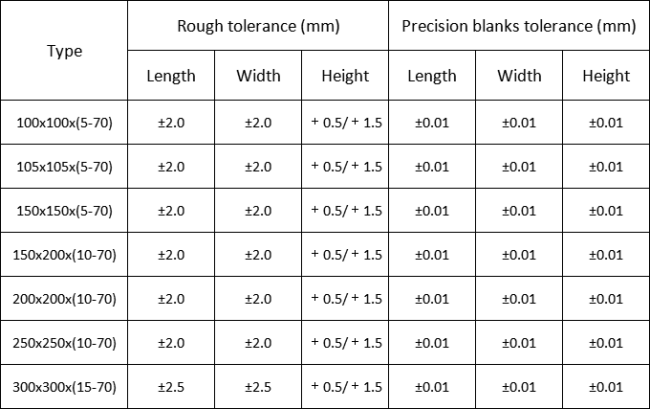

Tungsten carbide plate grade and dimensions
