High Lift Head Stainless Steel Submersible Well Pump 3 Phase 50hz 60hz Frequency
High Lift Head Stainless Steel Submersible Well Pump 3 Phase 50hz 60hz Frequency

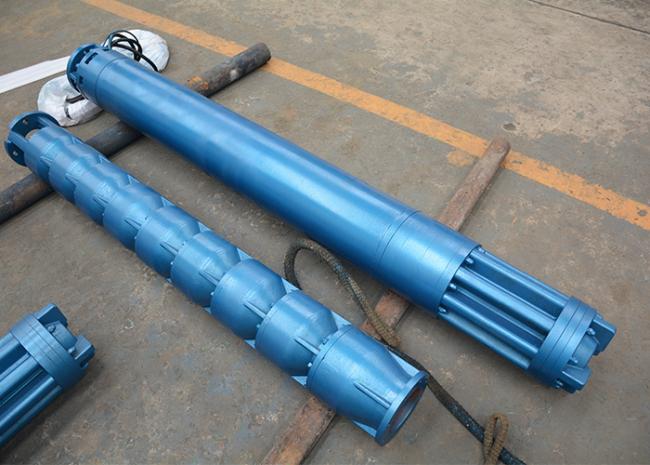

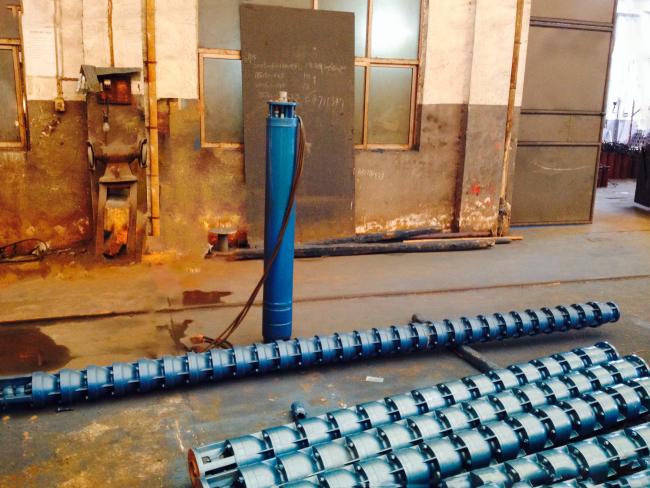

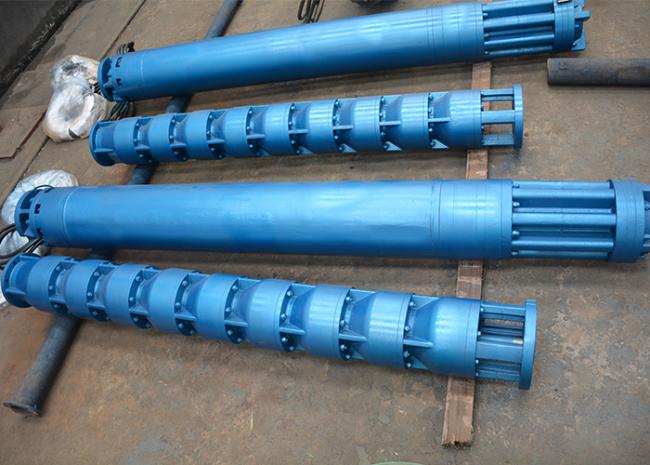

Specific about high lift submersible pump
Bore well high lift water submersible pump are built with different materials of construction together with extremely hard wearing bushes, which makes this pump highly durable, which are precisely designed by our highly experienced team of engineers using the advanced technology system to meet the international quality standard.
Overview about high lift submersible pump
1.Filled water into motor cavity, tighten and pouring water, vent plug, otherwise it can’t be used.
2.In the electric condition, on land, the Commissioning time(pilot running) time can’t be more than 1 seconds.
3.The electric submersible pump can’t be used when lying or tilt.
4.The pump must be completely submerged into water, but the submerged depth no more than 70 m
5. Wire and cable connection should be operated as rules (the following)
Application of high lift submersible pump
1. Deliver deep well water
2. Irrigation
3. Drink for life
4. Water drawing system in hills and mountain areas.
5. Drainage of stagnant water in low-lying areas.
250 m 310m h 500 submersible pump parameters:
| Pump diameter | Model | Power | Flow range | Head range | |
| Inch (") | QJ Series | kw | hp | m3/h | m |
| 7" | 175QJ10-255/18 | 15 | 20 | 9-11 | 245-265 |
| 8" | 200QJ20-243/18 | 25 | 34 | 18-22 | 206-280 |
| 8" | 200QJ20-256/19 | 30 | 40 | 18-22 | 218-295 |
| 8" | 250QJ20-270/20 | 30 | 40 | 18-22 | 230-310 |
| 8" | 200QJ20-283/21 | 30 | 40 | 18-22 | 240-325 |
| 8" | 200QJ20-297/22 | 37 | 50 | 18-22 | 252-341 |
| 8" | 200QJ20-310/23 | 37 | 50 | 18-22 | 265-356 |
| 8" | 200QJ20-324/24 | 37 | 50 | 18-22 | 275-372 |
| 8" | 200QJ20-338/25 | 37 | 50 | 18-22 | 287-388 |
| 8" | 200QJ20-351/26 | 45 | 60 | 18-22 | 298-403 |
| 8" | 200QJ20-365/27 | 45 | 60 | 18-22 | 310-420 |
| 8" | 200QJ20-378/28 | 45 | 60 | 18-22 | 320-435 |
| 8" | 200QJ25-224/16 | 30 | 40 | 23-27 | 190-258 |
| 8" | 200QJ25-235/17 | 30 | 40 | 23-27 | 200-275 |
| 8" | 200QJ25-252/18 | 30 | 40 | 23-27 | 210-290 |
| 8" | 200QJ25-266/19 | 37 | 50 | 23-27 | 220-305 |
| 8" | 200QJ25-280/20 | 37 | 50 | 23-27 | 230-322 |
| 8" | 200QJ32-224/14 | 37 | 50 | 29-35 | 190-258 |
| 8" | 200QJ32-240/15 | 37 | 50 | 29-35 | 204-276 |
| 8" | 200Q32-247/19 | 45 | 60 | 29-35 | 210-284 |
| 8" | 200QJ32-272/17 | 45 | 60 | 29-35 | 232-313 |
| 10" | 250QJ50-240/12 | 55 | 75 | 46-54 | 204-276 |
| 10" | 250QJ50-260/13 | 63 | 86 | 46-54 | 230-290 |
| 10" | 250QJ50-320/16 | 75 | 100 | 46-54 | 272-368 |
| 10" | 250QJ80-240/12 | 90 | 122 | 74-86 | 204-276 |
| 10" | 250QJ80-260/13 | 100 | 136 | 74-86 | 220-280 |
| 10" | 250QJ80-280/14 | 110 | 150 | 74-86 | 235-325 |
It is one part of high lift submersible pump parameters. If you would like to know more details, please feel free to send an inquiry. We will reply as soon as possible.
