1024*758 Thickness 6mm HDR 500 1060hPa Dental X Ray Machine
Dental Digital Intraoral X Ray Sensor Dental X Ray Machine Image System HDR 500 Sensor
Product instruction:

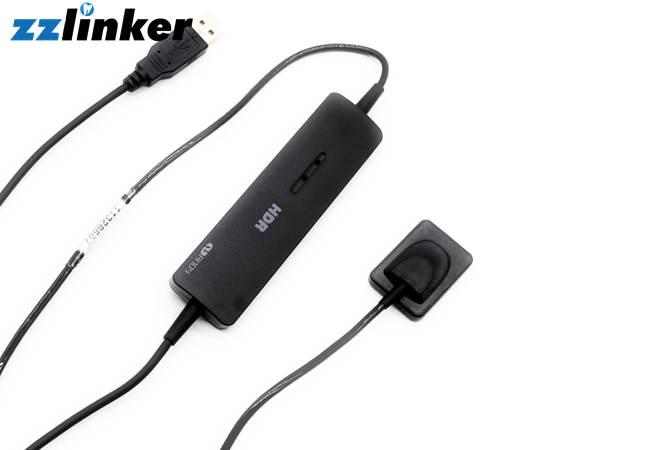

Dental digital x-ray imaging system is consisted of sensor, image controller, image capture system and connection cable (USB port) , connected with PC or notebook via USB cable. The power of controller and sensor is supplied by USB port, require no battery or power charge system. The whole equipment need to work together with imaging software.
The sensor active surface is flat including the size 1 and size 2.
u Size1, universal sensor---Use for regular procedures, both for children and adult .
u Size2 sensor---Use for bitewings procedures.
Feature of x ray sensor dental digital:
1.Multi-languages with 10 types.
2.Operation system: desk top & laptop (Windows 2000, XP, Win 7, Win 8,Win 10)
3.Twain driver: our RVG compatible with KODAK, SIRONA, SCHIC, etc.
4.Power :USB 2.0 interface
5.Excellent quality: our sensor material imported from Germany and Japan , best quality standards.
6.New APS CMOS sensor with long life time (400,000 times).
7.Warranty for 2 years
Operating conditions:
Environment Temperature : +10℃～+40℃
Environment relative humidity : ≤95%；
Air pressure : 860hPa～1060hPa；
Transport and Storage conditions:
| Environment Temperature | -25℃~+60℃ |
| Environment relative humidity | 10%~93%; |
| Air pressure | 860hPa~1060hPa |
Specification:

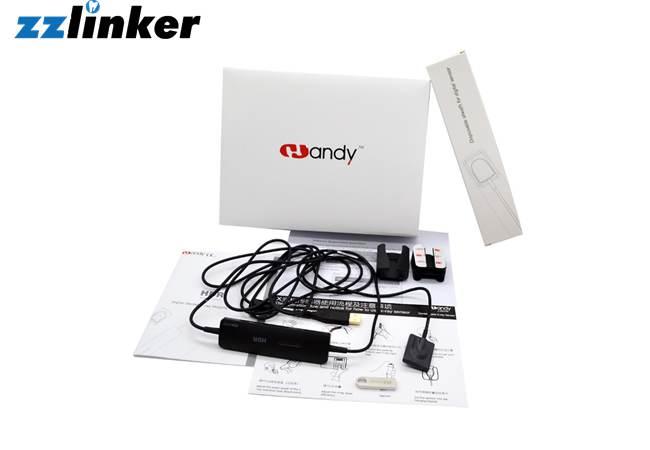

Packing List:
Safety Classifications:
Safety Type: Class-Ⅱ BF
Power: DC5V Maximum 600MA.Rate of Work: Max 1W
Degree of protection against ingress of water: IPX7
Non AP equipment, non APG equipment
Mode of operation: Continuous operation
Besides, we have some new items:X ray sensor, X ray unit and X ray scanner
