Intraoral Camera Teeth 1mA 70kv Dental X Ray Equipment
Falcon Dental X Ray Machine Dentistry Teeth Intraoral Camera Xray Machine
Specification:
Exposure time range:0.01-1.6sec
Maximum duty cycle:1:60
Maximum inherent filtration:1.6mm Al
Maximum output power:120W nominal at 60KV,2mA
Generator rating:2mA at 60KV±5%
Leakage technique factors:60KV,2mA,1.6sec
Technical specifications
Rechargeable Lithium Polymer battery:24V
Maximum battery charge:25.2V
Battery current at 2mA,60KV output:10A
Power supply:JBL7451250750100FJ,Bridge Power Corp.
Input:AC100-240V,50-60HZ 1.0A
Output:DC25.2V,0.75A
Cable length of DC output:1550mm
Cable length of AC input:1550mm
Cable length of remote controller:3000mm
| Power requirement | Battery Charger |
| Exposure Time | 0.1-1.6s |
| Kind of Power | Electric |
| After-sales service | Online Technical Support |
All the components of this product were originally imported to achieve an acceptable tolerance required for the digital controls and the machine. By doing this, product perform ance is more stable and reliable.
Using a Toshiba 0.3 micro-focus tube, the image is clearer and more delicate. This machine uses components from well established suppliers, allowing us to deliver to our customers a product of high quality.

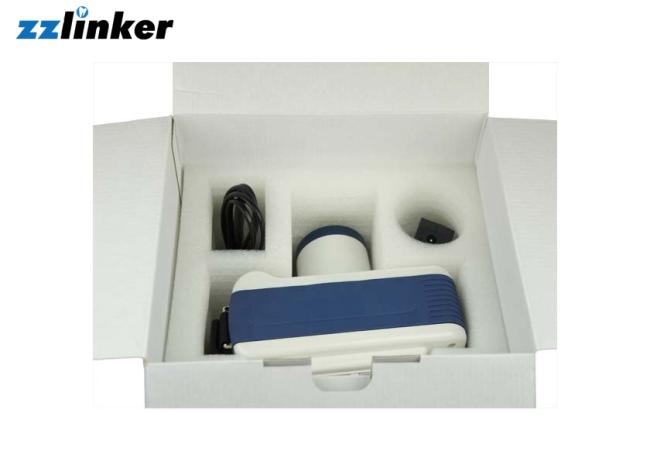

There are films included for testing purpose and all the consumables can be replaced by other similar products.
There are vacuum components and high-pressure parts inside of the machine,so for your safety and the maintenance of the machine,please do not open the machine. Service and maintenance should only be performed by a trained professional.
The tube head is equipped with excellent radiation-shield protection (except the radial mouth,and tests have shown that the radial index is zero. Safety is guaranteed.
Non-film inspection and storage can be realized when corresponding to a sensor.
Develop the Dental film
1. Picture the tooth following the right operating procedure of the X-ray Unit, then take the film out from the mouth.
2. Use a syringe to extract 4-5 ml imaging liquid
3. Transfuse the liquid into the bag, nip the both ends and sides of the bag with thumbs and first fingers(knead the film).
4. Open the end of the bag about ten minutes after transfusing the liquor into the bag
5. take the film out and put it into clear water and rinse it. Don’t wipe the surface of the film with fingers in case the image will be damaged.
6. Observe and diagnose after the film becomes dry.
