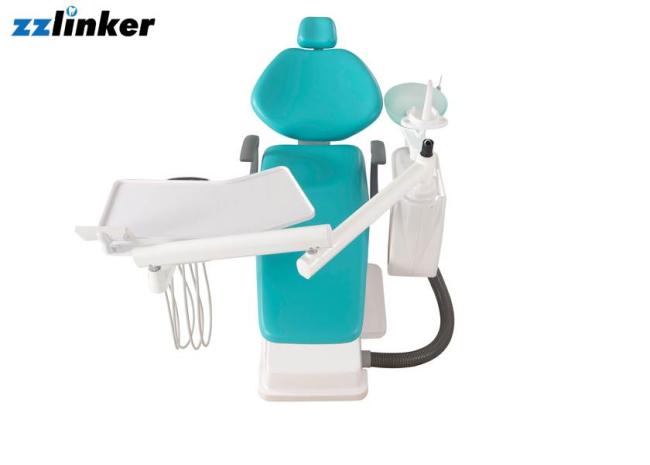

LK-A11 Double Arm 440mm Glass Spittoon Dental Chair Unit
LED Sensor Lamp Electricity LK-A11 Pro Dental Chair Unit with Glass Spittoon
Standard Accessories:
All controlled by the electric valve
DC Motor; Automatic thermostatic water supply
Handpiece tubing with standard fittings (3sets)
Three way syringe (one for hot, one for cold) (2sets)
Water suction and saliva ejector (with switch) (1set)
Powerful suction apparatus (1set each)
Easy cleaning and new design rotatable glass spittoon
Water purified system with bottle of built-in
Strong and weak two set operation light (1set)
X-film viewer
Spirit locks tight Equilibrium Device
Dental stool (1set)
Suitable for adult and children headrest

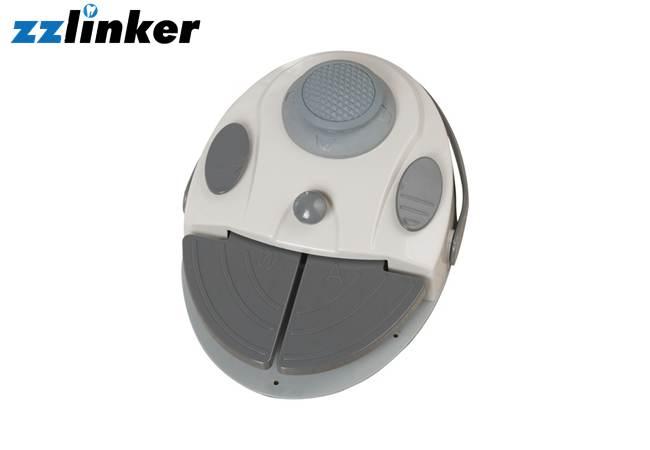

Foot pedal (1set)
Specifications:
| Supply Voltage | 110V 60Hz or 220V 50Hz |
| Air Pressure | ＞0.55Mpa |
| Water Pressure | 0.2Mpa-.04Mpa |
| Lowest position of chair | 440mm |
| Highest position of chair | 860mm |
| Chair-back highest | 5° |
| Chair-hack lowest | 85° |
Size and Package:
136*96*112cm (L*W*H)
20GP: 20pcs
40HQ: 42pcs
Technology Parameter:
Power supply: AC110V 60Hz or 220V 50Hz
Input air pressure:0.5MPa～0.8MPa
Input air Flow: ≥50L/min
Input water pressure: 0.2MPa～0.4MPa
Input power: 800W
Fuse specification: 5A,Ф5×20mm
High speed H.P. working pressure: 0.25MPa
Low speed H.P. working pressure: 0.35MPa
Transports and Stores:
This machine should transport and stores up under following condition
Ambient temperature range: -40℃～＋55℃
Relative humidity range: ≤93﹪
Atmospheric pressure range: 500 hPa～1060 hPa
Normal Work Movement:
Be to ensure that this machine regularity works , this the machine power supply and the environment technology demand as follows:
Power supply: Single phase 220V±12V 50 Hz±1 Hz
Gas source: Pressure ≥550 kPa Rate of flow ≥50L/min
Source of water: Water pressure 200～400 kPa
Ambient temperature range: + 5℃～+40℃
Relative humidity range: ≤80﹪
Atmospheric pressure range: 860 hPa～1060 hPa
