NSK PANA-MAX Kit High Low Speed Dental Air Turbine Handpiece
NSK PANA-MAX Kit High and Low Speed Dental Air Turbine Handpiece Made in Japan
Description:

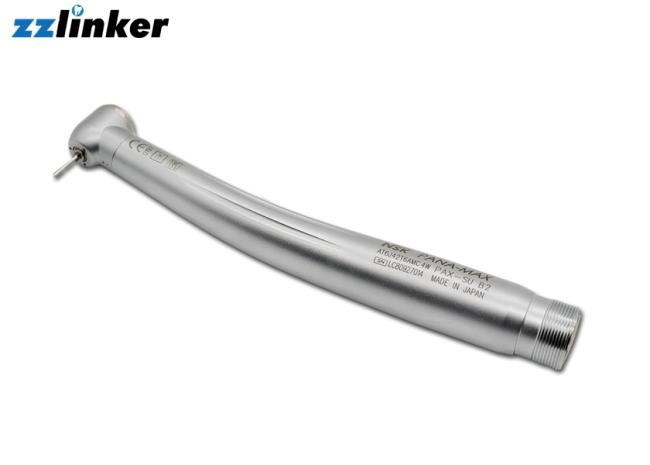

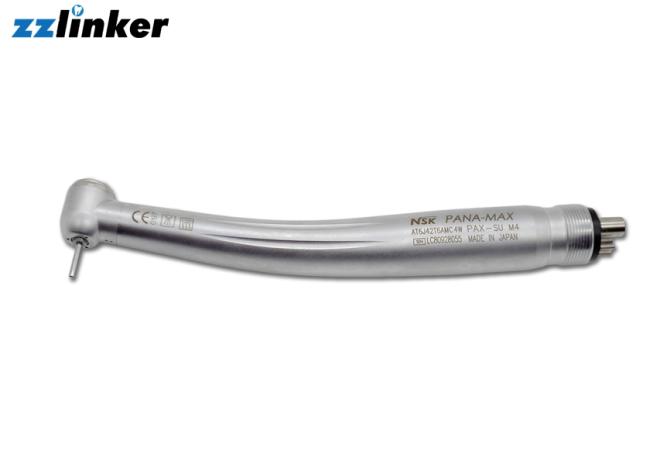

High Speed Handpiece:
Standard handpiece,push button ,clean head system,single water spray,4 holes and 2 holes optional,exposed rotor

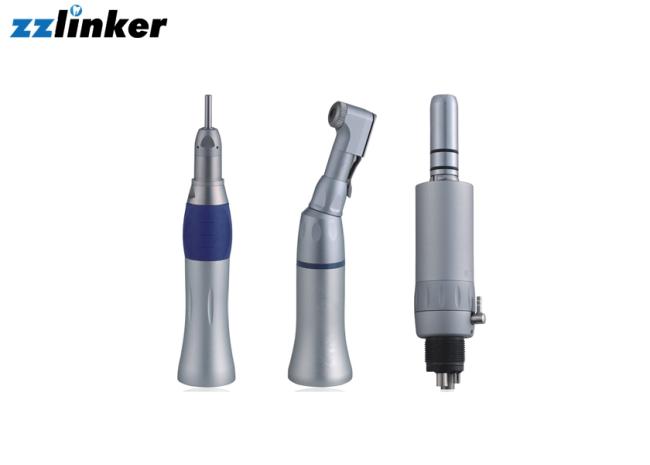

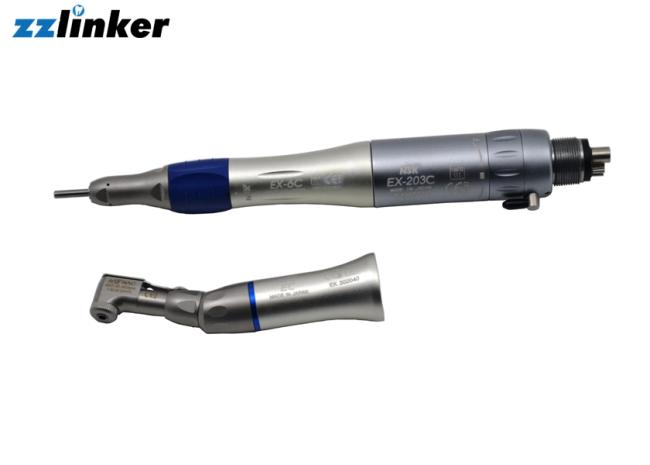

Low Speed Handpiece:
external water course,latch type,can use polisher,burs,dental lab disc,reamer,sefl-lubricanted function of air motor, 4 holes and 2 holes optional
High Speed Handpiece Technical Data
| Air Pressure | 0.22(Mpa)-0.25(Mpa) |
| Rotor Speed | 350(krpm)-400 (krpm) |
| Torque | 0.35(N) -0.4(N) |
| Water flow | 90(min/ml)-110(min/ml) |
| Water pressure | 0.2(Mpa)-0.23(Mpa) |
| Atomization pressure | 0.3(Mpa)-0.35(Mpa) |
| Noise | ≤65dB |
Low Speed Handpiece Technical Data
| Air Pressure | 0.25(Mpa)-0.3(Mpa) |
| Water pressure | 198Kpa(2Kg) |
| Forward rotation speed | 18(krpm) |
| Reversal rotation speed | 16(krpm) |
| Torque | 0.4(N)-0.45(N) |
| Bur size | Φ2.334-Φ2.355(mm) |
| Water flow | 90(min/ml)-110(min/ml) |
| Water pressure | 0.2(Mpa)-0.23(Mpa) |
| Noise | ≤65dB |
| Chuck type | latch type |
Optional

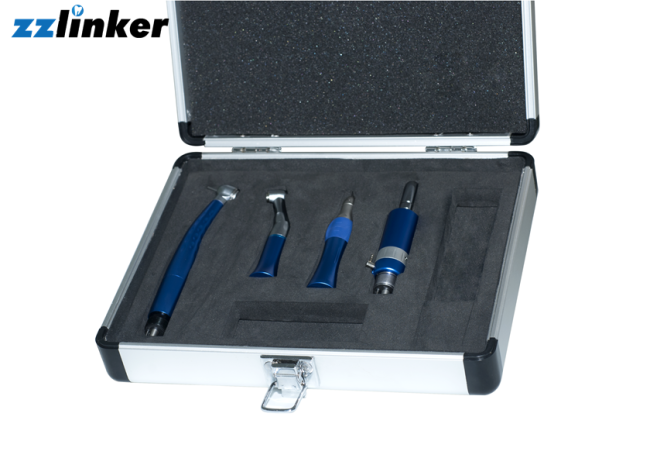

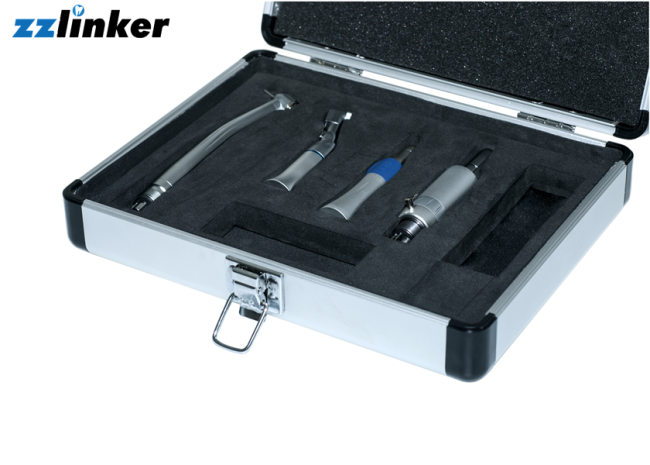

2 pcs High Speed Handpiece+ 1 set Low Speed Handpiece
1 piece High Speed Handpiece+ 1 set Low Speed Handpiece
High Speed Handpiece with LED Light
High Speed Handpiece without LED Light
