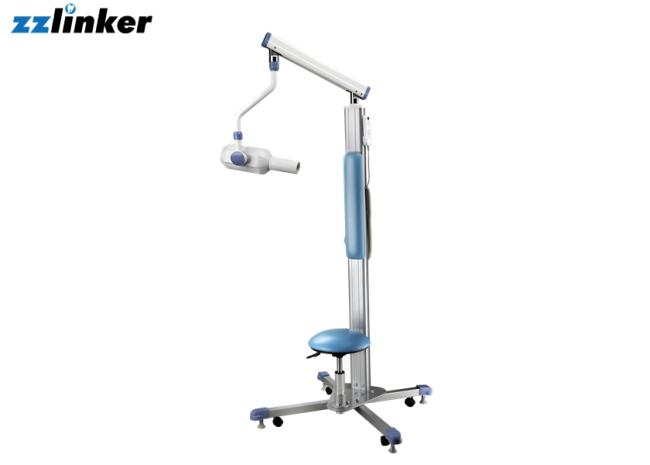

Moving Type Focus 0.8mm Dental X Ray Machine 70KV Toshiba Tube

Grey Color Moving Type Dental X Ray Machine with 70KV Toshiba Tube

Parameters:

* Voltage: 120 or 230 VAC
Frequency: 50/60 Hz
Electric current: 9A (120V) or 4 A(230V)
Max power consumption: 900V A
Fuse: 10A (120V) or 6.3 A(230V)Line and 500 mA board protection
* Focus: 0.8mm X 0,8mm
* Anodic angle: 19
* Tube voltage: 70kVp 10%
* Anodic electric current: 7 mA %
* Duty cicle: 1 /60
* Total Filtration: 2,1 m mAL /Equiv.
* Inherent Filtration: 0 .5mmAL/Equiv.
* Half-value layer: 70KV, If1.6 mmAL
* Leaking radiation rate: 1.00 mt (3.28 ft) 0.007mGy / h
* X-Ray tube model: KL 27 - 0.8 - 70

Timer

* 120 or 230 VAC
* Micro-processed controller function
* Set exposure time (0.06s-2.50s) automatically though object selection.
* Manually set exposure time, range from 0.06s-2.50s.
* Set each time according table.
* Child (small), adult (big), automatical digital selection
* Low dose set during using digital sensor.
* Manual switch with 3.00 mts (9.84 ft) spring cable
* Pre-heating* time is between 0.10 and 0.30 seconds and is added individually in each equipment.
The accuracy time is
±10%
±10%.
* Required time by the tube to enable the correct radiation output, while the filament of the X-Ray tube
is pre-heating.

1) Self-Inspection function
All of the indicating lamp and digital tube will blink three times when you tum on. Then the device
will enter into self-inspection program after beep. This operation can test if the function of indicating
lamp digital tube and buzzer are normal.

2) Voltage Surveillance function
You can push any button to enter into voltage surveillance function when start .This function only
can inspect the voltage between 108V and 132V (120V) and 207V and 253V (230V).
When the voltage is unde this range the digital tube will display error code P1. If over it will
display error code P2.
