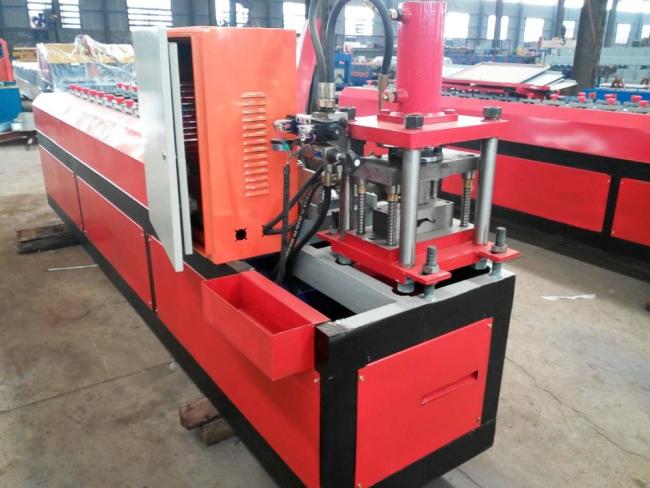

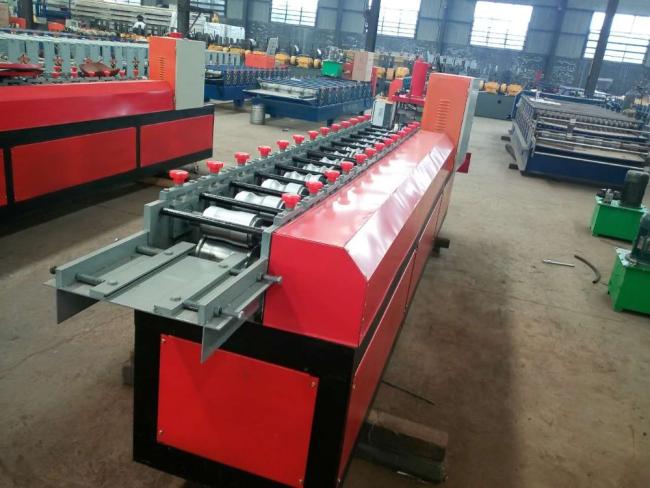

High Precision Steel Door Frame Making Machines 10.0m * 1.0m * 1.4m Approx 6 Tons
Gi Gl Material Plc Control Door Frame Roll Forming Machine High Precision And Smooth
1. Sheet Roller Door Frame Rolling Slat Forming Machine
2. Main parameters
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| Width of the feeding material | 100-160mm |
| Roller station | 10-15 rows |
| Thickness of feeding material | 0.3-0.8mm |
| Power Supply | 380V, 3-Phase,50Hz |
| Productivity | 10-20m/min |
| Rollers' material | 45# steel |
| Diameter of shaft | 75mm |
| Roller Diameter | 50mm |
| Wall thickness of main forming machine | 14mm steel plate |
| Main forming machine body | 300 mm H steel |
| Motor power | 4+3kw |
| Cutter Standard | GCr12 |
| Size | 7500*1500*1600mm |
| Weight | About 2.5T |
| Custom | According to customer's requirements |

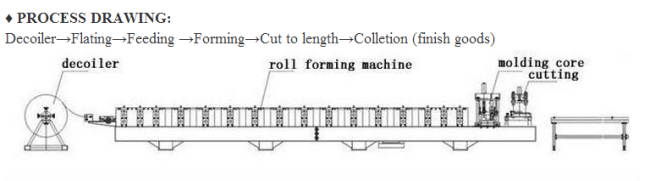

3. Door Frame Sketch
4. After Sale Service
Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.
After-sale Service:
We provide 12-hour online service for our customers. Phone: +86 15821208506
a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
5. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
