22 Stations Corrugated Sheet Roll Forming Machine , Full Automatic Corrugated Roofing Machine
PLC Control Corrugated Sheet Roll Forming Machine Full Automatic Hydraulic Cutting
1. Technical Data
|
Item NO |
Description |
Offered specification |
| 1.1 | Rolling speed | 8-12m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.5mm |
| 1.3 | Raw material | Color painted coils, galvanized sheet |
| 1.4 | Main Motor | 7.5KW |
| 1.6 | Dimension | About 7500×1600×1200(mm) |
| 1.7 | Roller stations |
About 20 stations
|
| 1.8 | Roller material | 45#forge steel, coated with chrome |
| 1.9 | Shaft diameter | 76mm |
| 1.10 | Transmission | By chain 1.2 inch |
| 1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.12 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.13 | Tolerance | 10m+-1.5mm |
| 1.14 | Hydraulic station | 4kw |
| 1.15 | Control panel | PLC:Delta or according to your requirement to adjust,Encoder:Omron,Electric parts:Schneider b |
2. Machine list
| No | Name | quantity |
| 1 | 5 tons passive de-coiler | 1 set |
| 2 | Feeding with guide | 1 set |
| 3 | Main roll forming machine | 1 set |
| 4 | Control box | 1 unit |
| 5 | Hydraulic station | 1 unit |
| 6 | Passive Out tables | 2 units |
| 7 | Spare parts | 1 package |
| 8 | Safety cover | 1 set |
3.Other components

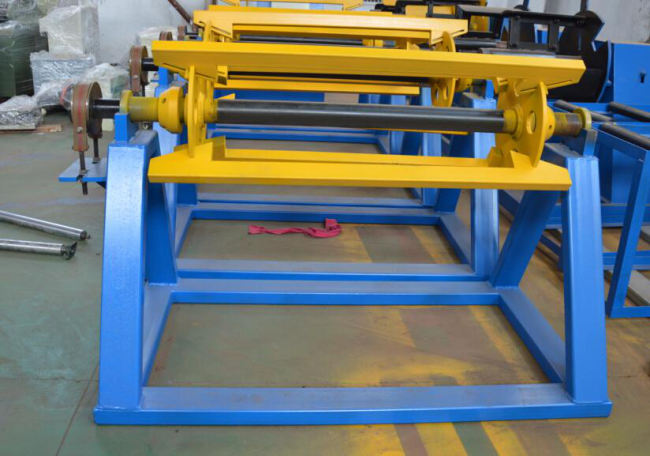

3.1. Un-coiler
5 tons passive decoiler
Coil inner Diameter: 460-520mm
Max out diameter of the coil: 1500mm
Max Coil Width: 1250mm
3.2. Cutting
(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.
(2) Material of blade: CR12 with heat treatment
(3) Length measuring: Automatically
(4) The cutting thickness: 0.25- 0.8mm
(5) Hydraulic Station Power: 4 KW

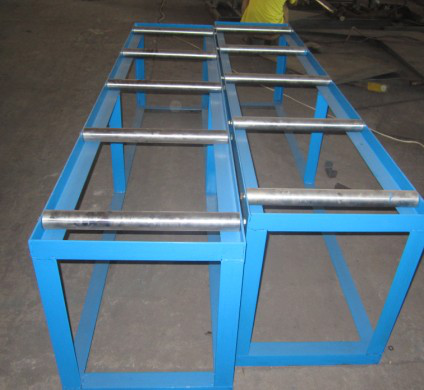

3.3. Out tables
It adopts welded steel and supported roller to transmit the products.
Size:4000*1350*1000mm
3.4. Control Box
(1) Power supplier: 380 V, 50 Hz, 3Phase (adjusted with the requestment)
(2) length & quantity measurement automatically;
(3) length & quantity controlled by PLC
(4) Length inaccuracy can be amended easily.
(5) Control panel: Button-type switch and touch screen
(6) Unit of length: millimeter (switched on the control panel)
4. Our service
1). Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
2). After-Sale Service
a. 12 months warranty is provided.
b. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by wrong operation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.
c. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
6. Picture
