YS35-130-780 Color Steel Tile Roll Forming Machine 26 Stations 0.3-0.8mm Thickness
New YS35 - 130 - 780 color steel tile roll forming machine 2018 new type corrugated roofing sheet machine
1. Description of color steel roll forming machine:
YS35-130-780 roofing sheet is made by using the PPGI or PPGI sheet after do the rolling, become the steel plates with various kinds of wave shapes. It is suit for the industrial and civilian constructions, warehouses, the big cross-beam structure houses’ roof, metope and the inner/outer metope’s decoration. Now, it is widely popularized and used.
LBM factory is producing high quality color steel tile roll forming machines, and exported to India, Iran, Russia, Vietnam, Ghana, Tanzania, etc.
2. Detailed parameters
| Machine Specifications | |
| Weight | About 7500kgs |
| Size | About 10m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Colored Steel Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 1000mm |
| Yield Strength | 245Mpa-550Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 26 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |

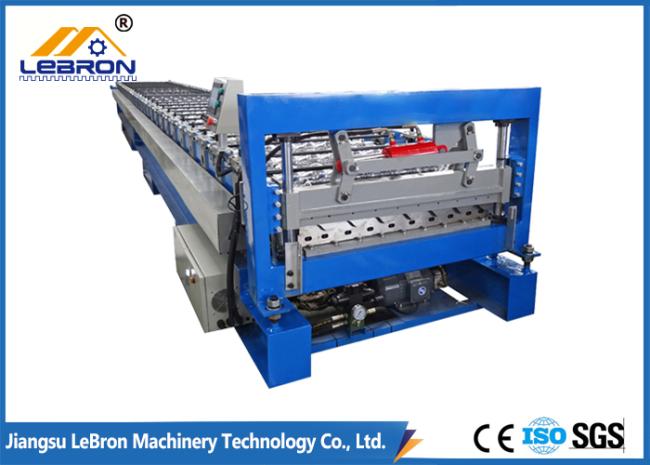

3. Color steel tile roll forming machine
4. Main components of color steel tile roll forming machine
| Item | Name | Quantity |
| 1 | Decoiler | 1 Set |
| 2 | Punching part | 1 Set |
| 3 | Roll forming system | 1 Set |
| 4 | PLC control system | 1 Set |
| 5 | Hydraulic pump station | 1 Set |
| 6 | Post cut | 1 Set |
| 7 | Electric motor | 1 Set |
| 8 | Output table | 1 Set |

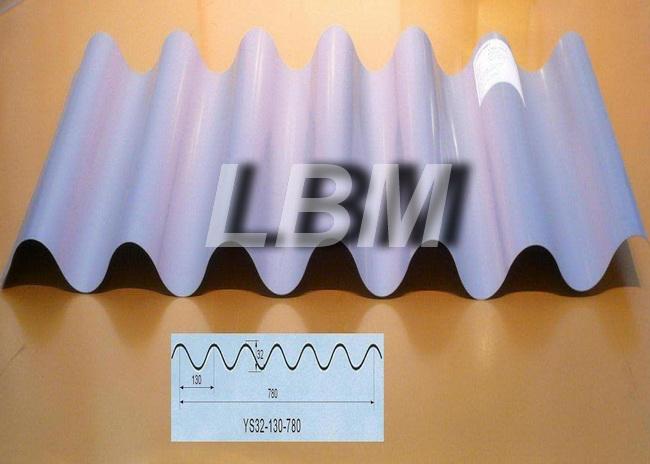

5. Panel sketch
6. Our advantages
1). 5 engineers with more than 20 years experience
2). 30 professional technician
3). 22 sets advanced CNC production lines on site
4). Installation engineers can reach your factory within 6 days
5). 3 years maintenance and whole life technical support

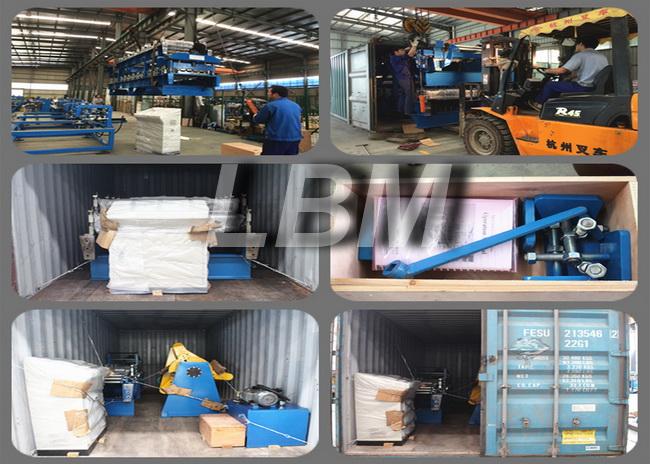

7. Delivery
