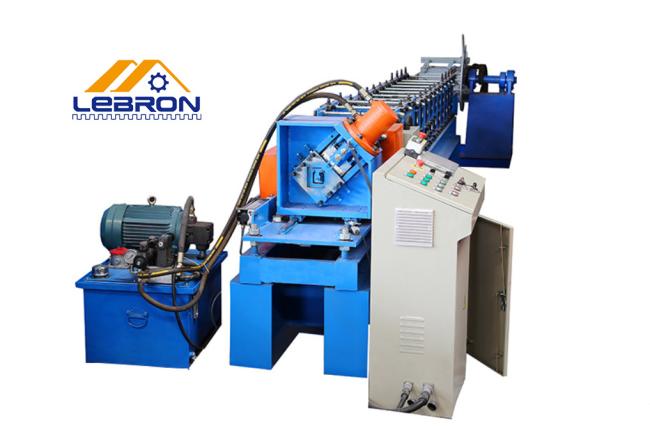

14 Stations Upright Roll Forming Machine , Soncap Rack Roll Forming Machine
1. Description of Storage Rack Roll Forming Machine

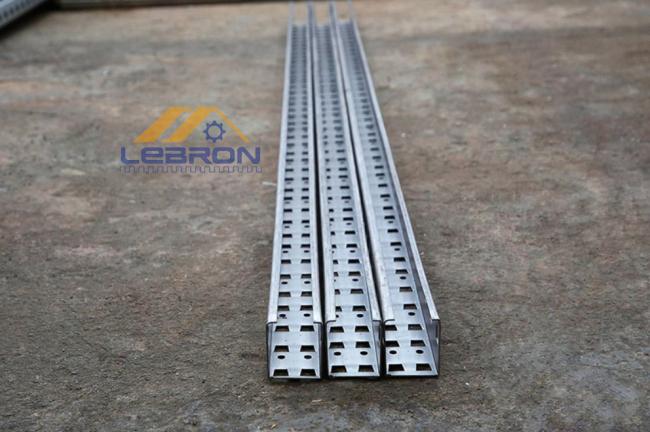

A pallet racking roll forming machine is developed for the production of vertical racks, box beams, and rack boards. Components of pallet racking system
Pallet racking is a processing storage system designed to store materials/goods on pallets. Although there are many types of pallet racks, all types of pallet racks can store pallet materials in multiple horizontal rows. Forklifts are usually an essential part of any pallet racking system, as the loaded pallets usually need to be placed on shelves for storage.
Various pallet racks are designed to increase the storage density of stored goods. Therefore, the cost associated with the shelf increases as the storage density increases.
Lebron-Machinery has a complete roll forming machine for pallet racking systems. Please contact me if you need to know more about these.
2. Technical parameters of Storage Rack Roll Forming Machine
| No. | Item | Description |
| 1 | Machine Size | Around 8.0*1.5*1.2m (L*W*H) |
| 2 | Feeding Material | Galvanized Steel & Cold Rolled Coil |
| 3 | Thickness | 1.5~2.5mm |
| 4 | Roller Step | 14 Rows |
| 5 | Material | GCr15 steel. Quenched. |
| 6 | Roller Shaft Material | No.45 Steel. Quenched. |
| 7 | Diameter | 70mm |
| 8 | Drive Mode | Chain |
| 9 | Main Motor Power | 11KW |

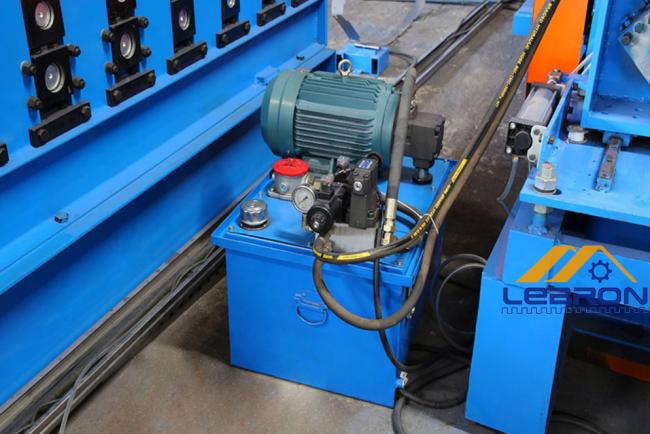

| 10 | Hydraulic Station Power | 7.5KW |
| 11 | Cutter Material | Cr12MoV Steel |
| 12 | Operation system | Controlled by industry computer-PLC system. |
| 13 | PLC brand | Siemens with English and Chinese Language |
| 14 | Voltage | 380V/50Hz/3Ph |
3. Main components of Storage Rack Roll Forming Machine
| Manual Decoiler | Max Width: 1250mm |
| Inner Diameter: 500mm | |
| Outer Diameter: 1200mm | |
| Max Weight Capacity: 5T | |

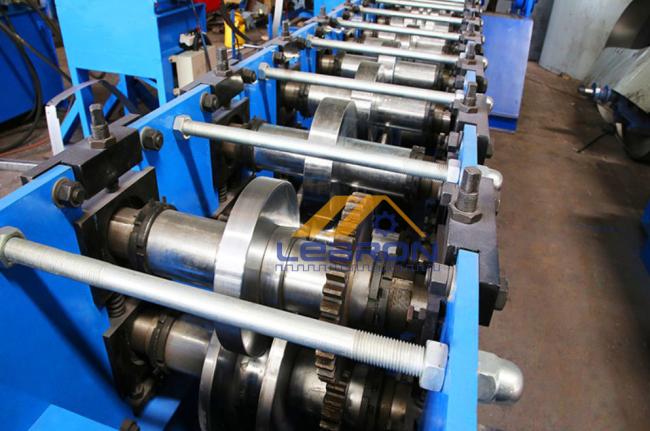

| Roll Forming | Raw Material: Galvanized Steel Coil |
| Material Thickness: 1.5-2.5mm | |
| Working Speed: 6-8m/min; Adjustable | |
| Rollers: 14 rollers | |
| Material for Rollers: GCr15 | |
| Motor Power: 11 KW | |
| Roller Diameter: 70mm | |
| Drive Mode: Chain Transmission | |
| Appearance Size: About 8000mm*1500mm * 1200mm | |
| Total Weight: About 10T | |

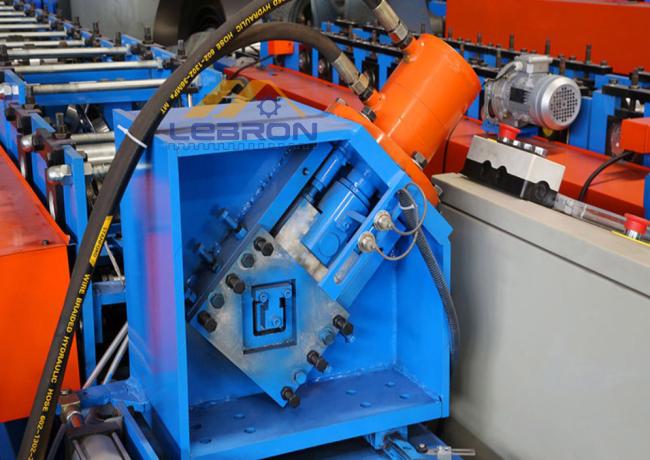

| Hydraulic Cutting | Cutting Type: Hydraulic, automatic cutting |
| Blade Material: Cr12 with polished, quenched HRC 60-62 | |
| Power: 4KW | |
| Control System | Electrical Control: PLC Frequency Control System |
| Voltage: 380V/50Hz/3Ph(or custom) | |
| Length Error: ±1mm | |
| Output Table | It is simple and used to load finished product |
| Length: 4m ( or custom) |
