Floor Deck Corrugated Sheet Roll Forming Machine Quenched Fully Automatic
Durable Long Service Time Fully Automatic Corrugated Sheet Roll Forming Machine

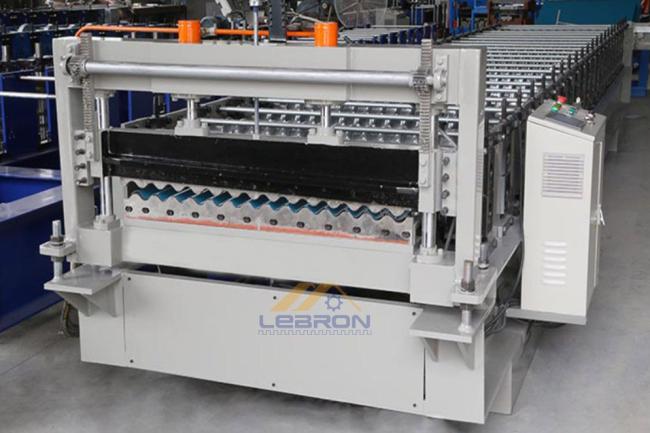

1. Description of Corrugated Sheet Roll Forming Machine
Corrugated Sheet Roll Forming Machine can make usual thickness 0.3-0.7mm, soft material, the machine can also design for thin material 0.18-0.25mm or hard material. our corrugate machines are already in Australia, Philippines, Bengal, Malawi, Mexico, Honduras, Guatemala, and Colombia……
Standard roll forming machines component(working speed about 15-20m/min): 7-ton manual decoiler, forming system with post-cut, hydraulic station, PLC controller, run out table without power
Full automatical forming machine component(working speed up to 60m/min): hydraulic decoiler, forming system with post-cut, hydraulic station, PLC controller, automatic stacker

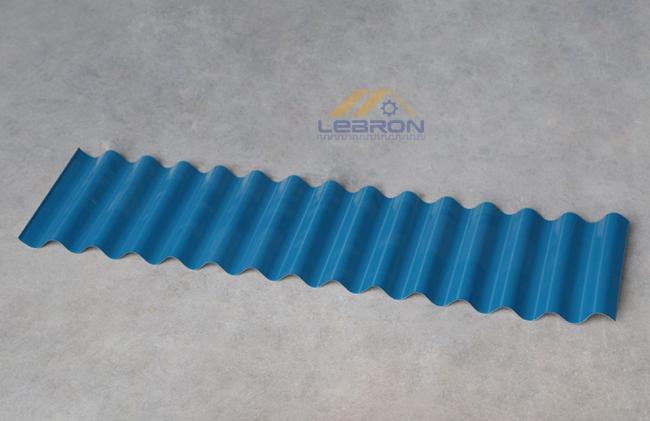

Roll forming line for roof panels is widely used to produce roofs and walls of workshops, warehouses, and steel structure buildings, provided with high reliability and durability, the advantage of easy installation, and low cost.
2. Major Technical Parameters of Corrugated sheet roll forming machine
| Name | Item | Parameters |
|
Applicable material |
Type | GI/PPGI coil |
| Thickness | 0.3-0.8MM | |
| Yield strength(Mpa) | 235-550 | |
|
Main performance parameters |
Forming speed | 12-20m/min |
| Machine size (L×W×H) | 8.0*1.5*1.4m | |
| Power supply(KW) | 7.5+3.0 | |
|
Decoiling system |
Hydraulic decoiler | Capacity: Max. 5Ton, hydraulic control steel coil inner bore expanding, shrinkage, and stop. |
| Forming machine | Main Roll Forming Machine | About 22 steps, motor driving, and chain transmission. Wall plate structure. |

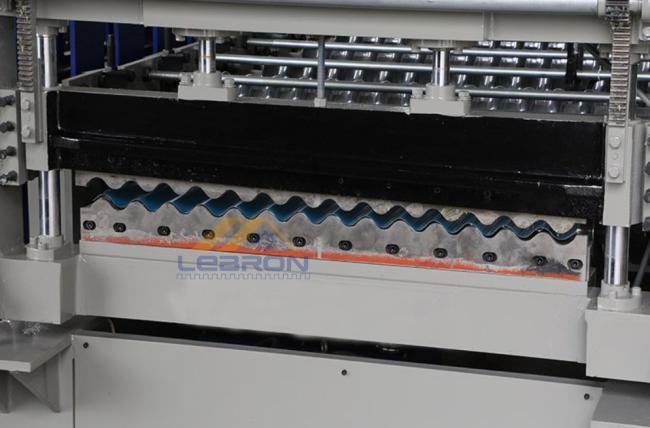

| Cutting system | Hydraulic Cutting Device | post-cutting |
| Hydraulic system | Hydraulic Station | Providing the power of cutting. |
|
Control system |
PLC Control System |
PLC control system, encoder positioning, and cut-to-length automatically, touch screen operating. |
| Racking system | Exit rack | no power. |
3. Major Components
| Name | Quantity |
| Uncoiler | 1 set |
| Coil sheet guiding device | 1 set |
| Main roll forming system | 1 set |
| Cutting device | 1 set |
| Hydraulic station | 1 set |
| PLC control system | 1 set |
| Support table | 2 sets |
| While in some other cases, we can provide a hydraulic decoiler and auto stacker as per request. | |
4. FAQ
1Q: Are you a factory or a trading company?
1A: We are a factory.
2Q: Where is your factory?
2A: Our factory is located in Wuxi City, Jiangsu Province, China. Warmly welcome you to visit us!
3Q: If I want to customize the machine, what should I provide?
3A: We need an outline drawing, material information such as feed width, thickness, coil yield strength, voltage, and your special requirements.
4Q: What should I do when I first contact the molding machine?
4A: Contact us immediately, we provide free consultant pre-sales service.
5Q: Can you make the machine according to my design or phototype?
5A: Yes. We have professional designers to make the most suitable design and production plan for your predetermined machine
6Q: How can I trust that your machine has passed the test before shipping?
6A: We recorded a test video for your reference. You are welcome to visit our factory and test the machine.
7Q: Do you provide overseas installation and training?
7A: Overseas machine installation and worker training services are optional.
8Q: How is your after-sales support?
8A: We provide online technical support as well as overseas services by skilled technicians.
9Q: Warranty period:
9A: Within one year from the date of completion of commissioning. The warranty covers all electrical, mechanical, and hydraulic components on the production line, excluding parts subject to wear.
