High Capacity Steel Door Frame Roll Forming Machine 75 Mm Mold Steel
Easy Operation High Capacity Steel Door Frame Roll Forming Machine
1. Description of Door Frame Roll Forming Machine

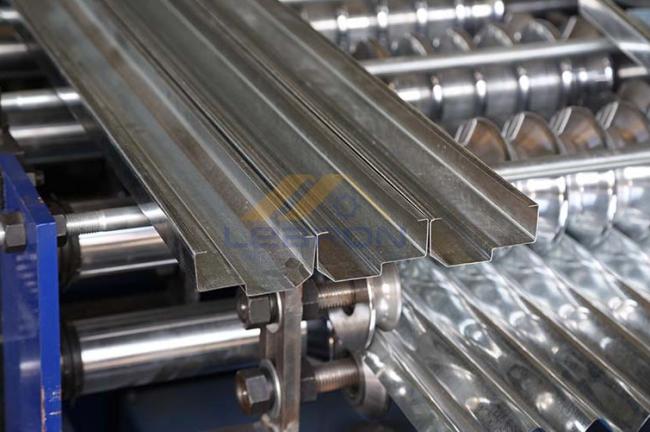

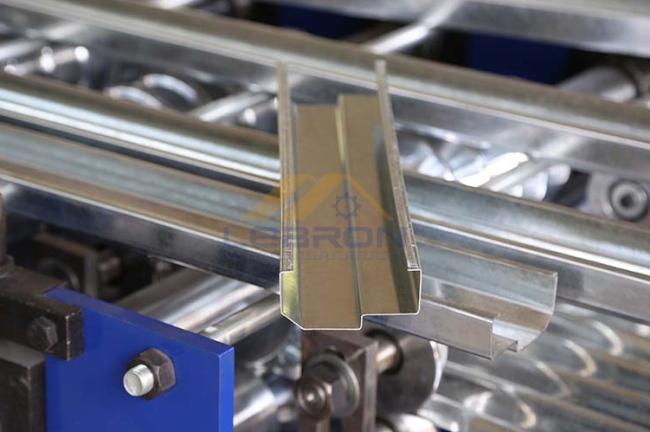

This Door Frame Roll Forming machine can produce various kinds of Roll Formed Aluminum & GI Steel Door or Window frames.
A door frame roll forming machine generally consists of a decoiler (a Hydraulic Decoiler is optional ), the main roll forming machine, a transmission system, a cutting tool, a hydraulic system, a hydraulic oil pump, a PLC control cabinet, and run-out tables
Lebron-Machinery is manufacturing high-quality door frame machines, and they are mostly exported to foreign countries, such as India, Angola, Ethiopia, Ghana, Zambia, Brazil, Argentina, Thailand, Philippines, Pakistan, Russia, etc.
2. Technical Parameters of Door Frame Roll Forming Machine
| Weight | About 8000kgs |
| Size | About 7.5m*1.2m*1.0m (L x W x H) |
| Suitable Material | Galvanized steel strip |
| Thickness | 0.8~1.2mm |
| Coil width | 240mm |
| Yield strength | 235Mpa |
| Rollers station | 18 Stations |
| Roller Shaft Diameter | 75 mm |
| Roll Forming Speed | 20-25m/min |
| Production Speed | Approx.15m/min |
| Roller Material | 45# steel, coated with chrome, quenched |
| Cutter material | Cr12 mold steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric power requirement | Main power: 7.5 KW |
| Hydraulic power: 4 KW | |
| Electric voltage | 380V 50Hz 3 Phase (as per local requirement) |
4. Our Advantages:
Our factory has more than 11 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets of advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1-year maintenance and whole life technical support
4. FAQ
Q1. What is your advantage?
A1: We have over 12 years of experience in roll-forming machine production. Experienced engineers and workers will be helpful for quality control.
Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers' specifications, using top brand components.
Q4. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. We have rich experience in transporting.
Q5. How to visit your company?
A5: 1). Fly to Wuxi airport, and we will pick you up.
2). Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao railway station to Wuxi railway station, then we can pick you up.
