China 50 Ton Diesel Fuel Type Articulated Dump Truck 50 Ton With Drive Wheel 6*4 for sale

50 Ton Diesel Fuel Type Articulated Dump Truck 50 Ton With Drive Wheel 6*4

Name: 50 Ton Diesel Fuel Type Articulated Dump Truck 50 Ton With Drive Wheel 6*4
Brand: BILON HEAVY INDUSTRY (GUANGZHOU) CO.,LTD

Price Negotiable

Price: Negotiation

MOQ: 1 pc

Delivery Time: 15 days

Brand: Bilon

Product Description

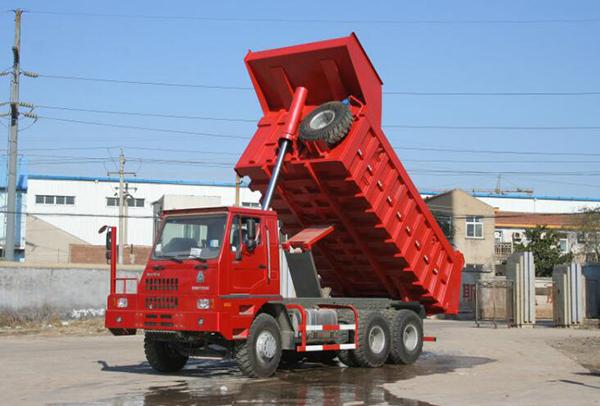

50 Ton Dump Trucks

Drive wheel 6*4, tipper ,our new product, populer in Myanmar market, mainly used for mine, still mill, hydroelectric power, port and overload climbing, downgrade working conditions. It is really the ideal construction helper.

Howo 50T/70T Mining dump truck 6*4 for sale

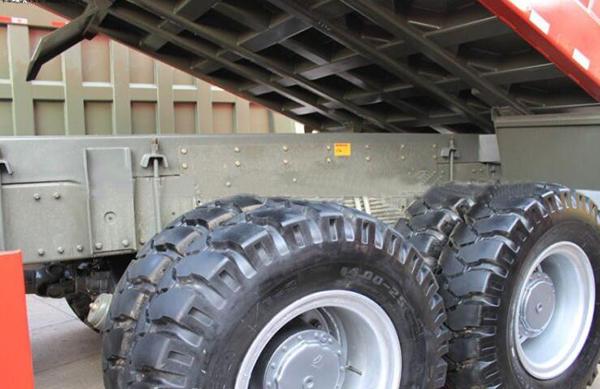

Large-sectioned middle and rear axle

^{Sale code}			^{HV7/336/K34/6× 4D}	^{HV7/336/K36/6× 4D}
^{Size parameters}	^{Overall dimension(mm)}	^{Rectangular box}	^{7760× 3000× 3425}	^{8060× 3000× 3425}
		^{Mining box}	^{7960× 3000× 3425}	^{8260× 3000× 3425}
	^{Dimension in container(mm)}	^{Rectangular box}	^{5100× 2800× 1500}	^{5400× 2800× 1500}
		^{Mining box}	^{5300× 2800× 1500}	^{5600× 2800× 1500}
	^{Wheelbase(mm)}		^3400+1400	^3600+1400
	^{Front/rear overhang(mm)}		^1500/1460	^1500/1560
	^{Min. ground clearance(mm)}		^{270 (Front axle)}
	^{Approach/departure angle(° )}		^25/32.5	^28/32.5
^{Weight parameters}	^{Total weight/Max. rated contained quality(kg)}		^10500/50000
^{Performance parameters}	^{Max. speed(km/h)/Max. gradeability(%)}		^85/69/34/41
^Engine	^Mode		^WD615.95
	^{Rated engine power(kw/rpm)}		^247/2200
	^{Max. torque(N. m/r/min)}		^{1350/1100~1600}
	^{Fuel-rate(g/kw. h)}		¹⁹²
^Clutch			^{430 diaphragm spring clutch A-type}
^Gearbox	^Mode		^HW18710
	^Ratio		^{14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.8 1.34 1.00 13.91(R1) 3.18(R2)}
^Cab			^{HOVA cab, double hydraulic lock, max. angle 50°}
^Tire			^{13.00-20 (Option: 14.00-20-20 )}
^{Brake system}			^{Driving brake: dual circuit brake; Parking brake: spring energy air cut brake; Assist brake: engine exhaust brake}
^{Electric system}			^{single line, 24V minus earth}
^{Fuel tank}			^400L
