15kVA 12kw AC Three Phase Soundproof Electric Diesel Generator
Price:
Negotiation
MOQ:
1-10 pcs
Delivery Time:
30 days
Brand:
Bilon
Product Description

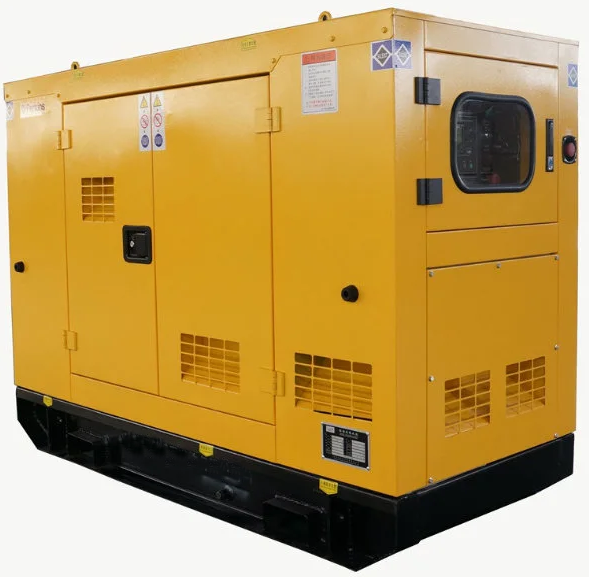

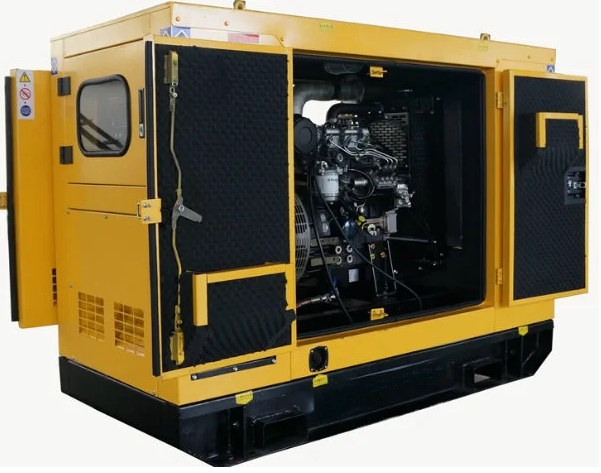

15kVA/12kw AC Three Phase Soundproof Electric Diesel Generator Power
1. Engine
Heavy duty diesel engine
Four stroke, water cooled
24V stater and charge alternator
Cooling radiator and fan
Maintenance free battery including ract and cable
Flexible fuel connection hoses and manual oil sump drain valve
Exhaust silencer
2. Alternator
Brushless, single bearing, flexible disc
Insulation class: H
Protection class: IP23
Self-exciting and Self-regulation
| Genset | ||
| Prime power | 10kw/12.5kva | |
| Standby power | 12kw/15kva | |
| Rated speed | 1500 Rpm | |
| Output frequency | 50 Hz | |
| Rated voltage | 380/220 V | |
| Rated current | 22 A | |
| Starting mode | Electric start | |
| Fuel consumption of 100% load | 248 g/kw.h | |
| Steady voltage regulation rate | ≤+1% | |
| Steady frequency regulation rate | ≤+5% | |
| Length(L) *Width(W) *Height(H) | 2200*940*1460 mm | |
| Weight | 1200 kg | |
| Fuel tank capacity | 140 L | |
| Noise level (soundproof type) | 70 dBA @7m | |
| Environment temperature | ≤50 ºC | |
| Relative humidity | ≤60% | |
| Altitude | 1000 m | |
| Engine | Engine model | 403D-15G |
| Cooling mode | water cooled | |
| Intake way | Naturally aspirated | |
| Number of cylinders | 4 | |
| Cylinder arrangement | Vertical in-line | |
| Cycle | Four stroke | |
| Bore×Stroke | 84*90 mm | |
| Displacement | 1.49 L | |
| Compression ratio | 17:1 | |
| Prime power/speed | 10.4 Kw/1500 Rpm | |
| Standby power/speed | 13.5 Kw/1500 Rpm | |
| Speed governor | Electronic speed governor | |
| Oil capacity | 6 L |
