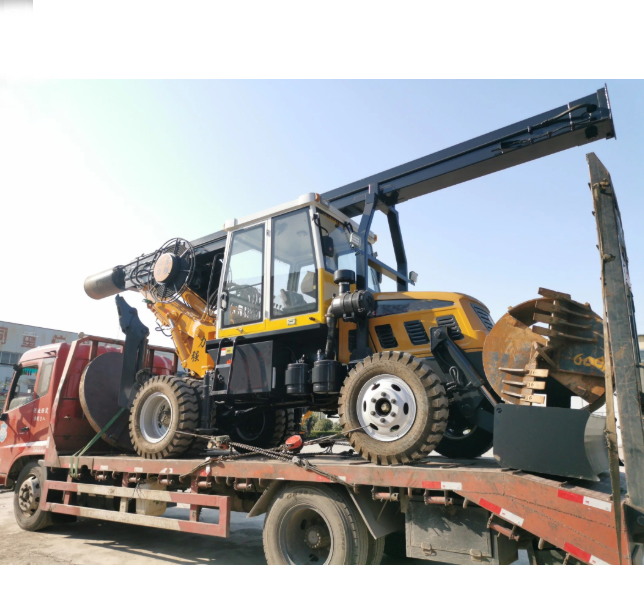

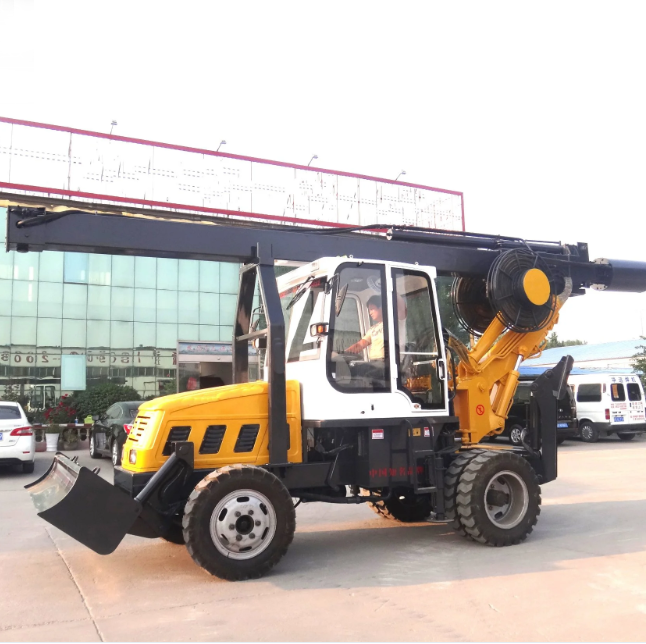

11m 88kw Wheeled 180 Degree Rotary Drilling Machine With Excavator
11m 88kw Drill Rig Wheeled 180 Degree Rotary Drilling Machine with Excavator for Foundation Construction
1. Cummins electric control turbo-supercharged engine is used.It complies with Euro III emission standard,In addition,it has strong power,
which is sufficient to satisfy the construction on the plateau. Its noise is up to the national standard.
2. The new generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase
drilling efficiency and safety.
3. Highly automatization system,advanced hydraulic system and heavy wide chassis ensure efficient,safe and stable operation.
4. This machine is applicable to slop shield piles,civil construction,new rural construction,municipal construction,and the strata
Parameter
| Model | 11m | ||
| Working mode | Pressure drilling | ||
| Drilling diameter | mm | 500-1500mm | |
| Depth | m | 11m | |
| Dimension | m | 7.50*2.25*3.10 | |
| Weight | t | 7.6 | |
| Tire model | / | 900-20 | |
| Engine | Model | / | Weichai/Yuchai |
| Power | kw | 88 | |
| Rotation rate | r/min | 2400 | |
| Torque | kn.m | 22000-30000 | |
| Drilling rate | r/min | 30-50 | |
| Max.pull force | kn | 150 | |
| Max.stroke | m | 11-22 | |
| Rope diameter | mm | 18 | |
| Rotation angle | ° | 180 | |
| Speed | km/h | 40-50 | |
| Max.slope | ° | 25-30 | |
| Optional | 1.Air conditioning 2.Electrical Machinery(6G,30kw) 3.Double pump(rate of flow 40/80) 4.Double dynamic model |
||
