In the realm of precision engineering and machinery, the combination of Locking Joint Steel and CuSn6.5P0.1 Bimetal Bronze for camshaft bushings offers unparalleled durability and performance. The steel provides the necessary structural strength and rigidity, while the CuSn6.5P0.1 bronze alloy layer, known for its excellent wear resistance and corrosion properties, ensures smooth operation and long-lasting service.

The bimetal construction of these bushings — with a steel base and a bronze overlay — creates a material that is tailored specifically for camshaft applications. The bronze layer is precisely bonded to the steel, ensuring a strong and reliable interface that can withstand the rigorous demands of camshaft operation.

The bushings are available in strip sheet material form, allowing for efficient and precise cutting and shaping to fit specific camshaft designs. This flexibility in manufacturing makes them a popular choice for a wide range of industrial and mechanical applications.

Overall, the Locking Joint Steel with CuSn6.5P0.1 Bimetal Bronze Camshaft Bushings Strip Sheet Material offers an exceptional solution for camshaft bushings, delivering superior durability, wear resistance, and corrosion protection in demanding environments.

Bronze Bushing Material

Grooves & indentations Leaded Bronze Bearings / Precision steel Bimetal Bushing, steel plate, steel strips and prefessional bimetal plain bearings services supplier.VIIPLUS can not only manufacture copper alloy material according to China's national standard, but also can produce it as the related standards of the ASTM(UNS,SAE), etc.What's more,we can also develop the copper alloy material according to the special requirements and drawings of customers.Bimetal Plain Bearings to Standard Steel+CuSn6.5P0.1 WITH LOCKING JOINT  &LUBRICATING GROOVE &HOLES .Are your bimetal bronze steel bushings Steel + CuPb24Sn4 with indents worn? Updating your plain bearings a need quality replacement parts? We carry a complete line of bushings strips & materials for just about any self-lubricating bearings.Bimetal Plain Bearings Strips & Plate,Bearing forms made to order: Cylindrical bushes and sliding plates with non-standard dimensions, RoHS customized bearing designs.

Description

Lead-free bimetal bearing is a kind of environmental protection bimetal bearing, it is based on low carbon steel plate as the matrix, surface sintering CuSn6.5P0.1 material steel copper alloy products.
The product has a high fatigue strength and bearing capacity, good sliding performance, in many occasions can replace the bimetallic bearing containing lead or copper sleeve.

Steel backing can be copper plated

Steel+CuSn6.5P0.1

Alloy layer material: cusn 6.5p0.1
Maximum applicable temperature: 260℃
Friction coefficient: ≤0.13
Alloy layer hardness :(60~90)HB

Availability

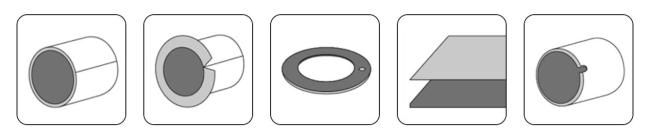

Bimetal Bearing forms available in standard dimensions

Locking Joint

Application characteristics

1. High bonding strength, large bearing capacity and good wear resistance.
2. Suitable for low speed and high load occasions.
3. Various oil groove, hole and hole can be processed on the friction surface.
4. It is lead-free and can be a substitute for other leaded products.
5, widely used in mining machinery, automobile, construction machinery, agricultural machinery, steel rolling machinery.
