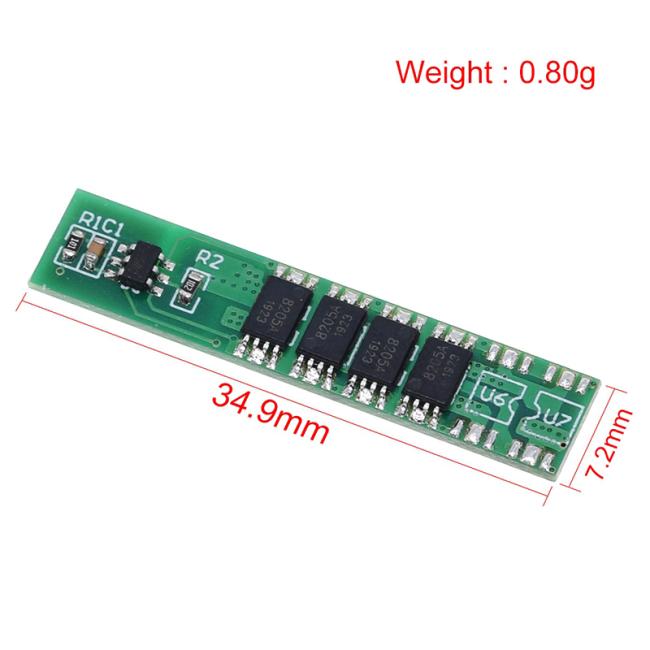

1S 7.5A 10A 15A 3.7V Li-ion 3 4 6MOS BMS PCM Battery Protection Board printed circuit assembly

3MOS Operation parameters:

Charging test voltage: 4.25 + / - 0.05 V
Charging: release of the 4.23 + / - 0.05 V
A discharge detection voltage: 2.45 + / - 0.1 V
Maximum sustained current: 6 a
Over-current detection current: 7.5 A
Charging voltage: 4.2 V
Product size: 35 * 7.4 * 7.4 MM
IC components: DW01 + 8205 * 3 a

Main functions:

The overcharge protection, discharge protection, short circuit protection, over current protection.

Connection details:

B + battery positive electrode.
B - connect battery cathode
P + enter the anode for battery output
P - for battery output input cathode

4MOS:

Over charge voltage: 4.25±0.05V
Over charge release voltage:4.23±0.05V
Over discharge voltage:2.54±0.1V
Maximal continuous charging/discharge current: 7.5A
Maximal Discharging current: 10A
Size: L35*W7*T2mm
Weight: 10g

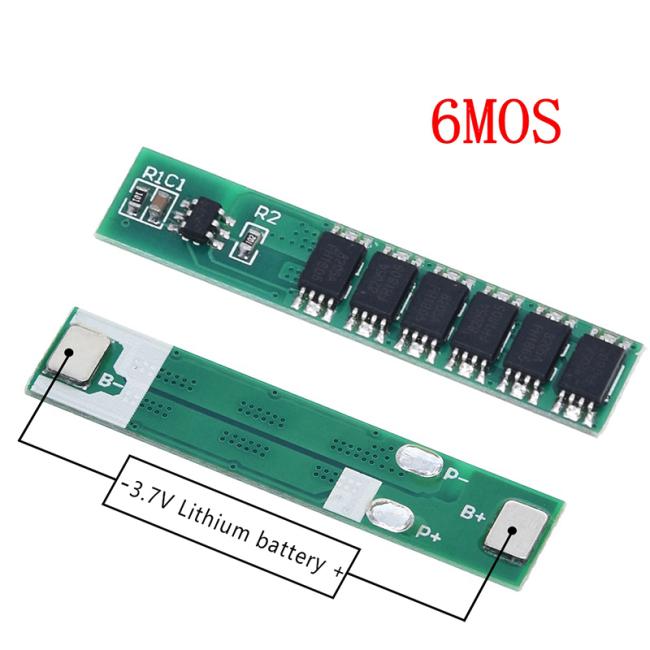

6MOS:

Overcharge detection voltage: 4.25 + 0.05V
Overcharge disconnection voltage: 4.23 + 0.05V
Overdischarge detection voltage: 2.45 + 0.1v
Maximum continuous current: 12A
Overcurrent detection current: 15A
Charging voltage: 4.2v
Product size: 35*7.6*2MM
IC component: DW01+8205A

Main functions:

Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection.

Wiring instructions:

B+ connect the positive electrode of the battery.
B- connect the battery cathode.
P+ is the input positive pole of battery output
P- is the output input cathode of the battery pack
