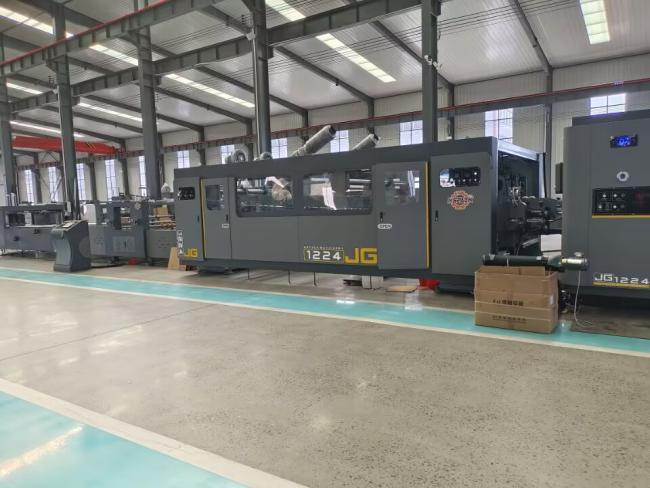

Full Automatic High Speed Corrugated Carton Box Printer Slotter Die Cutter And Folder Gluer In Line
Automatic High Speed Printer Slotter And Box Fold Glue With PP Strapping MachineFull Automatic High Speed Corrugated Carton Box Printer Slotter Die Cutter And Folder Gluer In Line
“AUTO SET” supervision program for full line control
In particular the program controls the following functions
• longitudinal registers
• back-stop and side guides positioning of feeder
• creasing and cutting tools positioning of slotting unit
• folding arms and glue unit positioning
• counter ejector set-up
Possibility to read-in more than 1000 work programs
Production statistics and data survey
Ready for connection to a printer
Possibility of remote assistance
| ü Max speed | ü 250 |
| ü Max pile height (mm) | ü 350 |
| ü Min pile height(mm) | ü 80 |
| ü max piece in one pile | ü 30 |
| ü Min piece in one pile | ü 10 |
| ü (mm) max paper size | ü 1200*2400 |
| ü (mm) min paper size | ü 350*720 |
| ü (mm) glue flap side max size | ü 700 |
| ü (mm)another size min size | ü 65 |
| ü Total length (m) | ü 14 |
| ü Flut and board suit type | ü A,B,C,E,A+B,B+C,B+E |
