Finger Less Single Facer Corrugated Board Production Line For 2ply Paper
Finger Less Single Facer Corrugated Board Production Line For 2ply Paper
1.Single facer corrugated board production line Function
Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.
2.Single Facer corrugated board production line characters
1)Cover vacuum suction.
2)Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.
3)No gear transmission.
4) Glue roll is lifted and lowered pneumatically.
5) Independent glue clean device and electric glue-separate board to control the width of glue.
6) Manually regulate or electrically regulate the display device.
7) Lubricated by high temperature lubricate grease.
8)Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.
9)Pressure roll is medium- frequency quenched and chrome-plated.
10)Width 1400mm~2000mm.
11) Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa
3.SIngle facer corrugated board production line specification
| Working width | 1200,1400,1600,1800,2000 or customzied |
| Heating method | oil hearting , steam heating ,electric heating |
| Design speed | 80m/min |
| Real working speed | 45-60m/min |
| Compress air pressure | 0.4-0.9mpa |
| Flute type | ABCEFUVE flute |
| Corrugated roll diameter | 280mm |
| Wall thickness | 130mm |
| Type | Vacuum Absorb |
| Roller material | 48CrMo alloy, Heat treated |

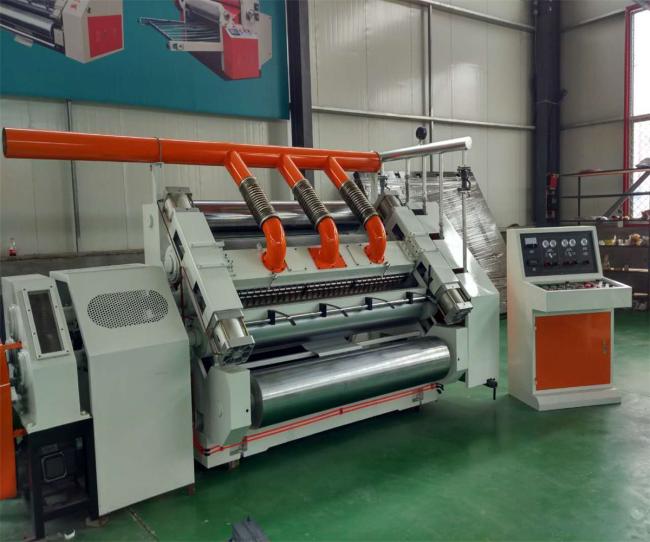

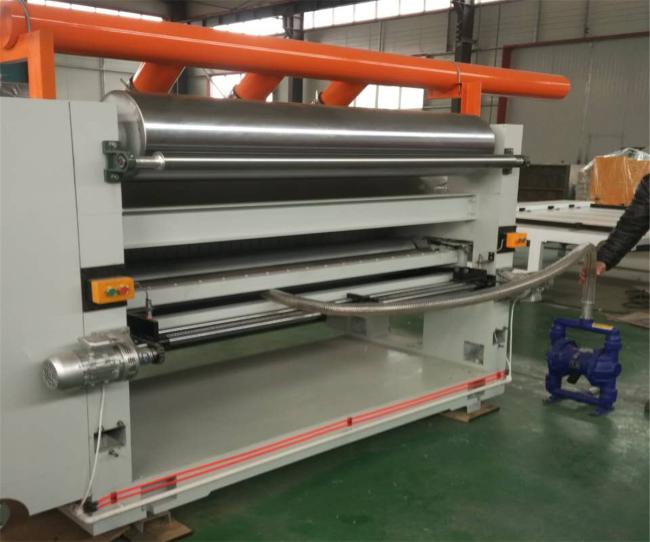

4.Single Facer machine view

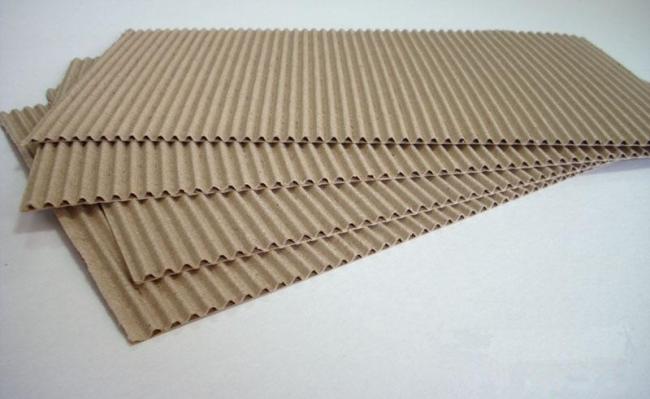

5.Finished products made by single facer machine
