PLC Touch Screen Automatic Paper Tube Making Machine KSJG - 200 Model
Price:
Negotiable
MOQ:
1
Delivery Time:
30-50days after getting deposit
Brand:
KSPACK
Product Description

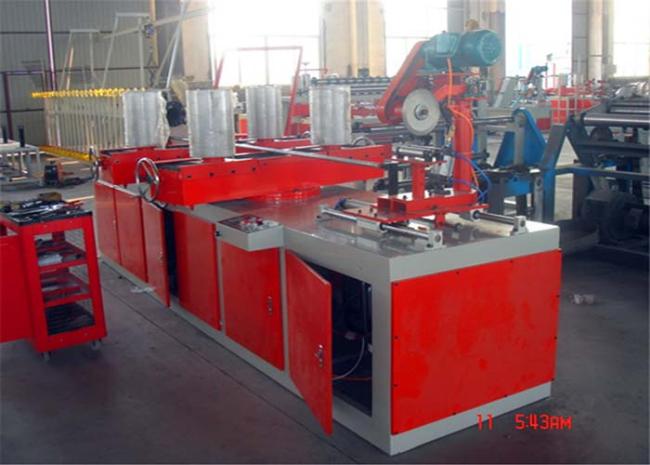

KSJG-200 PLC touch screen automatic paper tube making machine
1. For paper tube diameter Ø30-200mm; paper tube thickness of 1-15mm paper tube production.
2. According to different paper tube, tube speed between 0-25 (m / min).
3. No resistance four machine so that the paper tube strength has been greatly improved.
4. CNC, light control two fixed-length mode, make the operation more convenient and faster.
5. The main motor Shanghai strong speed (15kw), this product output power, and has adjustable speed function.
| Size (mm) | Drop tube rack | automatic | |
| Host Size: L * W * H | 2900mm*1700mm*1900mm | Belt adjustment | Manual |
| Land area: length * width | 20000mm*9000mm | For glue | Automatic stainless steel heating plastic tank |
| Hub diameter | 294mm | Tape for lubrication oil | Automatic lubrication of stainless steel basin |
| Hub height | 360mm∕430mm | Tension adjustment | Mechanical adjustment |
| Minimum track | 1000mm | Paper holder type | Right-angle fixed lifting on the paper holder |
| The maximum track | 1250mm | Roll mandrel | 1 |
| total weight | 5600kg | Roll tube belt | 1 article |

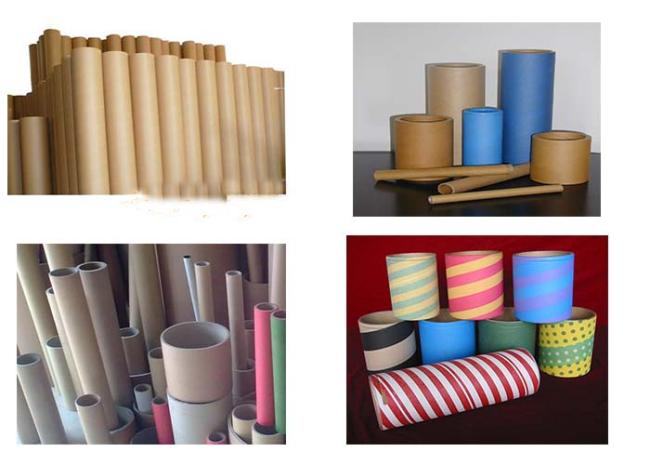

the machine final products:
