corrugated carton paperboard mill roll stand packing machine semiautomatic box manufacturing machine price

1.Electric shafteless mill roll stand structure

1)symmetrical structure can be installed at the same time two bundles of paper tube, can be used for non-stop machine to change the paper

2)electric clamping, release, moving on the left and right

3)brake adjustment using disc plate system.

4) with two-stage automatic expansion of the paper clip, clamp head size 3 inch

2. Electric shaftless mill roll stand characters

1) paper stand active model: mechnical electrical

2)clamp paper scape : max 1600mm 1800mm , min 100mm

3)clamp diameter : max ￠1400mm

4)single side max load weight : 1500kgs

5)power : 380 volt ,50hz

6)Turn over motor power : 1.5kw /set clamp motor power : 0.75kw 4 set

7)manual brake model ( option pneumatic brake model )

8)electrical brand : DELIXI CHIT

9)machine weight : 2.3T

3.Brand for main purchased parts , raw material and origin

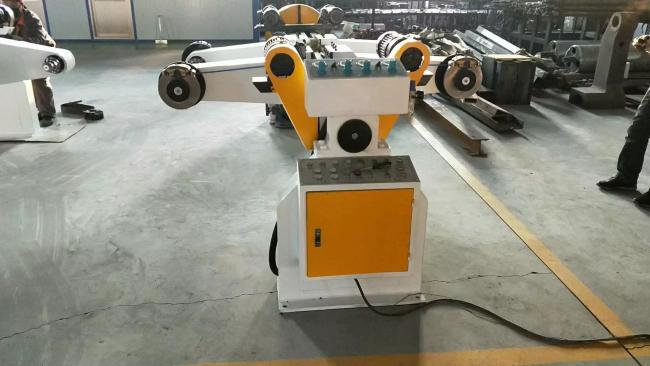

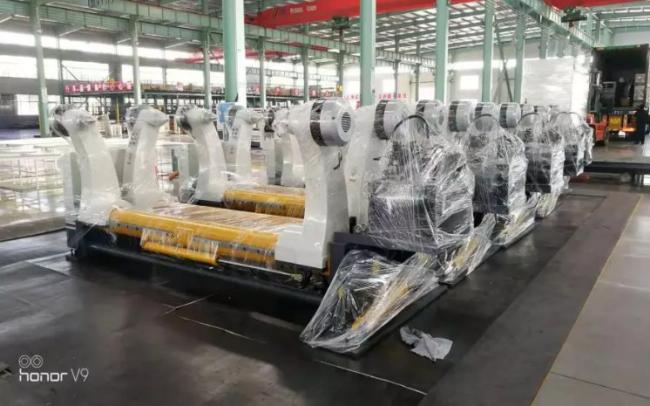

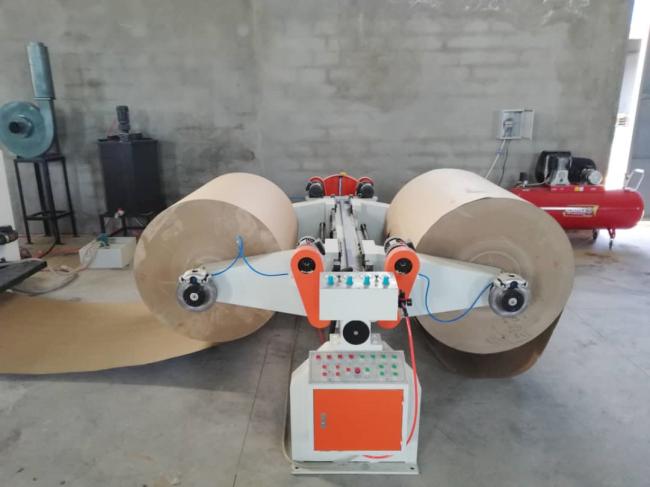

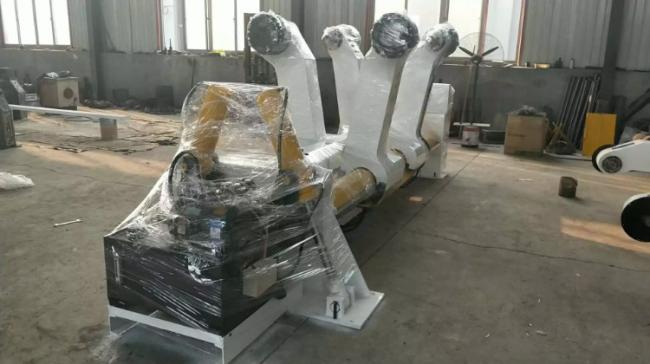

4.Mill roll stand machine pictures
