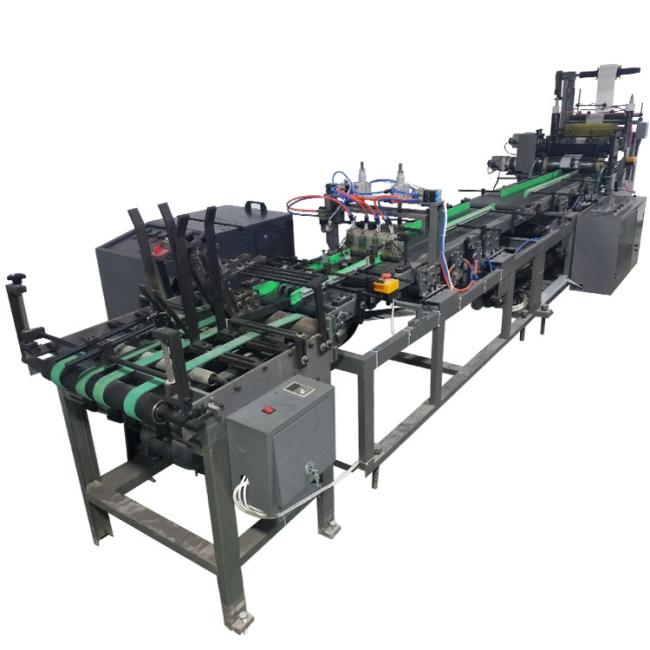

Cockroach Rat Insect 80m/H Glue Trap Making Machine/rat glue trap

1)The feeding part can automatic or manual feeding .unit can remove when use the manual feeding style .

2)The machin process : auto feeding base paper( sheet style) –auto coating—auto lamination the silicon paper ( automatic cut the silicon paper to appropriate size )-finish ( there have the collect box in last of the machine)

3)hotmelt machine (80kg): put the glue in the melt machine ,automatic melting ,then across to glue hose sending to the glue gun coating the glue to the paper

4)silicon paper ( roller style ),after cut to need size sending to the adsorb laminating device ,then if the photoelectricity switch response the base paper come ,the stepper motor will take the silicon laminator with the base paper.

5)the production line totol length 5000mm

6) the max coating size :210mm

9)match with the HG880 style hot melt machine the capacity is 40kg

10)the machine have the cover guard in four side of the machine and also around the glue head.

11)the machine can adjust the glue coating quantity

12)the machine is plc control ,can show the capacity of products and the speed of per hour.

13) The machine to coat the glue as per samples sent with a moving tolerance of 2mm or less

14) At the end of machine there will be an extra movable conveyor of 1.5mtr so that the operator is away from the silicon roll.

The machien video link :

https://youtu.be/jezgbM41l5Q

https://youtu.be/9J0YJtsL7lU
