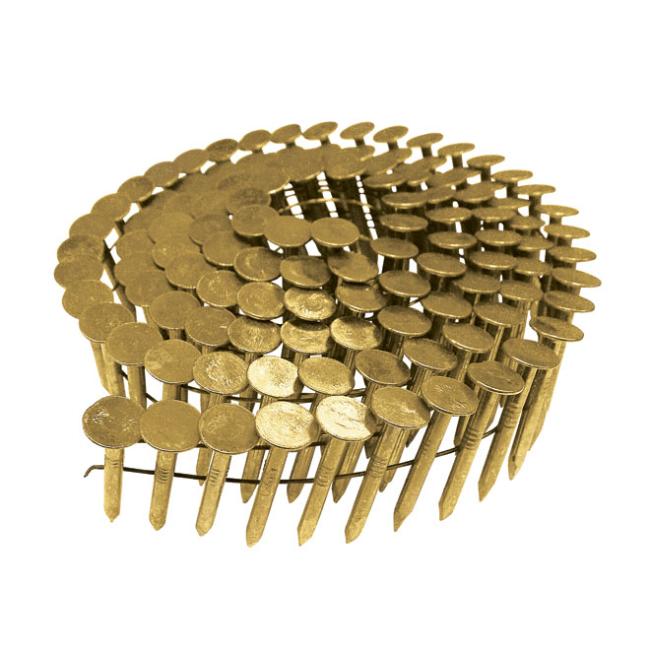

MIAMI-DADE COUNTRY APPROVED ROOFING NAILS 1-1/4" EG Coil Roofing Nails
MIAMI-DADE COUNTRY APPROVED ROOFING NAILS 1-1/4" EG Coil Roofing Nails
Product Description
ROOFING COIL NAILS ARE SHOTED BY NAILS GUN(COIL NAILER) CONTINOUSLY. THE ADVANTAGES IS TO REDUCE MANUAL LABOR AND INCREASE PRODUCTIVITY. IT IS WIDELY USED, ESPECIALLY SUITABLE FOR CONSTRUCTION, DECORATION, FURNITURE, WOOD PACKING, AUTOMOTIVE AND OTHER INDUSTRIES .
Specification 0f Roofing Coil Nails
Material: Steel Q195
Head Diameter: 5.0--8.0mm
Head Thickness: 1.00-0.1mm
Shank Type: Smooth/ Screw/ Ring
Shank Diameter: .120''
Welding Position: 8-19mm/19-37mm/19-52mm
Point Type: Diamond /Blunt /Chisel
Finish: Bright/Yellow Painting/E G/H.D.G/M.G/ Stainless steel
ASTM F 1667
| Property | Test Method | Result | Requirement |
| Physical Properties | |||
| Ductility,0.125"Mandrel | ASTM F 680 | Pass | Pass |
| Tensile Strength | ASTM F 680 | NOT tested | Not Required |
| Dimensions and Tolerances | |||
| Length,overall,in | ASTM F 680 | 1.25 | Report |
| Diameter,at thread crest,in | ASTM F 680 | 0.124 | Report |
| Length tolerance,in | ASTM F 680 | <1/64 | ±1/16 |
| Shank diameter tolerance,in | ASTM F 680 | 0.001 | ±0.004 |
| Head diameter tolerance,%(power driven) | ASTM F 680 | 3 | Report |
| Zinc Coating | |||
| Coating Process | ASTM F 1667 | Electrogalvanized | Hot dip or electrogalvanized |
| Coating amount,after forming,oz/ft³ | ASTM A 90 | 0.31 | ≥0.28 |
| Other | |||
| Workmanship | ASTM F 680 | Pass | Free from imperfection,dean,freee of corrosion |
| Altered Nail Shapes and Deformations | ASTM F 1667 | Annular Ring | Annular Ring |

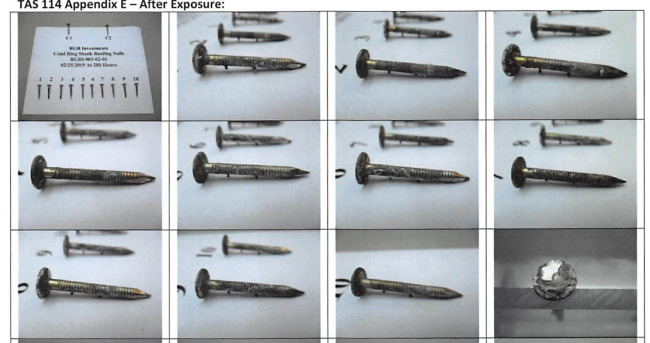

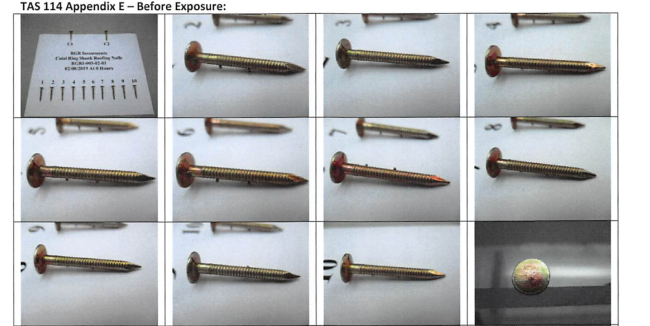

TAS 114 APPENDIX E
| Property | Test Method | Specimen NO. | Result | Requirement |
| Corrosion Resistance,(% of surface area)After 140 cycles | ASTM G85/TAS 114 App.E/ASTM D 610 |
1 2 3 4 5 6 7 8 9 10 |
0 0 0 0 0 0 0 0 0 0 |
≤5 ≤5 ≤5 ≤5 ≤5 ≤5 ≤5 ≤5 ≤5 ≤5 |
Statement of Compliance:
The product was tested in accordance with ASTM F 1667-15 Standard Specication For Driven Fasteners:Nails,
Spikes,and Staples and Miami-Dade Country Checklist #0195 for the certification and listing of roofing fasteners,The product
demonstrated compliance with ASTM F 1667 for a ring shank roofing nail,and met the requirements for corrosion resistance
after 140 cycles of TAS 114 Appendix E.
