2 Pin Female TE Connectivity AMP Connectors Econoseal J Mark Ii Series 174352-2

Price Negotiable

Price: Negotiation

MOQ: 100 units

Delivery Time: About 5-8 work days

Brand: YBADDVANCE

Product Description

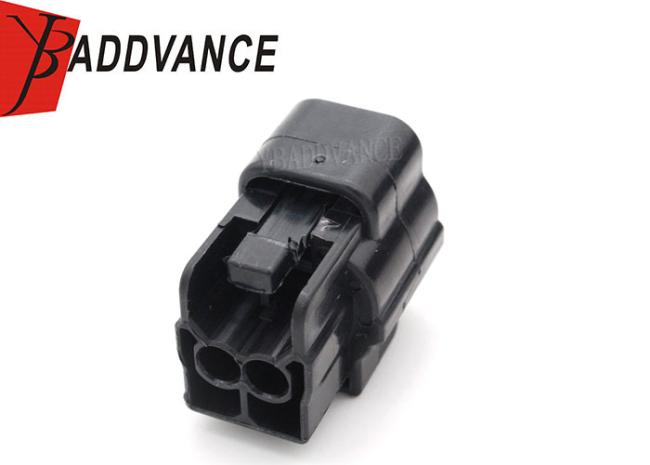

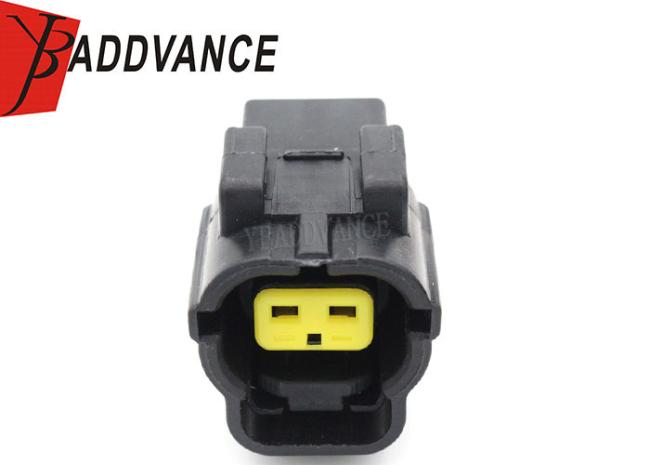

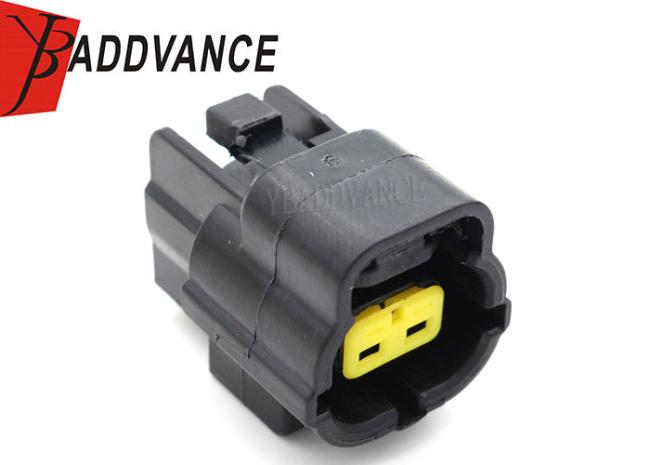

2 Pin Female AMP 070 Econoseal J Mark-II Series Connector 174352-2

Description

2 Pin Female AMP 070 Econoseal J Mark-II Series Connector

Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C

For Use With: AMP Econoseal J Mark II+ Series Power Contacts

16 - 22 awg (0.5 - 1.25mm)
Comes complete with housing, terminals, wire seals, lock

Housing: PA66
Lock: PA66
Terminal: Brass/Phosphor Bronze
Seal: Silicon Rubber

The Econoseal J-series connectors with waterproof protection is achieved by means of a wire seal which is inserted onto the wire and crimped simultaneously with the insulation support of the contact.

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name	2 Pin Female AMP 070 Econoseal J Mark-II Series Connector 174352-2
P/N	174352-2
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles
