3 Way Female Sumitomo Sealed Connectors MT Series Waterproof 6180-3241
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6180-3241 3 Way Female Sumitomo MT Series Waterproof Connector
Description
3 Way Female Sumitomo MT Series Waterproof Connector
Mating parts: 6187-3231/6187-3271/6188-0018
Height : 14.1 mm
Length : 23 mm
Width : 15 mm
MT 090,3WF TYPE T SLD NAT
High quality with reasonable price , please contact us if you have any concerns
Specification
|
Item name |
6180-3241 3 Way Female Sumitomo MT Series Waterproof Connector |
| P/N | 6180-3241 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

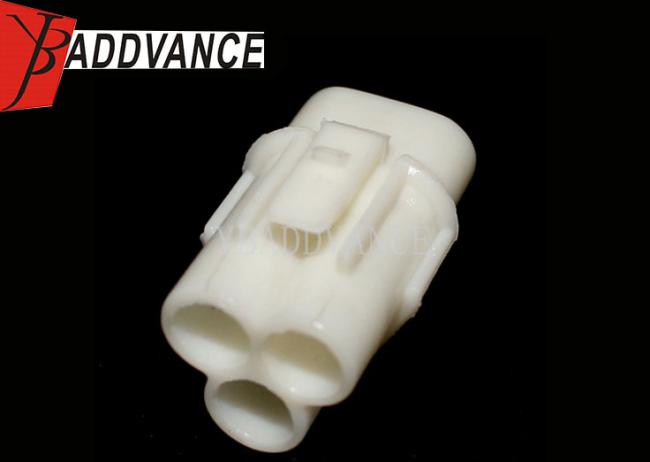

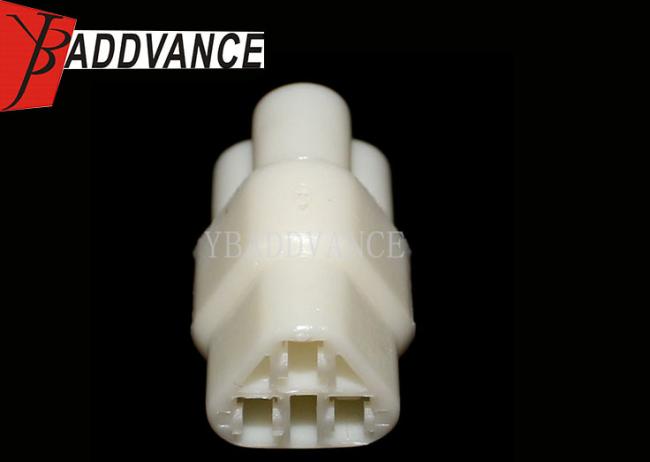

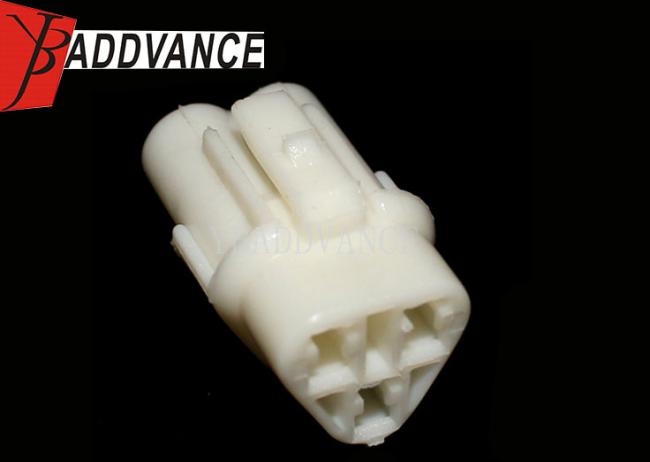

Product Picture Details
