6187-4561 4 Way Waterproof Sumitomo Automotive Connectors MT 090 2.3mm
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6187-4561 4 Way Waterproof MT 090 2.3mm Locking Connector
Description
4 Way Waterproof MT 090 2.3mm Locking Connector
Pitch : 2.3 mm
Height : 20 mm
Length : 40 mm
Width : 18.2 mm
Mating parts: 6180-4771
It included: 1 Housing connector + 4 Terminals +4 Wire Seals +1 Inner Seal
Specification
|
Item name |
6187-4561 4 Way Waterproof MT 090 2.3mm Locking Connector |
| P/N | 6187-4561 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

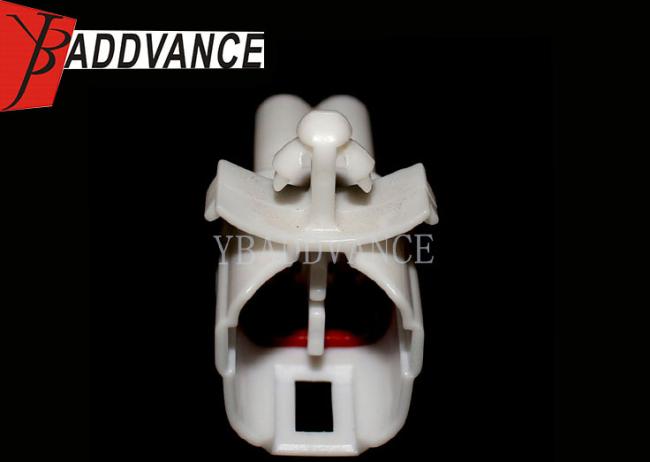

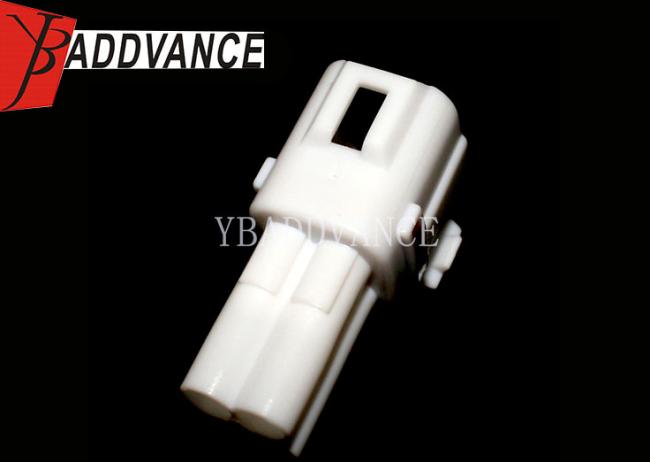

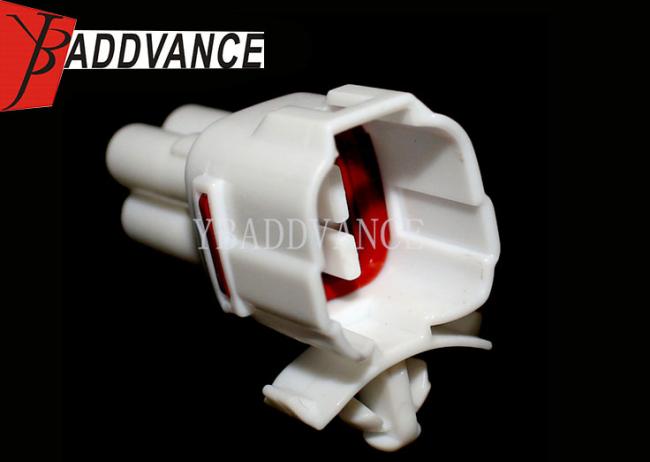

Product Picture Details
