Waterproof IPX7 Automotive Electrical Connectors 3 Way JST JWPF Series
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
JST-03R-JWPF-VSLE 3 Way JST JWPF Series Waterproof IPX7 Connector
Description
3 Way JST JWPF Series Waterproof IPX7 Connector
Height : 8.7mm
Length : 16.5 mm
Width : 5.5 mm
Pitch:2 mm
Mating parts: JST-03T-JWPF-VSLE
Current rating:3A
Wire Size AWG Max : 22AWG
Wire Size AWG Min : 26AWG
Specification
|
Item name |
JST-03R-JWPF-VSLE 3 Way JST JWPF Series Waterproof IPX7 Connector |
| P/N | JST-03R-JWPF-VSLE |
|
Wire Size |
22-26AWG |
|
Operating Temperature range |
-55℃~85℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

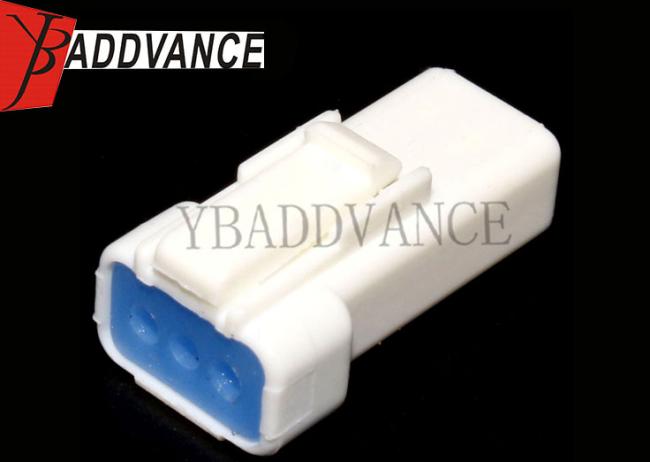

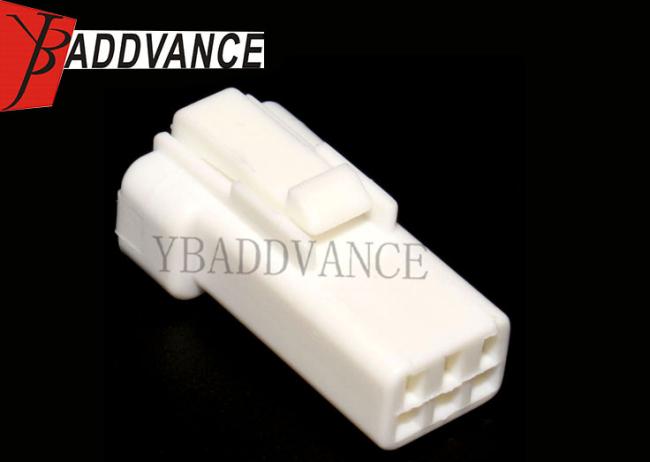

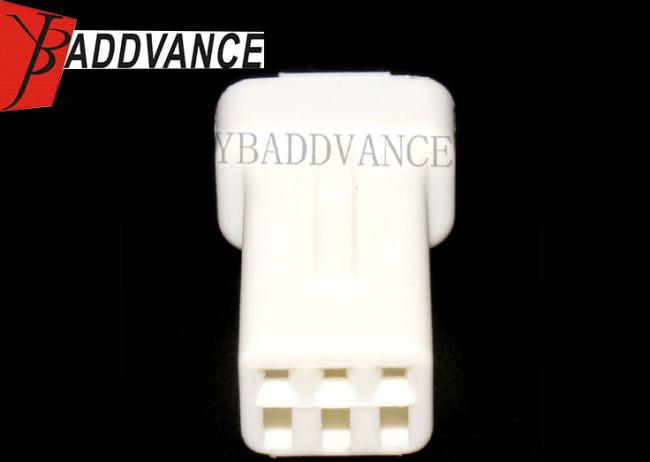

Product Picture Details
