Male Female AWG 18 Waterproof Electrical Connectors WHE10C
Price:
Negotiable
MOQ:
1 PC
Delivery Time:
2-7 days
Brand:
WKDQ
Product Description
Heavy duty connectors are rectangular industrial connectors designed to transmit power, data and signal in the toughest of conditions. In harsh environments with vibrations, risk of dust, temperature challenges and mechanical impact, our connectors provide a reliable solution with rock fall safe aluminum enclosures with protection degree IP65 .
● IP 65 Waterproof
● Anti-rust and anti corrosion
● Nickel Plating
● Cable glands with normal or multiple sealing
● The contacts are made by high quality brass, with silver or gold plated.
| No. | PART NO. | Entry Side | Number of contact | A (mm) |
B (mm) |
C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| Heavy-duty connector Voltage/Current: 500V/16A Surface: Sliver-plated Contact resistance: ≤1m ΩCross section: 1.0-2.5mm² (AWG 18-14) Tightening torque: 0.5Nm Stripping lenngth: 7mm |
 |
|||||||||
| 1 | WHE06C | Side entry | 6 | 80.0 | 43.0 | 52.2 | 35.0 | 32.0 | 70.0 | 4.3 |
| 2 | WHE06D | Top entry | 6 | 80.0 | 43.0 | 52.2 | 35.0 | 32.0 | 70.0 | 4.3 |

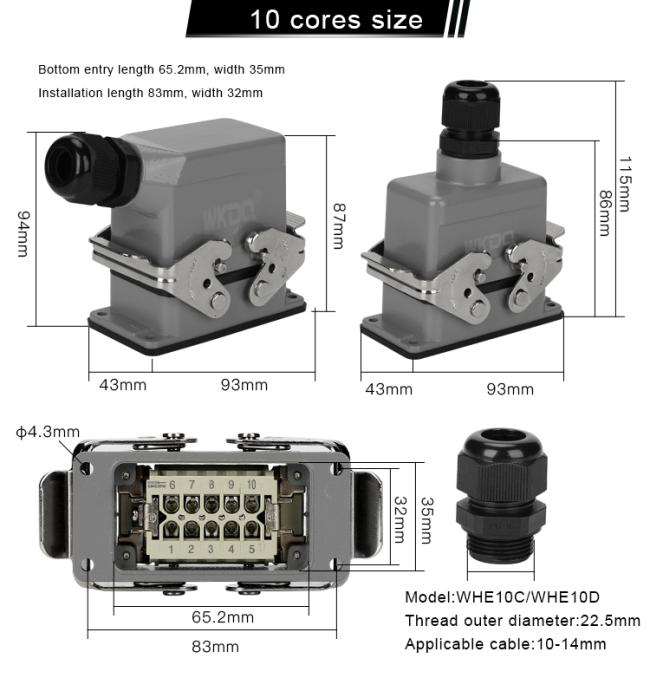

| 3 | WHE10C | Side entry | 10 | 93.0 | 43.0 | 65.2 | 35.0 | 32.0 | 83.0 | 4.3 |
| 4 | WHE10D | Top entry | 10 | 93.0 | 43.0 | 65.2 | 35.0 | 32.0 | 83.0 | 4.3 |
| 5 | WHE16C | Side entry | 16 | 113.0 | 43.0 | 85.5 | 35.0 | 32.0 | 103.0 | 4.3 |
| 6 | WHE16D | Top entry | 16 | 113.0 | 43.0 | 85.5 | 35.0 | 32.0 | 103.0 | 4.3 |
| 7 | WHE24C | Side entry | 24 | 140.0 | 43.0 | 112.2 | 35.0 | 32.0 | 130.0 | 4.3 |
| 8 | WHE24D | Top entry | 24 | 140.0 | 43.0 | 112.2 | 35.0 | 32.0 | 130.0 | 4.3 |
| 9 | WHE32C | Side entry | 32 | 113.0 | 80.5 | 86.0 | 73.0 | 60.0 | 103.0 | 4.5 |
| 10 | WHE32D | Top entry | 32 | 113.0 | 80.5 | 86.0 | 73.0 | 60.0 | 103.0 | 4.5 |
| 11 | WHE48C | Side entry | 48 | 140.0 | 80.5 | 113.0 | 73.0 | 60.0 | 130.0 | 4.5 |
| 12 | WH48D | Top entry | 48 | 140.0 | 80.5 | 113.0 | 73.0 | 60.0 | 130.0 | 4.5 |
