100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
Reverse Osmosis Water Machine is suitable for the domestic water and the underground water. It can remove the ions and small molecular weight organic compounds, such as bacteria, viruses, such as pyrogen.
Reverse osmosis device is the raw water after quartz sand filter, activated carbon filter, softening filter, precision filter, etc., and then through the pressure pump, use the aperture for 1/10000 microns (1/6000 of 1/6000 of the size of e. coli, virus)
Typical industrial Reverse osmosis system as following:
1.Process: Raw water pump - Sand filter - Carbon filter -Cartridge filter - High pressure pump-RO membrane host
Application: mineral water, direct drinking water, beverage&food,win.,ect
Water outlet:Water TDS ≤ 10000ppm, water TDS ≤ 250ppm
Production Capacity: 0.1m³ per hour
Raw water quality: Salt water
Mainframe dimensions: 86*80*84CM, the total weight of about: 100Kg

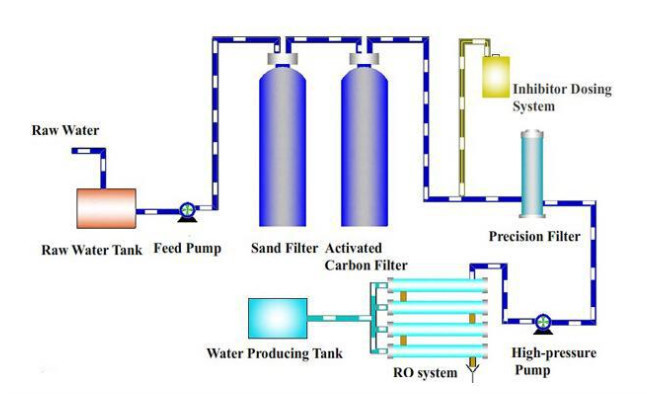

Water treatment process flow diagram:
| Model | Capacity(L/H) | Power(KW) | RO Membrane | Membrane pcs | Size L*W*H(mm) |
| RO-250 | 250 | 2.0 | 4040 | 1 | 1900*700*1400 |
| RO-500 | 500 | 2.0 | 4040 | 2 | 2250*700*1500 |
| RO-750 | 750 | 2.5 | 4040 | 3 | 2600*700*1500 |
| RO-1000 | 1000 | 2.5 | 4040 | 4 | 4000*900*1750 |
| RO-2000 | 2000 | 3.5 | 4040 | 8 | 4750*900*1750 |
| RO-3000 | 3000 | 4.5 | 8040 | 3 | 4850*900*1900 |
| RO-4000 | 4000 | 6.5 | 8040 | 4 | 5500*800*1900 |
| RO-5000 | 5000 | 8.0 | 8040 | 5 | 5500*900*2850 |
Detail Pictures :
