Description:

Reverse osmosis equipment technology is the world's most advanced and most energy efficient membrane separation technology. It is mainly use of a semi-permeable membrane permeate principle, a certain way to the kind of pressure is applied to it, the natural anti-penetration direction of the force, so that a concentrated solution to dilute aqueous solution of penetration, which is called reverse osmosis. By means of reverse osmosis element consisting of reverse osmosis unit. Because of the reverse osmosis membrane pore size is very small and therefore can effectively remove dissolved salts in water, colloids, microorganisms, organic matter (removal rate of 97% to 98%). The system has the advantages of low energy consumption, no pollution, simply process , easily operate.

Product Features:

1, continuous operation, high quality

2, no need to use acid regeneration

3, save the recoil and cleaning water

4, ultrapure water produced in high yield (up to 95% yield)

5, High recovery rate, low rate of waste water, high water utilization efficiency

6, no reserves and acid diluted acid transport facilities

7, reducing the shop floor area

8, the use of safe and reliable, to avoid worker contact with acid

9, reduce operation and maintenance costs

10, easy installation, low installation cost

Product maintenance:

1,Regularly checking the pretreatment device inlet and outlet pressure to confirm multi-media filters and activated carbon filters and other filtration devices rinse cycle;

2,Checking the import and export of precision filter differential pressure, to confirm the extent of contamination which filter;

3, Pretreatment system is provided with a softening device osmosis, resin softening device should be recognized exchange capacity and regeneration cycle to ensure timely before the expiry softening resin regeneration.

Main Equipments:

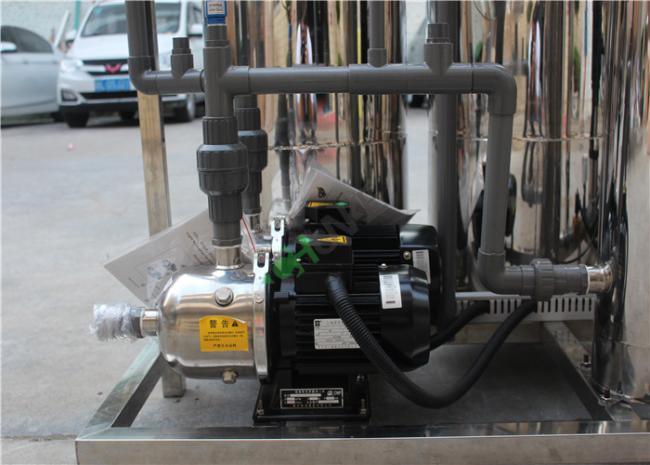

1. Raw Water Pump 1 set
2. Quartz sand filter 1 set
3. Active carbon filter 1 set
4. Sodium ion exchanger 1 set
5. Precision filter 1 set
6. The filter medium of the precise filter is made of micro-hole film, it is the modern advanced equipment for the filter and widely used in medicine, electrical, food industries.

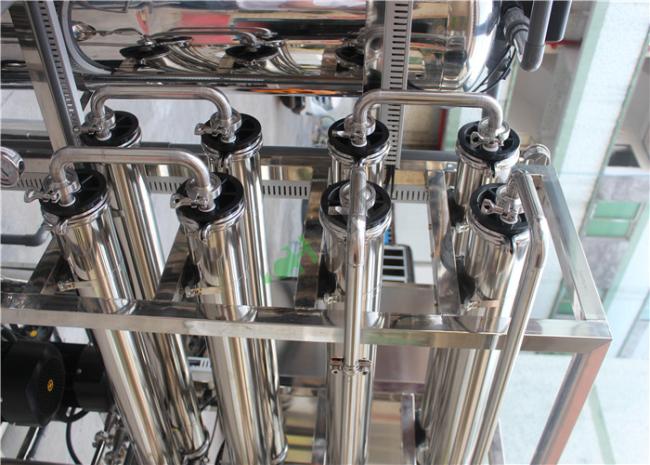

7. Reverse osmosis 1 set
8. Ultraviolet radiation sterilizer 1 set
9. Ozone generator 1 set
10. Gas-liquid mixing pump 1 set
11. Pure water tank

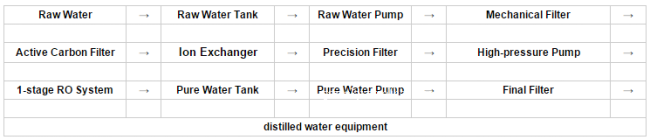

Working procedure:
