Pharmaceutical grade stainless steel sanitary cartridge filter housing SS304 material spring water production

CHUNKE Stainless Steel Multi-Cartridge Filter Housings provide a high quality solution for high-volume filtering at reduced pricing. Ideal for use in membrane desalination systems, pre-filtration, high purity water, post- filtration, food & beverage, industrial facilities and similar applications.

In Cartridge Filter Housing , you can use Polypropylene/Microglassfiber/Cotton cartridge.

Industry Applications:

1. Reverse Osmosis Pretreatment
2. Chemical & Petrochemical
3. Dairy
4. Drinking Water
5. Food and Beverage
6. Liquid Desalination
7. Electronics Fuel Material Extraction
8. Pharmaceuticals & Biotechnology
9. Pulp & Paper
10. Wastewater Reuse/Recycled Water
11. Power Generation
12. Industrial Water Treatment

Features and Specifications:

• Band V-Clamp Top Closure for Quick and Easy Cartridge Replacement
• Side-In and Side-Out Connections
• Built-In Drain and Vent Ports
• Side Ports for Inlet/Outlet Pressure Gauges
• Available with Threaded or Flanged Fittings for Easy Installation
• Housings are Compatible with Standard 2.5” OD × 30” Length Melt-Blown or Wound Polypropylene Filter Cartridges
• Materials of Construction: Available in 316L Stainless Steel with Electropolish Finish or in 304 Stainless Steel with Poly Coat Finish.
• Operating Limits: Maximum Operating Pressure: 150 psi (10 bar) o Maximum Operating Temperature: 250°F (120°C)

Available Options

• Duplex systems

• 316 stainless steel housing

• Differential pressure switch & gauge

• Inlet / Outlet sample valves

• Inlet / Outlet pressure gauges

• Skid mounted pre-plumbed and wired

• Drain valve

• Vent valve

• Sediment cartridges

• Activated carbon cartridges

• Electro-polished housing

• Isolation valves

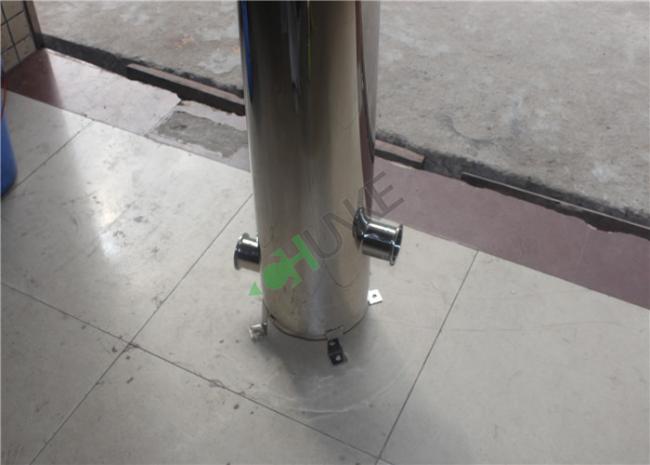

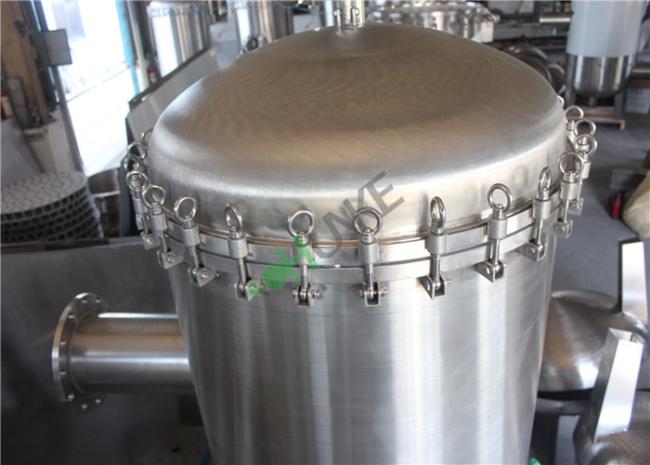

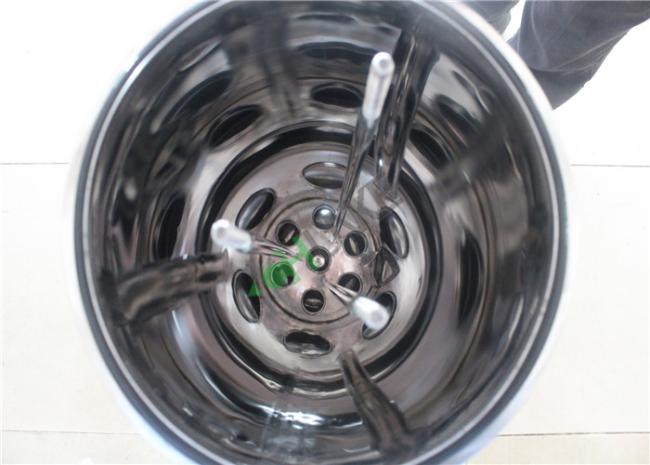

Cartridge Filter Housing Details
