Industrial Reverse Osmosis Membrane RO Plant 2000 Lph Sewage Water Treatment
Industrial Reverse Osmosis Membrane Ro Plant 2000 Lph Sewage Water Treatment

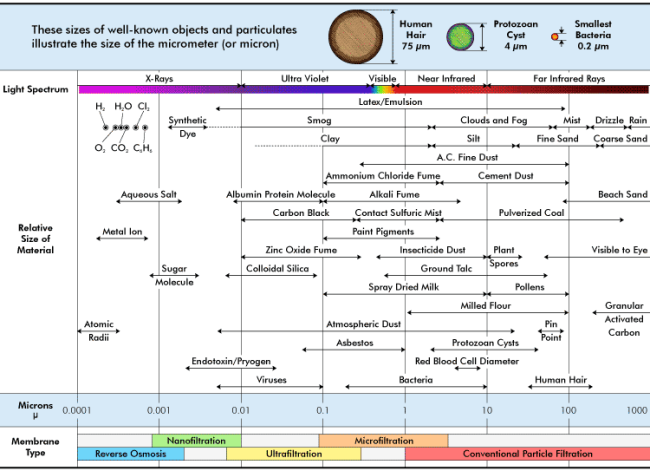

RO (Reverse Osmosis) water filtration system is the most effective and popular drinking water treatment solution due to its stable salt rejection features and effective filtration result to removal the bacteria, virus, microbiological contaminants, organic contaminants, metal ion etc. the following chart is the comparison chart of RO system against the other type of filtration method.
What's reverse osmosis system?
RO(Reverse Osmosis, RO), the basic working principle is : using of a special high pressure
pump, increasing pressure to raw water, then force raw water penetrating through reverse
osmosis membrane under the pressure. Only water molecules and solvent less than microns
can pass through the RO membrane.
What are the RO system parameter?
| Capacity of pure water | 1000 LPH |
| Electrical power | 220V / 380V |
| Rated power | 2.0Kw/H |
| Desalting rate | 95-99% |
| Water recovery rate | 60-75% |
| Conductivity of raw water | ≤400μs |
| Conductivity of pure water | ≤10μs |
RO water filter is to produce high quality drinking water for drinking or beverage factory, which include sand filter, carbon filter, softener, micron filter and RO system.
1. Raw water pump-- provide the pressure to sand/carbon filter
2. Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on
4.Softener ---Hard water is softened by removing the calcium magnesium it contains.
5. Micron filter--prevent any deposition of large Particles, some bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to RO membrane, at least 2.0 MPA
7. RO system--RO system is the heart part of pure water plant. The RO systems are capable of removing over 99% of ions, bacteria, particles and 98% of organics and silica, 85 % of B. simply operation and life span.
| Model | Capacity(L/h) | power(KW) | Membrane | EntranceDiameter(mm) | floor space(M2) |
| RO-0.5 | 500 | 2 | 4040*2 | Φ25 | 2 |
| RO-1 | 1000 | 2 | 4040*4 | Φ32 | 3 |
| RO-2 | 2000 | 4 | 8080*2 | Φ40 | 4.5 |
| RO-3 | 3000 | 5 | 8080*3 | Φ50 | 12 |
| RO-4 | 4000 | 7 | 8080*4 | Φ50 | 17 |
| RO-5 | 5000 | 7.5 | 8080*5 | Φ50 | 18 |
| RO-10 | 10000 | 16 | 8080*10 | Φ63 | 25 |
| RO-15 | 15000 | 21 | 8080*15 | Φ75 | 30 |
| RO-20 | 20000 | 30 | 8080*20 | Φ90 | 40 |
.
Main Technological Data:
| Model | Flow rate (L/h) | Power(KW) | Water use efficiency | RO membrane | Dimension L X W X H(mm) |
| RO-250L | 250 | 1.5 | ≥ 15% | 4040 | 1550X620X1670 |
| RO-500L | 500 | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
| RO-750L | 750 | 2.5 | ≥ 50% | 4040 | 1870X630X1850 |
| RO-1000L | 1000 | 2.5 | ≥ 50% | 4040 | 1870X650X1850 |
| RO-2000L | 2000 | 3.5 | ≥ 50% | 4040 | 2440X650X1750 |
| RO-3000L | 3000 | 4 | ≥ 50% | 4040 | 2440X620X1850 |
| RO-5000L | 5000 | 7.5 | ≥ 50% | 8040 | 2000X900X1800 |
| RO-6000L | 6000 | 9.5 | ≥ 60% | 8040 | 3000X900X1800 |
| RO-8000L | 8000 | 13.5 | ≥ 60% | 8040 | 3000×900×1800 |
| RO-9000L | 9000 | 14 | ≥ 60% | 8040 | 4000X900X1800 |
| RO-10T | 10T/H | 19 | ≥ 60% | 8040 | 3000X900X1800 |
| RO-12T | 12T/H | 19.5 | ≥ 60% | 8040 | 4000X900X1800 |
| RO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 |
| RO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 |
| RO-30T | 30T/H | 55 | ≥ 60% | 8040 | 7000X900X1950 |
.
Detail Pictures :
