UF water treatment plant 30TPH Ultrafiltration System With ozone generator for shrimp aquaculture

The main targets of marine aquaculture are fish, shrimps and crabs, shellfish,

algae and other economic animals such as sea cucumbers.

Marine aquaculture is an important part of the aquaculture industry.

Inlet: Sea water

Outlet:Sea water remove Colloid,silicon,protein,microbial and macromolecule organic matter.

Application:shrimp aquaculture.

Remove bacteria and various germs. Ensure the quality and safety of the culture and reduce the risk

Following is detail of 30T Ultrafiltration System:

1.1, raw water quality: seawater

1.2, water quality: water effluent is clear and transparent, no visible to the naked eye, turbidity ≤ 1 NTU, microbial removal rate ≥ 99%;

1.3, water production: 30T / H (25 ° C);

1.4, run 20 hours a day. Run more than 350 days per year;

1.5, power supply: three-phase five-wire system, 220V/380V/50Hz;

1.6, rated total power: 11.5kw;

1.7, installation conditions: indoor installation; ambient temperature: 5-40°C;

1.8, the total weight is about: 8000KG;

In the process of aquaculture, it is required to raise water first, and raising water is always the core. Modern aquaculture requires farmers' aquaculture management mode to gradually intensify and improve the management level of water ecosystems in the aquaculture process. Shrimp culture in the actual aquaculture production process, the quality of the water quality and sediment of the shrimp pond, has a significant impact on the breeding harvest. In the feed-fed farming, excess feed remains at the bottom of the pond, causing acidification of the sediment, excessive hydrogen sulfide, and production of toxicity-inhibiting substances. The seasonal temperature changes cause the nitrite and ammonia nitrogen in the water to increase, the dissolved oxygen decreases, and the algae multiply to cause eutrophication and other water bodies. The phenomenon of ecological change is the most important problem encountered by the majority of shrimp farmers.

This standard applies to the fishery waters of sea and freshwater such as spawning grounds, fishing baits, wintering fields, migratory passages and aquaculture breeding areas.

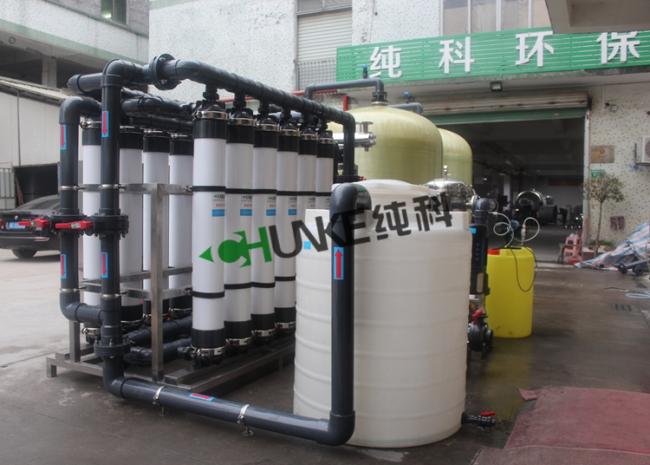

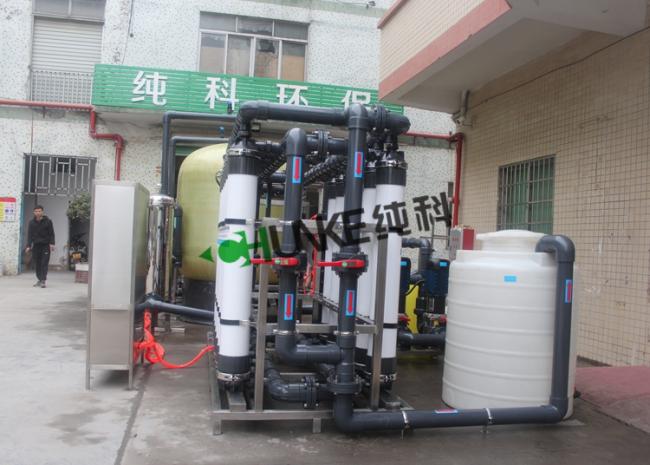

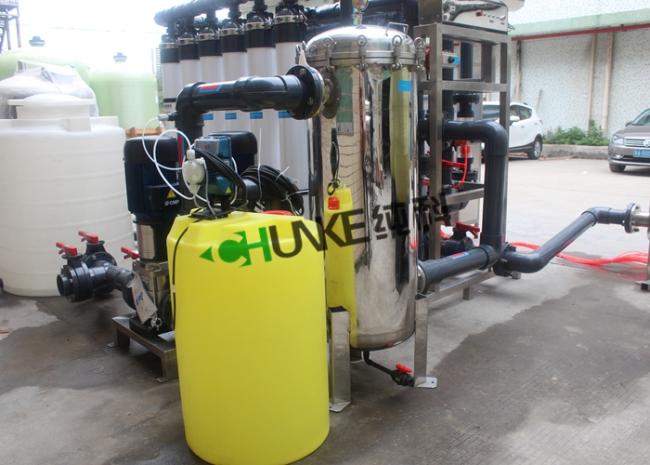

Picture of Ultrafiltration System 30T/H:
