Reverse Osmosis Sea Water Filtration Plant / Seawater RO System 5m³/H
Price:
Discussible
MOQ:
1 unit
Delivery Time:
7-15 days
Brand:
Chunke
Product Description
5m³/H Reverse Osmosis Seawater Saltwater Desalination Plant Technical Configuration
CK-RO-5000L(A1)One stage Reverse osmosis water equipment configuration
| NO. | Sea Water Filtration Plant Description | Origin/brand | Quantity |
| 1 | Raw water pump(CHL8-40 SS304 ) | CNP | 1 Set |
| A. Flow: 9.0m3/H Head: 33m K = 1.5kw | |||
| B. Including: inlet valve, return valve, pipe fittings and so on | |||
| 2 | Sand filter φ750×1975MM | CHUNKE | 1 Set |
| A. FRP tank | CHUNKE | ||
| B. Manual Valve F56D | Runixn | 1 Set | |
| C. Top&bottom water distributor | 1 Set | ||
| 3 | Carbon filter φ750×1975MM | CHUNKE | 1 Set |
| A. FRP tank | CHUNKE | ||
| B. Manual Valve F56D | Runixn | 1 Set | |
| C. Top&bottom water distributor | 1 Set | ||
| 4 | 5μm Cartridge filter | CHUNKE | 1 Set |
| A. Model: 7 core material: SS304 | CHUNKE | 1 Set | |
| B. 30″×5μm PP filters | China | 7pcs | |
| 5 | High pressure pump CDLS8-14 | CNP | 1 Set |
| A. Flow: 9.0m3/h Head: 122m | |||
| B. Material: SS304 K=5.5KW | |||
| 6 | Reverse osmosis water production: 5m3/h, desalination rate:96～99% | 1 Set | |
| A. Membrane housing 8040-2core FRP | CHUNKE | 2pcs | |
| B. Membrane element ULP21-8040 | 4pcs | ||
| C. 304 Stainless steel frame | 1Set | ||
| D. Water inlet solenoid valve | 1PC | ||
| E. Concentrated water solenoid valve | 1 Set | ||
| F. High pressure water inlet valve | 1PC | ||
| G. Concentrated water flow control valve | 1 Set | ||
| 7 | Pipe fittings, valves U-PVC | China | 1 Set |
| 8 | Electronic control system | CHUNKE | 1 Set |
| Main cotrol box:PC programmable automatic control, France Schneider contactors, thermal relays, knobs, switches, lights, Korean pressure controller, time controller. | |||
| 9 | Filter Media | China | 1 Set |
| A. Quartz sand | China | 800KG | |
| B. Activated carbon | China | 175KG | |
| 10 | Pressure gauges | China | 1 Set |
| A. Reverse osmosis pressure gauge 0～25kgf/ cm2 | China | 4pcs | |
| B. High pressure pump low pressure protection switch | China | 1PC | |
| C. Reverse osmosis system High voltage protection switch | China | 1PC | |
| D. System pressure gauge 0～7kgf/ cm2 | China | 2pcs | |
| E. Pure water conductivity meter | China | 1 Set | |
| F. Water - producing conductivity meter | China | 1 Set | |
| 11 | Flowmeter (5-30 m3/h) | China | |
| A. RO Water flow meter 20GPM | China | 1 Set | |
| B. RO Concentrated water flow meter 10GPM | |||
| C. RO Return flow meter 10GPM | China | 1 Set | |
| 12 | Washing equipment | ||
| A. Wleaning pump (CHL4-40, stainless steel) | CNP | 1 Set | |
| Flow: 7.0m3/ H Head: 19m K=0.75kw | |||
| B. Water tank cleaning system 300L | 1 Set | ||
| C. Cleaning filters 30″×5μm PP filters/φ230×750MM | 1 Set | ||

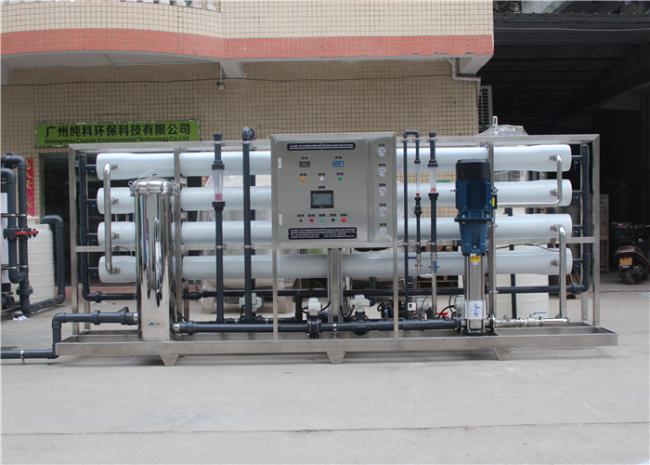

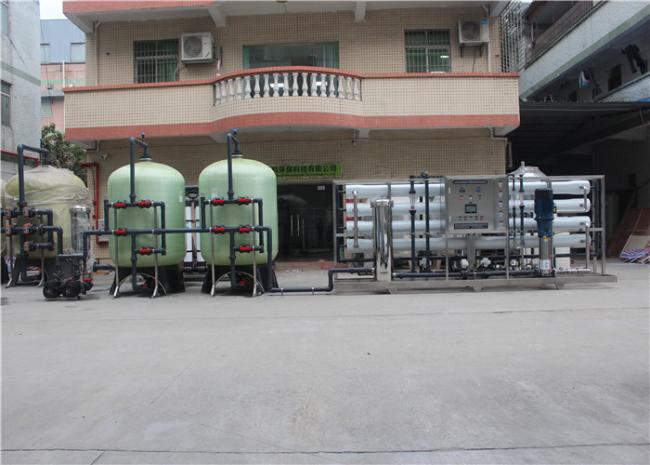

Detail Pictures :
