FRP / SS304 RO Seawater Desalination Equipment , Reverse Osmosis Water Treatment System
FRP/SS304 Ro Seawater Desalination Plant / Reverse Osmosis Drinking Water Treatment System
CK-SW-500L/H RO Seawater Desalination Plant
About our company
Our company is a scientific enterprise which is specialized in development,production,sales and service of water treatment and accessories over 6 years.We are insisting on scientific innovation,bring forward brand strategy,providing high quality products and implementing first class service for all over the world customer.We have won high praise and trust from the new and old customer,hope we will cooperation.
1. CK-SW-500L/H System Configuration List:
| NO. | Name | Specification | Quantity | Remark |
| 1 | Raw Water Tank |
Capacity:1000L Material:Anti-corrosive PE Accessories: supporting pipeline valves, Water level control switch |
1 set | Provided by customer |
| 2 | Raw Water Pump |
Model: CHL2-40 Flow passage components material: SS316L Design flow:2000L/ H Delivery head: 29m Motor power: 0.55KW Include: pipe, valves, base |
1 set | CNP |
| 3 | Dosing System (flocculant) |
Scale dosing system Flow: 1.5L/H Range:60M Dosing tank: 40L (PE)
|
1set | SEKO |
| 4 | Mechanical Filter |
Model: φ400×1650MM Material: Fiber Reinforce Plastic RUNXIN backwash valve pipe, distributors |
1 set | Pentair |
| 5 | Dosing System (reductant) |
Scale dosing system Flow: 1.5L/H Range:60M Dosing tank: 40L (PE)
|
1set | SEKO |
| 6 | Dosing System (scaling inhibitor) |
Scale dosing system Flow: 1.5L/H Range:60M Dosing tank: 40L (PE)
|
1set | SEKO |
| 7 | 5μm Security Filter |
Material: PVC Filter Size: 20 "× 5μm Cartridge quantity: 3 pcs |
1set |
CHUNKE |
| 8 | 1μm Security Filter |
Material: PVC Filter Size: 20 "× 5μm Cartridge quantity: 3 pcs |
1set |
CHUNKE |
| 9 | Seawater High Pressure Plunger Pump |
Model: 3DP35 Material:SS316 Flow:2000L/H6.0MPa,K=4.0kw 280RPM safety valve, and pipe fittings |
1 set | |
| 10 | Reverse Osmosis Water Desalination System |
Water production capacity: 500L/H Desalination rate:96%～99% Membrane housing: 4040-1; 3pcs. Material: FRP,1000PSi Toray membrane element TM810; 3pcs Machine frame: SUS304 Feed water valve:φ32MM Concentrated water valve:φ25MM Flushing water inlet electric valve: φ25MM Concentrated Water Flow Regulator: φ25MM |
1set | |
| 11 | RO Washing System | 1set | CHUNKE | |
| Washing pump |
Model: CHL2-30 Material:SS304 Flow:2m3/ H,Range: 21m ; K=0.55kw water inlet valve, check valve and pipe fittings |
1set |
CNP |
|
| Washing tank |
Capacity:100L Material:Anti-corrosive PE |
1set | CHUNKE | |
| Washing filter |
Material:SS304 Filter Size: 20 "× 5μm Cartridge quantity: 3 pcs |
1set | CHUNKE | |
| 12 | Electronic Control Box |
Mitsubishi PLC programmable controller, Korean pressure controller and time controller, start & stop control automatically by the water level in the raw water tank and the pure water tank |
1set | Mitsubishi |
| 13 | Filter Material |
Quartz sand: 200KG PP filter cartridge: 25 pcs |
1 batch | |
| 14 | Pressure Instruments |
A, Desalination high pressure gauge 0～100kgf/cm², 3pcs B, High-pressure pump low pressure protection switch, 2pcs C,System pressure gauge, 0～6kgf/ cm², 3pcs D, raw water conductivity meter E, pure water conductivity meter CM230 F, Mitsubishi PLC controller |
1set | |
| 15 | Flow Meters |
A, Pure water flowmeter: 5GPM B, Concentrated water flowmeter: 10GPM |
1set | |
| 16 | Inspection Instruments |
Handheld PH meter Handheld TDS device |
1 pcs | |
| 17 | Pure Water Tank |
Capacity: 1000L Material:Anti-corrosive PE Accessories: inlet /outlet water valves, Water level control switch |
Provided by customer |

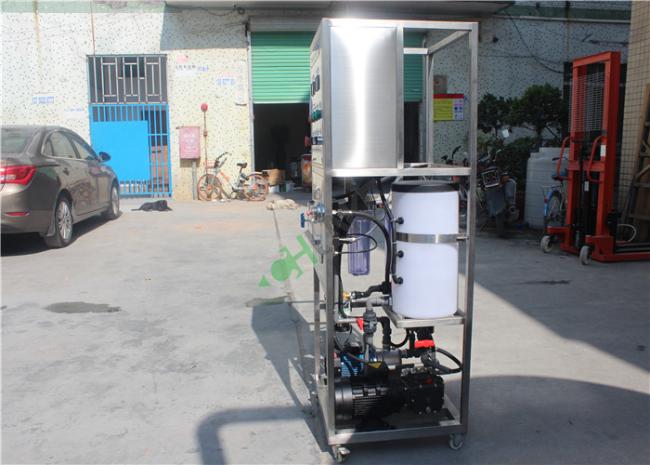

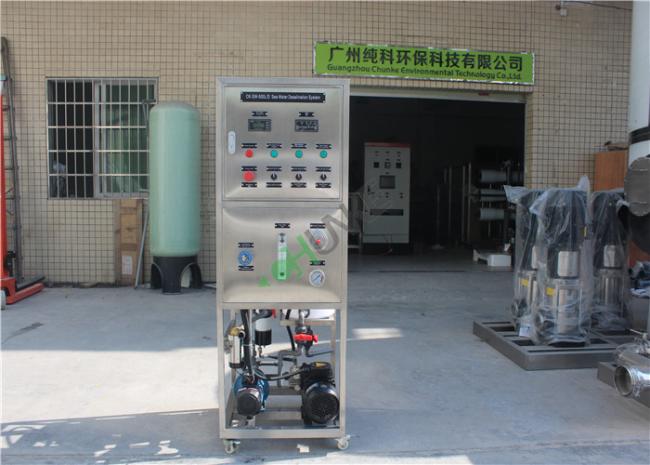

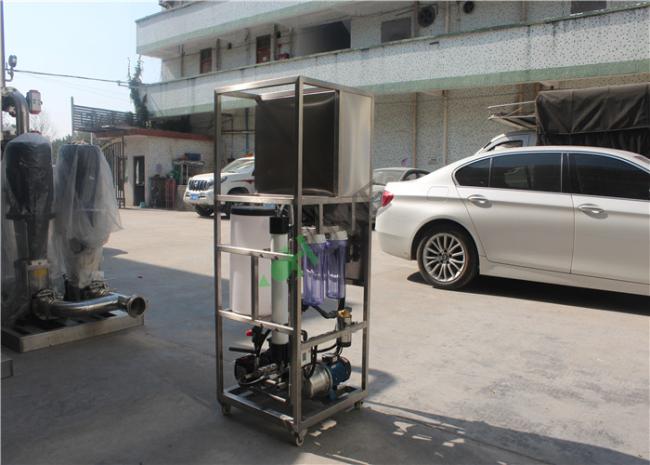

More pictures :
