High Speed Brackish Water Treatment Plant For Industrial Water 3000L Per Hour
Price:
Negotiable
MOQ:
1Set
Delivery Time:
28-40 days
Brand:
CHUNKE
Product Description
3000L Per Hour Water Filter System Brackish Water Ro System Price
Filter Brackish Di Drinking Ro Water Treatment System Ro Water Purifier Plant
| Item | Equipment Name | Origin | Qty | |
| 1 | Raw water pit 3m3 | provided by customer | 1pc | |
| A. Material: PE | ||||
| B. water inlet and outlet control valve | 1set | |||
| C. Water level control switch | 1pc | |||
| 2 | Raw water pump (CHM8-4) Fluorine plastic material) | 1set | ||
| A.Capacity: 6m3/H Head: 29m K=1.1Kw, SS316 material | ||||
| B.Inlet valve, return valve, check valve | 1set | |||
| 3 | Scale dosing system(flocculant) | SEKO | 1set | |
| A.Capacity:1L/h Head:35m | ||||
| B. U-PVC control valve | 1pc | |||
| C. Level control switch | 1pc | |||
| E. Dosing tank 40L | 1pc | |||
| F. Debugging Pharmacy | 25L | |||
| 4 | Quartz sand filter φ800×1850mm | 1set | ||
| A. FRP tank Material:(FRP) | ||||
| B. Flange tap butterfly valve | 1pcs | |||
| C. The upper and lower water distributor, the center collector pipes | 1set | |||
| D.Water purification quartz sand | 1000KG | |||
| 5 | Activated carbon filtersφ800×1850mm | 1set | ||
| A. FRP tank Material:(FRP) | ||||
| B. Flange tap butterfly valve | 1pcs | |||
| C. The upper and lower water distributor, the center collector pipes | 1set | |||
| D.Activated carbon | 275KG | |||
| 6 | Scale dosing system(antisludging agent) | SEKO | 1set | |
| A.Capacity: 1L Head: 35m | ||||
| B. U-PVC control valve | 1pc | |||
| C. Level control switch | 1pc | |||
| E. Dosing tank 40L | 1pc | |||
| C.Debugging Pharmacy | 5KG | |||
| 7 | Scale dosing system( Reducing agent ) | SEKO | 1set | |
| A.Capacity: 1L Head:35m | ||||
| B. U-PVC control valve | 1pc | |||
| C. Level control switch | 1pc | |||
| E. Dosing tank 40L | 1pc | |||
| C.Debugging Pharmacy | 5kg | |||

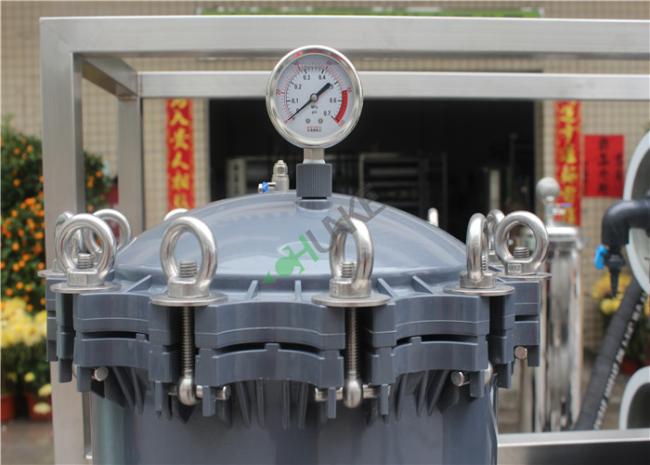

| 8 | 5μm Security filters | 1set | ||
| A. Material: U-PVC | 1set | |||
| B. φ230×750MM | ||||
| C.40″×5μm PP filter cartridge | 5pcs | |||
| 9 | High-pressure pump CDLF12-16+CDH12-18 | CNP | 1set | |
|
A.Flow:8M3/H, Head: 398m, Power: 22KW SS316 |
||||
| B.Variable frequency soft starter | ||||
| C.Variable frequency soft starter | 1set | |||
| 10 | One-stage Desalination system Water yield:3m3/h, Desalination rate:96～99%,System water utilization: 40%-50% | 1set | ||
| A. Membrane housing 8040-1Material:FRP 1000PSI | Made in China | 3pcs | ||
| B. Membrane elements SW-8040 | VONTRON | 3pcs | ||
| C. A3 carbon steel paint rack Frame | 1set | |||
| D.Water electric valve DN50 | 1set | |||
| E.Concentrated water electric valve DN40 | 1set | |||
| F. High pressure water inlet valve DN40 | 1pc | |||
| G. Concentrated water flow control valve DN32 | 1pc | |||
| H. Inlet check valve DN50 | 1pc | |||
| I. Drainage check valve DN32 | 1pc | |||
| J. Pressure relief valve DN32 | 1set | |||
| 11 | Pressure meter / water quality detector | 1set | ||
| A. Desalination high-pressure gauge 0～60kgf/ cm2 | 2pcs | |||
| B. Pretreatment pressure gauge 0～7kgf/ cm2 | 4pcs | |||
| C. Low voltage protection switch P-06 | 1set | |||
| D. Temperature / PH display instrument | 1set | |||
| E. Raw water conductivity meter(large screen) | 1set | |||
| F. Producing water conductivity meter(large screen) | 1set | |||

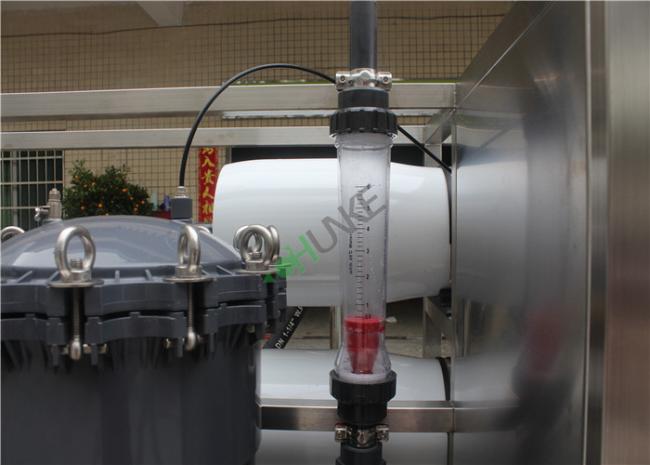

| 12 | Flow Meter 0-4000L/H | Made in China | ||
| A. Producing water flow meter(Piping Type) | 1set | |||
| B. Concentrated water flow meter(Piping Type) | 1set | |||
| 13 |
Cleaning system
|
1set | ||
| 1)RO clean water pump SS304 | CNP | 1set | ||
| Capacity:7m3/h,Head:23M K=1.1Kw 380V50HZ | ||||
| Including: inlet valve, return valve, check valve and so on | ||||
| 2) Clean water tank 500L | 1set | |||
| A. Size: φ730×810mm | ||||
| B. Water inlet and outlet control valve | ||||
| C. Water level control switch | ||||
| D. Tank material: PE | ||||
| 3) Clean filter PFS-5P-40 | 1set | |||
| A. Material: U-PVC | 1set | |||
| B. Size: φ200×750MM | ||||
| C.30″×5μm PP filter cartridge(5μm) | 5pcs | |||
| 14 | Connecting pipe fittings, valves | 1set | ||
| A. DN25-DN65 valves, pipes (U-PVC) | Sanding | 1set | ||
| B. DN32-DN50 valves, fittings(316SS) | 1set | |||
| 15 | Electronic Control System | 1set | ||
| A. air switch | Schneider | 1set | ||
| B. AC contactor | Schneider | 1set | ||
| C. Thermal overload protection | Schneider | 1set | ||
| D. Insurance tube | Schneider | 1set | ||
| E. Indicator light | Schneider | 1set | ||
| F. PLC controller | Mitsubishi | 1set | ||
| G. Sound and light alarm | Schneider | 1set | ||
| 16 | Desalination tank 5m³ | provided by customer | 1set | |
| A. Stainless steel or RC structure | ||||
| B. Water inlet and outlet control valve | 1set | |||
| C. Water level control switch | 1set | |||

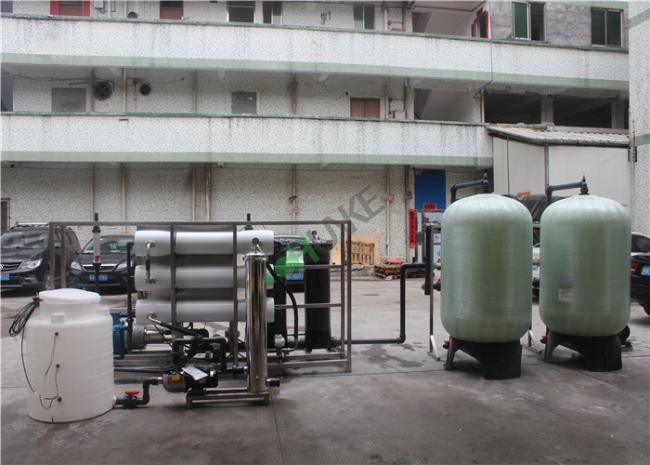

Brackish Water Treatment Plant detail pictures :
