Food Grade Clear Water Filter Cartridge Housing For Water Purifiacation 10 Inch

Notes editing

1. The filter is configured according to the principle of "first rough, then fine", and the order cannot be reversed.

Precision filter standard configuration

2. The actual flow rate, pressure and temperature of compressed air through the filter shall not exceed the specified value of the nameplate.

3, pay attention to the installation of filters in and out of the location.

4. The filter installation should be vertical.Leave a certain height from the ground, easy to replace the filter element.

5. The filter element shall be replaced under any of the following circumstances:

A. the effect of filter is obviously deteriorated;

B. The differential pressure represents a value exceeding 0.07MPa;(note: initial pressure drop of filter element < 0.015mpa);

C. Duration of use: 8000h for FC, FT and FA and 2000h for FH;

6. For the filter without automatic drainage device, the ball valve shall be opened regularly to remove water in the filter shell.Usually no less than 1-2 times per shift;

7, the filter inlet temperature does not exceed 66 ℃;

8. If the working pressure is lower than the standard value (0.7mpa), the actual processing capacity of the filter is modified according to the

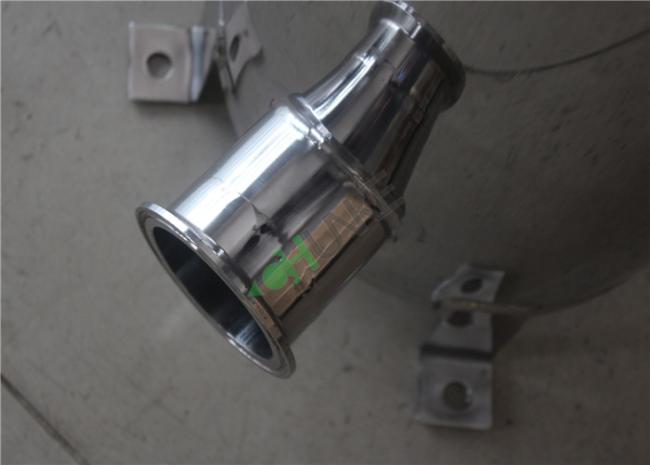

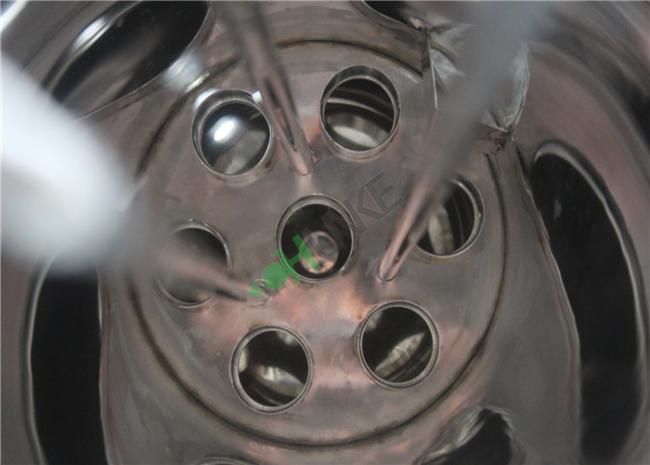

Cartridge Filter Housing pictures :
