Industrial Well Water Desalination 15T/H Brackish Water Purification System using solar energy for mineral water plant
Industrial Well Water Desalination 15T/H Brackish Water Purification System using solar energy for mineral water plant
What is brackish water system?
The brackish water desalination device is a water treatment device that combines the technology of micro-computer technology and mechatronics technology by utilizing the principle of reverse osmosis technology. The desalination of brackish water is actually the desalination of salt water, which desalinates the salt water or reaches the drinking water standard after treatment. The reverse osmosis technology used in the brackish water desalination device means that in the drinking water, when the chloride exceeds a certain range (national standard 250 mg/L), it is regarded as brackish water. Since the chloride is not used for other substances, it can be used. A certain filter material is removed, and the chloride removal process is generally treated by reverse osmosis technology, which is a water treatment technology developed in recent years, especially suitable for the treatment of chloride in water, brackish water desalination The device is based on this latest reverse osmosis technology.
Detail of 15000L well water desalination machine:
| NO. | Device Description | Origin/brand | Quantity |
| 1 | Raw water tank 20-50m3 | User-supplied | 1Set |
| 2 | Antibacterial Dosing system | SEKO | 1Set |
| 3 | Raw water pump (CHM20-4) | CNP CHINA | 2 Sets |
| 4 | Quartz sand filter φ1500×2400mm | CHUNKE | 1Set |
| 5 | Activated carbon filter φ1500×2400mm | CHUNKE | 1Set |
| 6 | Antiscalant Dosing system | SEKO | 1Set |
| 7 | Reducing agent Dosing system | SEKO | 1Set |
| 8 | 5um Security filter 40 inch 15 core | CHUNKE | 1Set |
| 9 | High pressure pump (CDMF20-14) | CNP CHINA | 1Set |
| 10 | Reverse osmosis desalination unit Water production: 15.0m3/h, salt rejection rate: 96～99%, system water utilization rate: 60-65% | 1Set | |
| Contain | A. Membrane housing 8040-4 Material: FRP 300PSI | CHINA | 4 PCS |
| B. Membrane element AG-8040 | USA GE | 16 PCS | |
| C. 304 stainless steel frame | CHUNKE | 1Set | |
| 11 | Pressure gauge | CHINA | 1Set |
| 12 | Flow meter 0-25T/H | CHINA | |
| 13 | Flushing / cleaning water tank 1000L | Guangzhou | 1PC |
| 14 | Flush / clean filter 40 inch 7 core (Security filter) | CHUNKE | 1Set |
| 15 | Flushing water pump (CHM12-3) 304 stainless steel | CNP CHINA | 1Set |
| 16 | Pure water tank 20-30m3 | User-supplied | 1Set |
| 17 | Connecting pipe fittings | CHINA | 1Set |
| 18 | Electronic control system | CHUNKE | 1Set |
| Taiwan Weinview man-machine interface touch screen. Japan Mitsubishi PLC automatic control, France Schneider Electric components, RO membrane automatic flushing, the raw water tank and pure water tank water level control automatically stop, low voltage, high voltage, overheating, overcurrent, phase loss protection and Alarm function, reserved manual operation function for debugging and emergency treatment. | |||

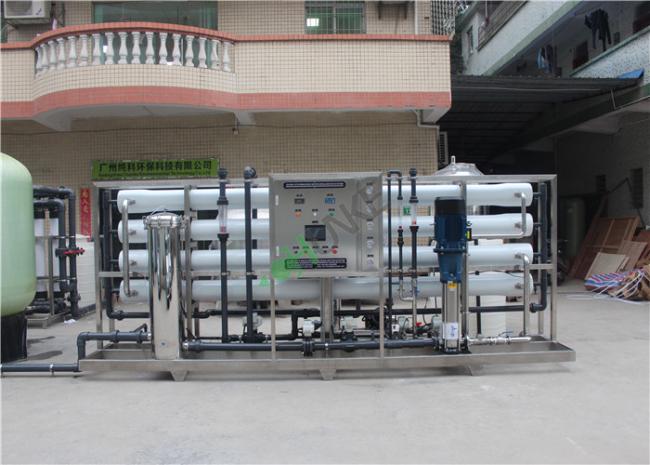

Picture of 15000L well water desalination machine:

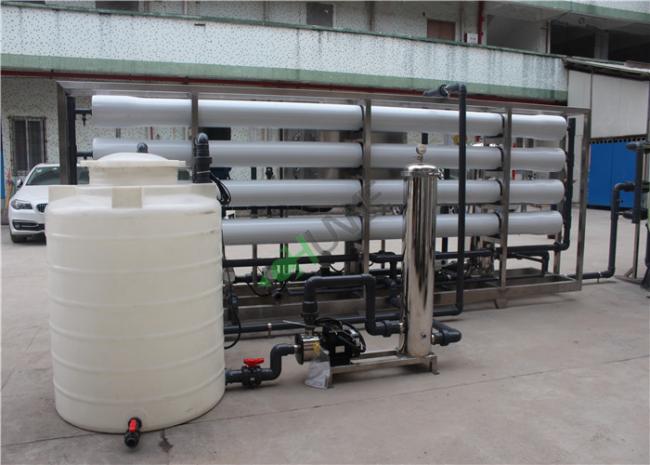

Back Picture of 15000L well water desalination machine:

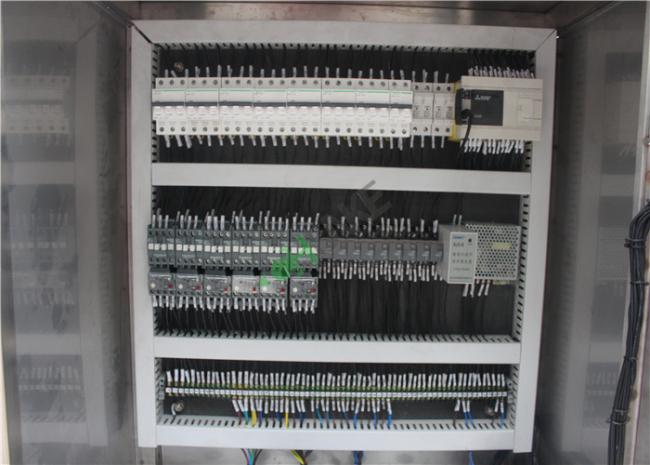

PLC Control box Picture of Picture 15000L well water desalination machine:
