How Does Reverse Osmosis Work?

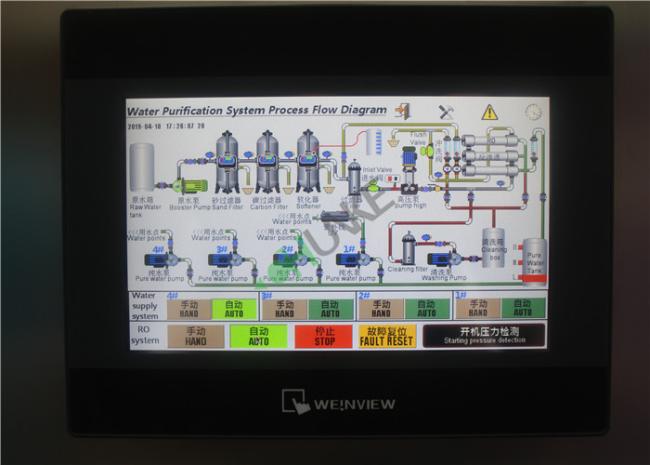

Raw water----booster pump---quartz sand filter---activated carbon filter---water softener (optional)---security filter----high pressure pump---RO system----ozone generator---pure water tank(or bottled water filling production line)

Raw water tank

Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system.

Customer provide for themselves, because big size will result in expensive freight.

Raw water pump or called booster pump

Provide needed pressure for every pretreatment filter

High pressure pump

Provide needed working pressure for RO system, ensure production capacity of pure water.

We can provide CNP pumps or s pumps

Mechanical filter or called quartz sand filter or sand filter

We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.

The Service life is about 2 years.

Activated carbon filter

We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.

The Service life is about 2 years.

Water softener, demineralizer, or called Na+ exchanger

Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling.

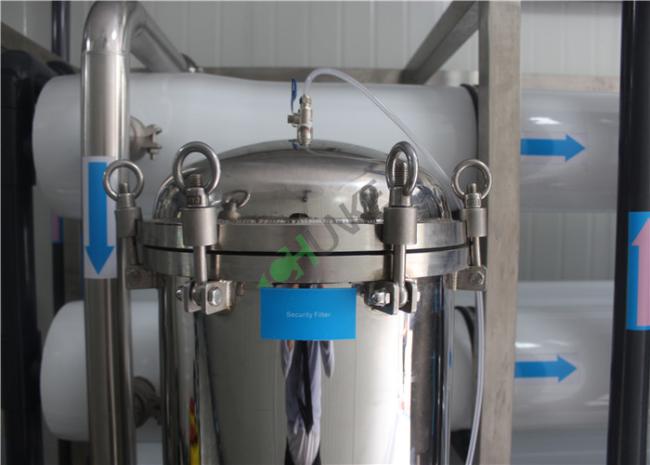

Security filter or pp filter, or called PP sediment filter

prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm

What about the the consumable parts ?

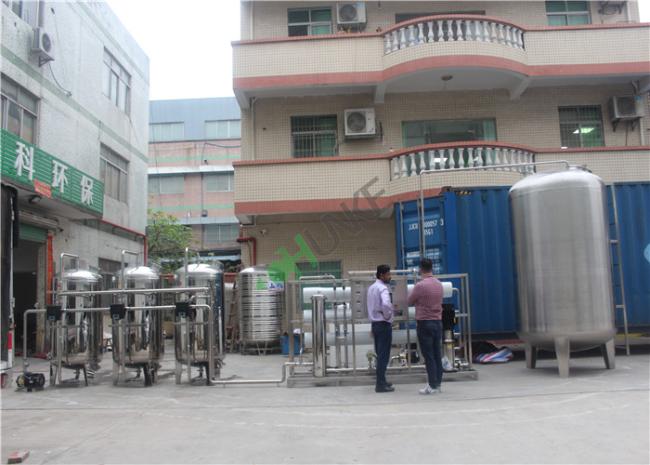

RO water treatment Plant Detail Picture:
