Treatment 2TPH RO System Water Purification Plant Make Drinking Water Use in Pharmaceutical Factory

Flow Chat:

Source water → booster pump → mechanical filter (multi-media filter / quartz sand filter) → activated carbon filter → softening filter (scale inhibition dosing system → PH adjustment system → precision filter (security filter) → one Reverse osmosis master high pressure pump→first stage reverse osmosis unit→pure water tank→second stage reverse osmosis system high pressure pump→secondary reverse osmosis unit→0.22U precision filter→pure water tank

What's two-stage Pure RO System?

The two-stage reverse osmosis equipment is also called second-stage reverse osmosis. The raw water is pressurized and sent to the pretreatment system for coarse filtration. After entering the precision filter, it is filtered and sent to the first-stage reverse osmosis system through the first-stage high-pressure pump. The water is then sent to the secondary reverse osmosis system by a secondary high pressure pump to produce product water, called two-stage reverse osmosis.

Two-stage reverse osmosis main configuration:
Pretreatment system: raw water pump, multi-media filter, activated carbon filter, automatic water softener, pipeline, valve

DRO reverse osmosis system: 1st high pressure pump, 2nd high pressure pump, reverse osmosis membrane, reverse osmosis membrane shell, membrane frame, control system water inlet, solenoid valve, flushing solenoid valve, pressure regulating valve, high pressure switch, low

pressure switch, precision Filters, pipes, valves.

Storage system: level controller, water tank.

Detail of Two-stage RO 2T/H:

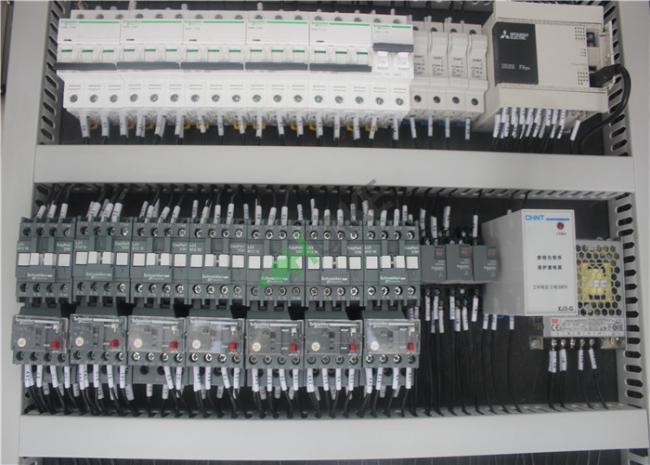

Control box:

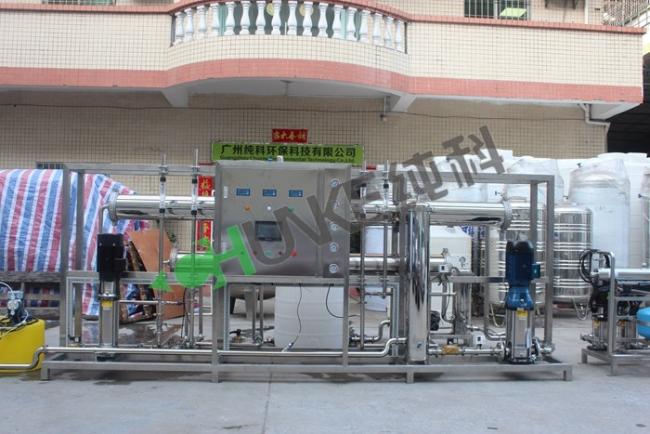

Picture of Two-stage RO 2T/H:

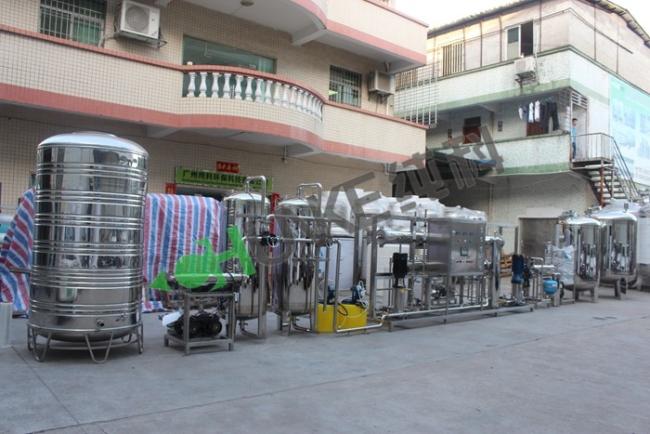

Side Picture of Two-stage RO 2T/H:

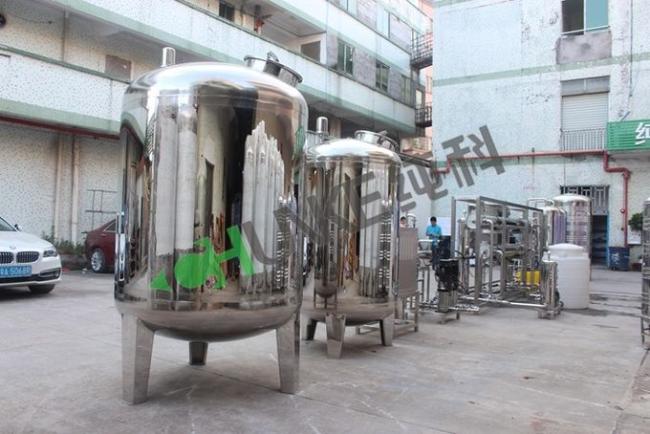

Back Picture of Two-stage RO 2T/H:
