Frp Pre - Treatment Tank 6T Brackish Water Treatment Plant System RO Purification Machine With PLC&CIP
Frp Pre-treatment Tank 6T Brackish Water Treatment Plant System RO Purification Machine with PLC&CIP
6T/H configuration list
| NO. | Device Description | Origin/brand | Quantity |
| 1 | Raw water pump SS304 | CNP | 1 Set |
| 2 | Sand filter | CHUNKE | 1 Set |
| 3 | Carbon filter | CHUNKE | 1 Set |
| A. FRP tank | CHUNKE | ||
| B. Manual Valve | Runixn | 1 Set | |
| 4 | 5μm Cartridge filter | CHUNKE | 1 Set |
| B. 40″×5μm PP filters | China | 7pcs | |
| 5 | High pressure pump | CNP | 1 Set |
| 6 | Reverse osmosis water production: 6m3/h | 1 Set | |
| A. Membrane housing 8040-2core RP | CHUNKE | 3pcs | |
| B. Membrane element RO-8040 | VONTRON | 6pcs | |
| 7 | CIP Washing equipment | ||
| 8 | Pressure gauges | China | 1 Set |
| 9 | Flowmeter | China | |
| A. Water flow meter 20GPM | China | 1 Set | |
| B. Concentrated water flow meter 10GPM | |||
| C. Return flow meter 10GPM | China | 1 Set | |
| 10 | Pipe fittings, valves U-PVC | China | 1 Set |
| 11 | Electronic control system | CHUNKE | 1 Set |
| 12 | Filter Media | China | 1 Set |
| A. Quartz sand | China | 1200KG | |
| B. Activated carbon | China | 300KG | |
Application areas and characteristics of reverse osmosis technology:
1. Under the condition that no phase change occurs at normal temperature, the solute and water can be separated, which is suitable for the separation and concentration of heat sensitive substances, and the energy consumption is lower than that of the phase change separation method.
2. Reverse osmosis membrane separation technology has a wide range of impurity removal.
3. Higher salt rejection rate and water reuse rate can intercept solute with particle size above several nanometers.
4. Using low pressure as the membrane separation power, the separation device is simple, the operation, maintenance and self-control are simple, and the site is safe and sanitary.

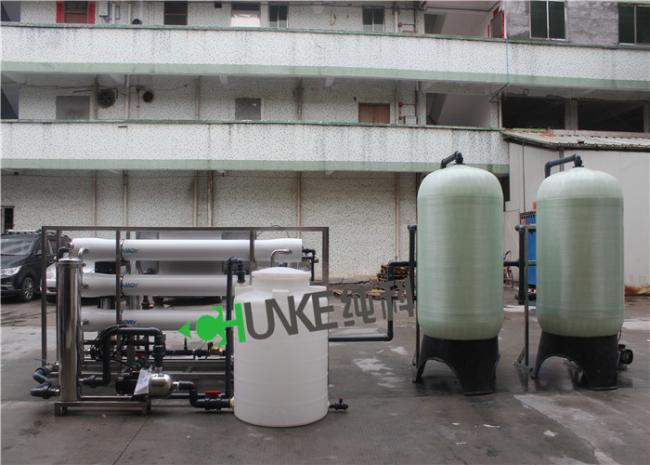

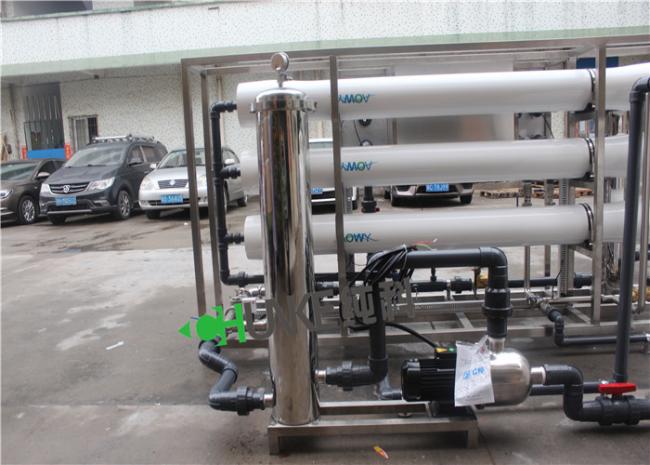

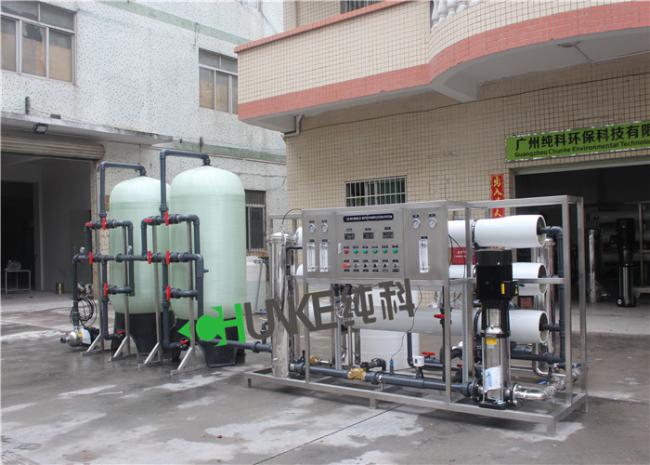

Picture show device detail
