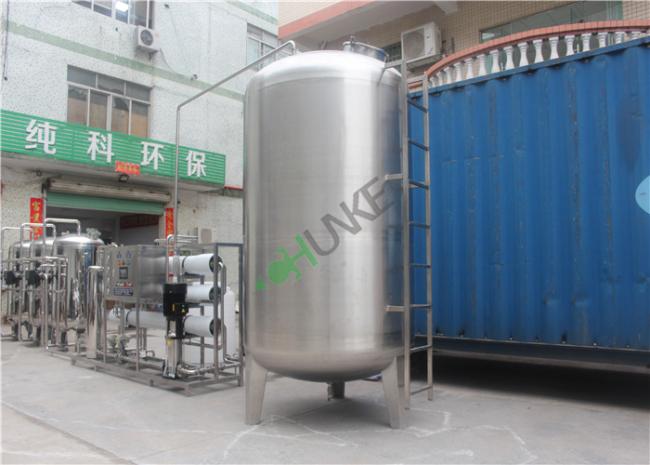

Food Grade Stainless Steel Water Storage Tank For Water Treatment Filter Housing
Food Grade Stainless Steel Water Storage Tank For Water Treatment Filter Housing
The application scope
Stainless steel sterile cistern is widely used in food, medicine, chemical industry and water treatment works, in water treatment process has played precipitation, buffer pressure, prevent water pollution, storage water functions.
Performance characteristics
1. Sterile water tank using new craft technique manufacturing, internal without tensil sinew, box wall without right Angle, have no dirt, easy cleaning, accord with international general recognition of GMP hygiene standards.
2. Material USES SUS304, 316 stainless steel food-grade, strong corrosion resistance.
Sterile water tank size according to water and decide, based on the use of different choice of stainless steel 304, 316 material.

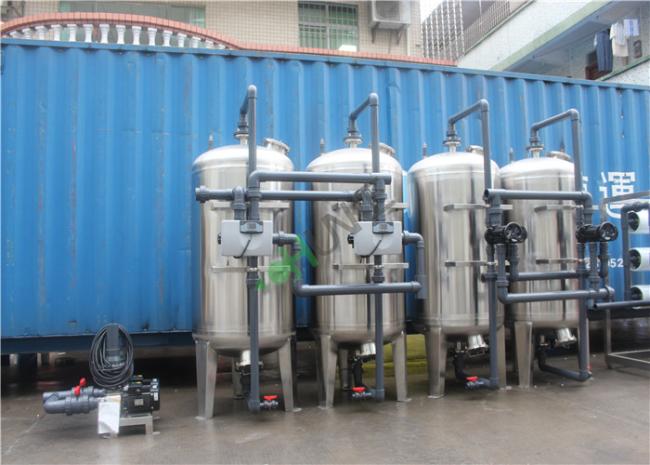

Stainless Steel Sand Filter/Activated Carbon Media Filter Tanks For Water Treatment
Used for quartz sand filters, activated carbon filters, softening filters, manganese sand filters, fluoride removal filter.
Features of the water filter
1.Simple sand filter device structure, operation, backwash more convenient, its operations mainly through regulating four valves, change the water direction changes.
2.Quartz sand filling should be noted: quartz sand interception layer specification 0.5-1.0mm, a height of 700mm or more, the support layerhas two layers, namely, 1-2mm in height packed 150-200mm ,2-3mm in height packed 150 -200mm. Untreated water, its interceptioncapabilities 0.5-1.0Kg/m3, after water lime treatment, the interception capacity of 1.5-2.0 Kg/m3, coagulation treatment for the treated water, the interception capacity of 2.5-3.0 Kg/m3.
Filter technology parameters
| Filter filtration rate: 8 ~ 300m3 / h |
| Backwash time: 8 to 10 |
| Working pressure: ≤ 0.6Mpa |
| Flushing filter head loss: 0.8 |
| Water outlet: 2-5mg/L |
| Water inlet: <10mg/L |
| Water outlet: <2mg/L |
| Design temperature: 5 ~ 4000C |
| Single sand filter Height: 700mm (height for circulating water sand filter 500mm) |

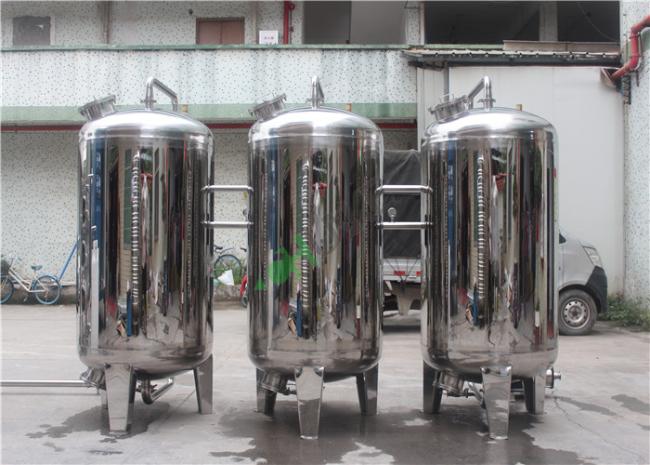

Stainless Steel Filter Housing Detail Picture
