Food Grade Reverse Osmosis Water Storage Tank / Stainless Steel Water Tank
Food Grade Reverse Osmosis Water Storage Tank / Stainless Steel Water Tank
Water tank manufacturing process
The circular stainless steel water tank uses the imported corrugated rolling machine to form a uniform distribution of corrugated reinforcing ribs
on the surface of the plate, which greatly improves the strength and toughness of the plate, so that the water tank is stronger, the welding is
welded by DC high-frequency pulse welding machine, and the joint is formed once. , strong tensile strength, beautiful and sturdy.
Standard Configuration of buffer tank :

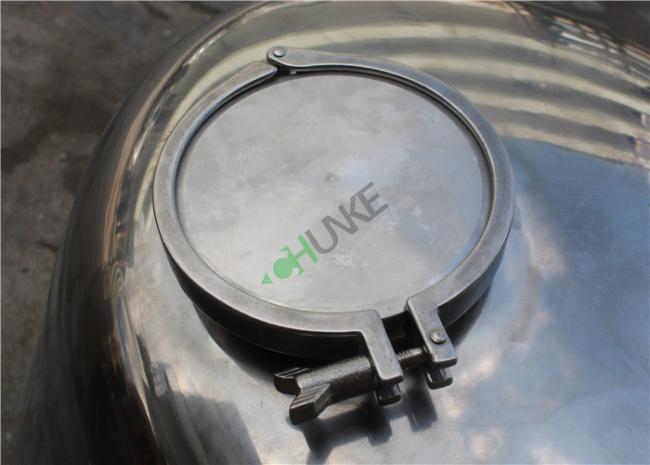

1) Manhole
2) CIP cleaning ball
3) Adjustable triangle bracket
4) Ladder
5) Thermometer
6) Liquid lever meter and controller
7) vacuum intake
8) Dismount Inlet assembly
9) Sanitary aseptic vent filter
10) safety valve (pressure release)
Application of buffer tank :
Food, Beverage, Wine, Beer, Juices, beverage, Pharmaceutical, Biotechnology, Laboratory as well as Chemical Industry ,Painting Industrial and water treatment
Parameters of thebuffer tank
| Effective volume | (D*H) Dimension of tank | (H) Total height | Diameter of inlet& outlet |
| (L) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2250 | 38 |
| 600 | 920*1000 | 2300 | 38 |
| 700 | 990*1000 | 2300 | 38 |
| 800 | 950*1220 | 2500 | 38 |
| 900 | 1010*1220 | 2500 | 38 |
| 1000 | 1060*1500 | 2850 | 51 |
| 1500 | 1160*1500 | 2850 | 51 |
| 2000 | 1340*1500 | 2900 | 51 |
| 3000 | 1410*2000 | 3400 | 51 |
| 4000 | 1620*2000 | 3450 | 51 |
| 5000 | 1810*2000 | 3500 | 51 |
| 6000 | 1980*2000 | 3550 | 51 |
| 7000 | 1930*2440 | 4000 | 51 |
| 8000 | 2060*2440 | 4000 | 51 |
| 9000 | 2180*2440 | 4050 | 51 |
| 10000 | 2300*2440 | 4050 | 51 |
| 12000 | 2270*3000 | 4600 | 51 |
| 15000 | 2530*3000 | 4700 | 51 |
| 20000 | 2640*3660 | 5400 | 51 |

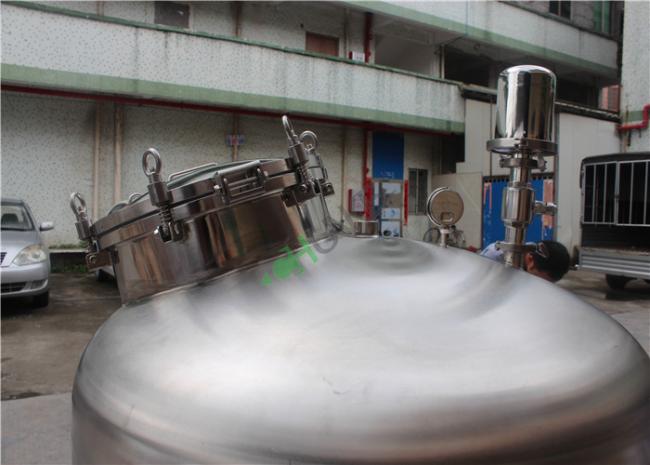

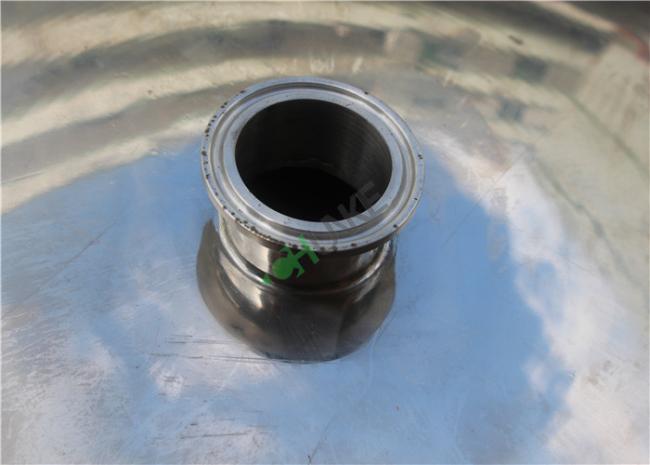

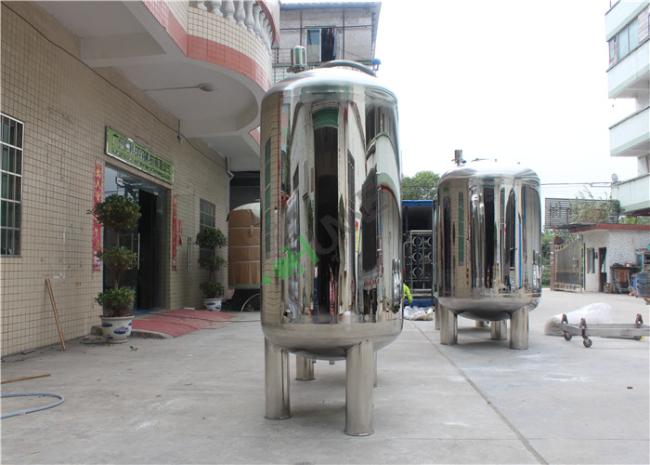

Water tank pictures :
